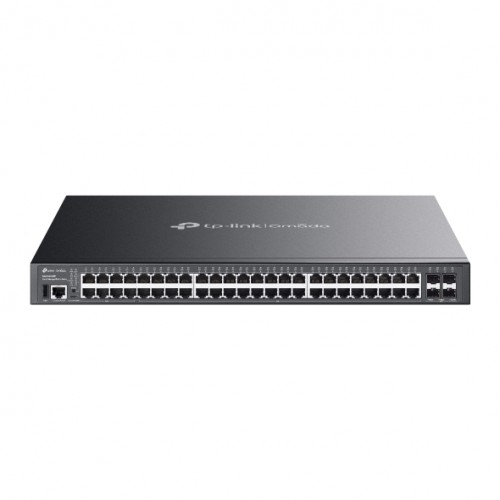

The Omada SG5452XMPP is a reliable entry‑level L3 managed PoE++ switch built for the access layer. It supports advanced L3 routing, high‑speed 10 Gbps connectivity, and physical stacking. The switch features a 770 W PoE budget, 48 Gigabit RJ45 ports comprising 8 PoE++ and 40 PoE+ ports, along with four 10 Gbps SFP+ uplinks. With centralised management through the Omada platform, robust security, and comprehensive management capabilities, the SG5452XMPP delivers a dependable and scalable networking solution for SMEs and ISPs.
Features
- 8× Gigabit 802.3af/at/bt PoE++ ports (Max 90W per port)
- 40× Gigabit 802.3af/at PoE+ ports (Max 30W per port)
- 4× 10 Gbps SFP+ slots
- Up to 770W total PoE budget
- Physical stacking up to 4 units for built-in redundancy and performance
- L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
- Security strategies: ACL, Port Security, DoS Defend, 802.1X
- ERPS supports rapid protection and recovery in a ring topology
- Centralised cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
Kit Contents
- SG5452XMPP Switch
- Power Cord
- Console Cable
- Rackmount Kits
- Rubber Feet
- Installation Guide
Technical
| Hardware features | |
|---|---|
| Interface | 48 × 10/100/1000 Mbps RJ45 ports (8 × PoE++, 40 × PoE+) 4 × 1/10 Gbps SFP+ slots 1 × USB 2.0 port 1 × RJ45 console port 1 × USB Type‑C console port |
| Fan quantity | 3 |
| Power supply | 100–240 V~, 50/60 Hz |
| PoE ports (RJ45) | Standard: IEEE 802.3af / 802.3at / 802.3bt compliant PoE++ ports: ports 1–8, up to 90 W per port PoE+ ports: ports 9–48, up to 30 W per port Total PoE power budget: 770 W Fast PoE Perpetual PoE |
| Dimensions (W × D × H) | 440 × 330 × 44 mm / 17.3 × 13.0 × 1.7 in |
| Mounting | Rack mountable |
| Max power consumption | 893.6 W (220 V / 50 Hz, with 770 W PoE load at 25°C) 942.7 W (110 V / 60 Hz, with 770 W PoE load at 25°C) |
| Max heat dissipation | 3047.18 BTU/hr (220 V / 50 Hz, with 770 W PoE load at 25°C) 3214.61 BTU/hr (110 V / 60 Hz, with 770 W PoE load at 25°C) |
| Performance | |
| Switching capacity | 176 Gbps per unit |
| Stacking | Stacking number: 4 Stacking ports: 10G SFP+ (uplink ports usable as stacking ports) Stack bandwidth: up to 40 Gbps (maximum 2 stacking ports) |
| Packet forwarding rate | 130.94 Mpps |
| MAC address table | 16 K |
| Packet buffer memory | 12 Mbit |
| Jumbo frame | 9 KB |
| Software features | |
| Quality of service | Class of service with 8 priority queues Port priority, IEEE 802.1p priority, DSCP priority Minimum bandwidth per queue Scheduling modes: SP, WRR, SP + WRR Rate limiting and storm control Voice VLAN and QoS remarking |
| L3 features | IP interfaces: IPv4 (128), IPv6 (128) Static routing: IPv4 (512), IPv6 (128) RIP v1/v2, OSPF v2/v3 Static ARP (512), dynamic ARP (2000) DHCP server and relay |
| L2 and L2+ features | Link aggregation Spanning tree protocol Port‑based and VLAN‑based loopback detection 802.3x flow control ERPS, RSPAN IGMP and MLD snooping Multicast VLAN registration |
| VLAN | 802.1Q VLAN (up to 4K VLAN groups) MAC VLAN, multicast VLAN, management VLAN QinQ, GVRP, protocol VLAN Voice VLAN, private VLAN |
| Security | Port isolation and CPU protection ARP inspection and DHCP snooping IPv4 and IPv6 source guard 802.1X authentication (port and MAC based) RADIUS and TACACS+ HTTPS (TLS 1.2) and SSHv2 IP, port and MAC based access control |
| Management features | |
| Omada app | Yes (requires Omada controller) |
| Centralised management | Omada cloud‑based controller Omada hardware controller Omada software controller |
| Zero‑touch provisioning | Yes (via Omada cloud‑based controller) |
| Management tools | Web‑based GUI CLI (console and telnet) SNMP v1 / v2c / v3, RMON LLDP / LLDP‑MED Dual image and dual configuration Cable diagnostics, system logs, SNTP, IEEE 802.3az EEE |
| Others | |
| Package contents | SG5452XMPP switch Power cord Console cable Rackmount kits Rubber feet Quick installation guide |
| System requirements | Windows, macOS, NetWare, UNIX or Linux |
| Environment | Operating temperature: -5°C to 40°C / 23°F to 104°F Storage temperature: -40°C to 70°C / -40°F to 158°F Operating humidity: 10% to 90% RH (non‑condensing) Storage humidity: 5% to 90% RH (non‑condensing) |
