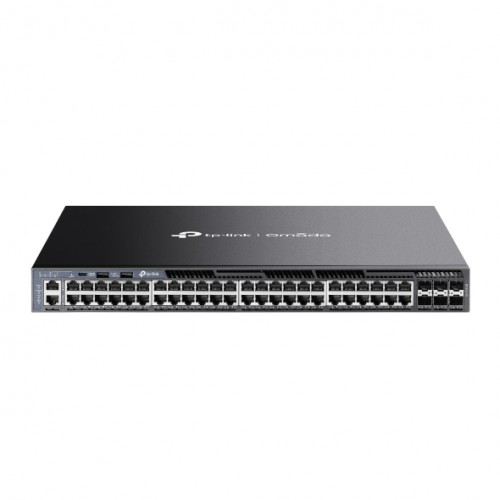

1.0_Omada_Enterprise_L3_Switch-01_normal_20231110060646b-500x500.jpg "Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10GE SFP+ Slots")
Click Image for Gallery
1.0_Omada_Enterprise_L3_Switch-02_normal_20231110060717d-500x500.jpg "Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10GE SFP+ Slots")
1.0_Omada_Enterprise_L3_Switch-03_normal_20240109112856x-500x500.jpg "Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10GE SFP+ Slots")
1.0_Omada_Enterprise_L3_Switch-04_normal_20231110060754x-500x500.jpg "Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10GE SFP+ Slots")
1.0_Omada_Enterprise_L3_Switch-05-1_normal_20231110095051g-500x500.jpg "Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10GE SFP+ Slots")
The Omada SG6654X is a Layer 3 managed switch built for convergence‑layer networking in SMB, enterprise, and ISP environments, offering 10 Gbps wired performance, physical stacking, and internal redundant power supplies for high availability. It features 48 Gigabit RJ45 ports, 6× 10 Gbps SFP+ slots, and supports stacking of up to four units, delivering up to 216 Gbps switching capacity per unit and 864 Gbps when stacked. Advanced Layer 3 capabilities include Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server and Relay, and PIM‑DM multicast routing, with ERPS for rapid ring‑topology recovery. Comprehensive security features such as IPv4/IPv6 ACLs, Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and SSH are included, alongside Omada SDN cloud management, Zero‑Touch Provisioning, and flexible local management via web GUI or CLI, protected by SSL/SSH, with SNMP and RMON monitoring support.
Features
- 48× Gigabit RJ45 ports and 6× 10 Gbps SFP+ slots
- 216 Gbps switching capacity per unit
- Physical Stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two internal fixed power supplies, VRRP, and ERPS
- Centralised cloud management via Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
Kit Contents
- SG6654X Switch
- 2× Power Cords
- RJ45 Console Cable
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
Manuals & Datasheet
Technical
| Hardware features | |
|---|---|
| Interface | 48 × 10/100/1000 Mbps RJ45 ports 6 × 10G SFP+ slots 2 × USB 2.0 ports 1 × RJ45 console port 1 × USB Type‑C console port 1 × RJ45 management port |
| Fan quantity | Four internal fixed fans |
| Power supply | Two internal fixed power supply modules (100–240 V AC, 50/60 Hz) |
| Dimensions (W × D × H) | 440 × 380 × 44 mm / 17.3 × 15.0 × 1.7 in |
| Mounting | Rack mountable |
| Max power consumption | 39.8 W (220 V / 50 Hz) |
| Max heat dissipation | 135.81 BTU/hr (220 V / 50 Hz) |
| Performance | |
| Switching capacity | 216 Gbps per unit |
| Stacking | Stacking number: 4 Stacking ports: 10G SFP+ (all uplink ports can be used) Stack bandwidth: up to 120 Gbps (6 stack ports) |
| Packet forwarding rate | 160.7 Mpps |
| MAC address table | 32 K |
| Packet buffer memory | 3 MB |
| Jumbo frame | 9 KB |
| Software features | |
| Quality of service | Class of service with 8 priority queues Port priority, IEEE 802.1p priority, DSCP priority Minimum bandwidth per queue Scheduling modes: SP, WRR, SP + WRR Rate limiting and storm control Voice VLAN and QoS remarking |
| L3 features | IP interfaces: IPv4 (256), IPv6 (256) Static routing: IPv4 (1024), IPv6 (512) RIP v1/v2, OSPF v2/v3 VRRP v2/v3 (64 groups) ECMP (256 entries, 32 next hops) Static ARP (512), dynamic ARP (7680) DHCP server and relay |
| L2 and L2+ features | Link aggregation Spanning tree protocol Port‑based and VLAN‑based loopback detection 802.3x flow control IGMP and MLD snooping ERPS, RSPAN PIM‑DM (IPv4) |
| VLAN | 802.1Q VLAN (up to 4K VLAN groups) MAC VLAN, multicast VLAN, management VLAN QinQ, GVRP, protocol VLAN Voice VLAN, private VLAN |
| Security | Port isolation and CPU protection ARP inspection and DHCP snooping IPv4 and IPv6 source guard 802.1X authentication (port and MAC based) RADIUS and TACACS+ HTTPS (TLS 1.2) and SSHv2 IP, port and MAC based access control |
| Management features | |
| Omada app | Yes (requires Omada controller) |
| Centralised management | Omada cloud‑based controller Omada hardware controller Omada software controller |
| Zero‑touch provisioning | Yes (via Omada cloud‑based controller) |
| Management tools | Web‑based GUI CLI (console and telnet) SNMP v1 / v2c / v3, RMON LLDP / LLDP‑MED Dual image and dual configuration Cable diagnostics, system logs, SNTP, EEE |
| Others | |
| Package contents | SG6654X switch 2 × power cords RJ45 console cable Quick installation guide Rackmount kit Rubber feet |
| System requirements | Windows, macOS, NetWare, UNIX or Linux |
| Environment | Operating temperature: -5°C to 50°C at 300 m -5°C to 45°C at 2000 m -5°C to 40°C at 3000 m Storage temperature: -40°C to 70°C Operating humidity: 10% to 90% RH (non‑condensing) Storage humidity: 5% to 90% RH (non‑condensing) |
