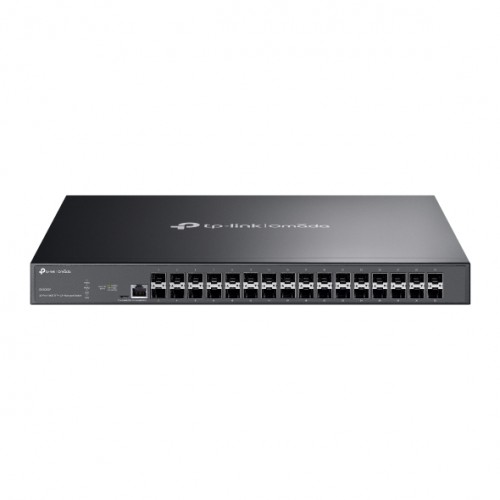

The Omada SX3032F is a high‑capacity 10‑Gigabit aggregation switch designed for enterprise and campus core or aggregation layers, delivering 32 x 10G SFP+ ports and a 640 Gbps switching capacity to support large‑scale fibre networks and heavy east‑west traffic. Built for resilience, it features dual internal redundant power supplies and a robust rack‑mountable metal chassis for dependable, always‑on operation. The switch supports a full Layer 2+ feature set, including static routing, VLANs, ACLs, enterprise QoS, IGMP snooping, OAM, DDM and ERPS for fast ring protection and recovery. Fully integrated with Omada SDN, the SX3032F enables centralised cloud management via controller, web interface or Omada app, while also supporting standalone management through web GUI, CLI, SNMP and RMON for flexible deployment and operational control.
Features
- 32× 10 Gbps SFP+ slots
- 640 Gbps switching capacity
- Two internal fixed power supply modules back each other up
- Centralised cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Kit Contents
- SX3032F Switch
- 2× Power Cords
- Installation Guide
- Rackmount Kit
- Rubber Feet
Technical
| Hardware features | |
|---|---|
| Interface | 32 × 1 / 10 Gbps SFP+ slots 1 × RJ45 console port 1 × Micro‑USB console port |
| Fan quantity | 2 internal fixed fans |
| Physical security lock | Yes |
| Power supply | 1+1 redundant internal power supply 100–240 V AC~, 50/60 Hz |
| Dimensions (W × D × H) | 440 × 330 × 44 mm / 17.3 × 13.0 × 1.7 in |
| Mounting | Rack mountable |
| Max power consumption | 49.4 W (220 V / 50 Hz) |
| Performance | |
| Switching capacity | 640 Gbps |
| Packet forwarding rate | 240 Mpps |
| MAC address table | 32 K |
| Packet buffer memory | 24 Mbit |
| Jumbo frame | 9 KB |
| Software features | |
| Quality of service | 8 priority queues IEEE 802.1p CoS and DSCP priority Queue scheduling: SP, WRR, SP + WRR Port‑ and flow‑based rate limiting QoS remarking |
| L2 and L2+ features | IPv4 and IPv6 interfaces (up to 128) Static routing (48 routes) Static and dynamic ARP, proxy ARP, gratuitous ARP DHCP server and relay, DHCP L2 relay Link aggregation and spanning tree protocol Loopback detection and 802.3x flow control Port mirroring |
| L2 multicast | IGMP snooping and authentication MLD snooping Multicast VLAN registration Multicast filtering |
| VLAN | 802.1Q VLAN (up to 4K VLAN groups) MAC VLAN, protocol VLAN QinQ and voice VLAN |
| Access control list | MAC, IP, IPv6 and combined ACLs Time‑based and packet‑content ACLs Policy actions: mirror, redirect, rate limit, QoS remark |
| Security | IP‑MAC‑port binding and DHCP snooping ARP inspection and IPv4 / IPv6 source guard DoS protection and storm control 802.1X authentication with RADIUS and TACACS+ HTTPS (TLS 1.2) and SSH management Port isolation and access control |
| IPv6 support | Dual IPv4 / IPv6 stack Static IPv6 routing and neighbor discovery IPv6 ACL and IPv6 applications |
| MIB support | Standard MIBs including IF‑MIB, bridge MIB, RMON and RADIUS MIBs Vendor private MIB support |
| Management features | |
| Omada app | Yes (requires Omada controller) |
| Centralised management | Omada cloud‑based controller Omada hardware controller Omada software controller |
| Zero‑touch provisioning | Yes (via Omada cloud‑based controller) |
| Management tools | Web‑based GUI CLI through console and telnet SNMP v1 / v2c / v3 with RMON LLDP / LLDP‑MED Dual image and dual configuration CPU monitoring, SNTP and system logs |
| Others | |
| Certification | CE, FCC, RoHS |
| Package contents | SX3032F switch 2 × power cords Quick installation guide Rackmount kit Rubber feet |
| System requirements | Windows, macOS, NetWare, UNIX or Linux |
| Environment | Operating temperature: -5°C to 45°C / 23°F to 113°F Storage temperature: -40°C to 70°C / -40°F to 158°F Operating humidity: 10% to 90% RH (non‑condensing) Storage humidity: 5% to 90% RH (non‑condensing) |
