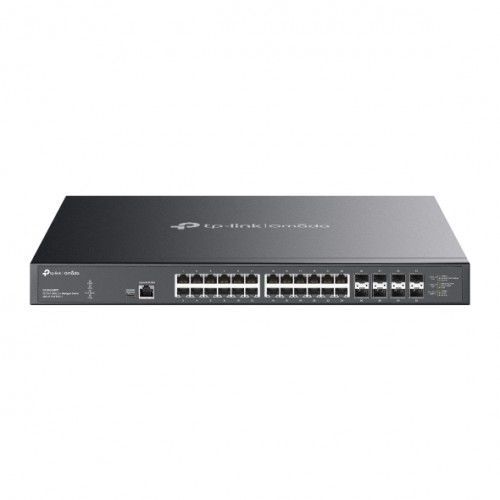

The Omada SX3832MPP is a high‑performance Layer 2+ managed switch built for modern enterprise access networks. Featuring 24 multi‑gigabit 10 Gbps PoE++ ports, 8× 10 Gbps SFP+ uplinks, and a 770 W PoE budget, it is ideal for powering and aggregating Wi‑Fi 6E/7 access points, IP cameras, and other high‑demand devices. With advanced traffic control, rapid fault recovery, and centralised Omada SDN management, the SX3832MPP delivers a scalable and resilient foundation for high‑density enterprise deployments.
Features
- 24× 1/2.5/5/10 Gbps RJ45 PoE++ ports
- 8× 1/10 Gbps SFP+ slots
- 770 W total PoE budget*, up to 90 W PoE out per port
- Centralised cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Kit Contents
- SX3832MPP Switch
- Power Cord
- Console Cable
- Installation Guide
- Rackmount Kit
- Rubber Feet
Manuals & Datasheet
Technical
| Hardware features | |
|---|---|
| Interface | 24 × 100 Mbps / 1 Gbps / 2.5 Gbps / 5 Gbps / 10 Gbps PoE++ RJ45 ports (auto‑negotiation, auto MDI/MDIX) 8 × 1 / 10 G SFP+ slots 1 × RJ45 console port 1 × USB Type‑C console port |
| Fan quantity | 4 |
| Physical security lock | Yes |
| Power supply | 100–240 V AC~, 50/60 Hz |
| PoE ports (RJ45) | Standard: IEEE 802.3bt / 802.3at / 802.3af compliant PoE++ ports: 24 ports, up to 90 W per port Total PoE power budget: 770 W |
| Dimensions (W × D × H) | 440 × 330 × 44 mm / 17.3 × 13.0 × 1.7 in |
| Mounting | Rack mountable |
| Max power consumption | 1010.2 W (110 V / 60 Hz with 770 W PoE load) 953.7 W (220 V / 50 Hz with 770 W PoE load) |
| Max heat dissipation | 3444.7 BTU/hr (110 V / 60 Hz with 770 W PoE load) 3252.2 BTU/hr (220 V / 50 Hz with 770 W PoE load) |
| Performance | |
| Switching capacity | 640 Gbps |
| Packet forwarding rate | 240 Mpps |
| MAC address table | 32 K |
| Packet buffer memory | 24 Mbit |
| Jumbo frame | 9 KB |
| Software features | |
| Quality of service | 8 priority queues IEEE 802.1p CoS and DSCP priority Queue scheduling: SP, WRR, SP + WRR Port‑ and flow‑based rate limiting QoS remarking (802.1p, DSCP) |
| L2 and L2+ features | IPv4 and IPv6 interfaces (up to 128) Static routing (IPv4 and IPv6) Static and dynamic ARP, proxy ARP, gratuitous ARP DHCP server and relay, DHCP L2 relay Link aggregation, spanning tree protocol Loopback detection, 802.3x flow control Port mirroring |
| L2 multicast | IGMP and MLD snooping IGMP authentication Multicast VLAN registration Multicast filtering |
| VLAN | Up to 4K VLAN groups (802.1Q) MAC VLAN, protocol VLAN, private VLAN QinQ, GVRP, voice VLAN |
| Access control list | MAC, IP, IPv6 and combined ACLs Time‑based ACLs Policy actions: mirroring, redirect, rate limit, QoS remark |
| Security | IP‑MAC‑port binding and DHCP snooping ARP inspection and source guard (IPv4 and IPv6) DoS protection and broadcast storm control 802.1X authentication, RADIUS, TACACS+ HTTPS (TLS 1.2) and SSH management Port isolation and access control |
| IPv6 support | IPv6 routing and interfaces Neighbor discovery and MLD snooping IPv6 ACL and IPv6 applications |
| MIB support | Standard MIBs including MIB II, IF‑MIB, bridge MIB, RMON and RADIUS MIBs Support for vendor private MIBs |
| Management features | |
| Omada app | Yes (requires Omada controller) |
| Centralised management | Omada cloud‑based controller Omada hardware controller Omada software controller |
| Zero‑touch provisioning | Yes (via Omada cloud‑based controller) |
| Management tools | Web‑based GUI CLI (console and telnet) SNMP v1 / v2c / v3 with RMON LLDP / LLDP‑MED Dual image and dual configuration CPU monitoring, cable diagnostics, SNTP, EEE |
| Others | |
| Certification | CE, FCC, RoHS |
| Package contents | SX3832MPP switch Power cord Console cable Rackmount kit Rubber feet Quick installation guide |
| System requirements | Windows, macOS, NetWare, UNIX or Linux |
| Environment | Operating temperature: -5°C to 45°C / 23°F to 113°F Storage temperature: -40°C to 70°C / -40°F to 158°F Operating humidity: 10% to 90% RH (non‑condensing) Storage humidity: 5% to 90% RH (non‑condensing) |
