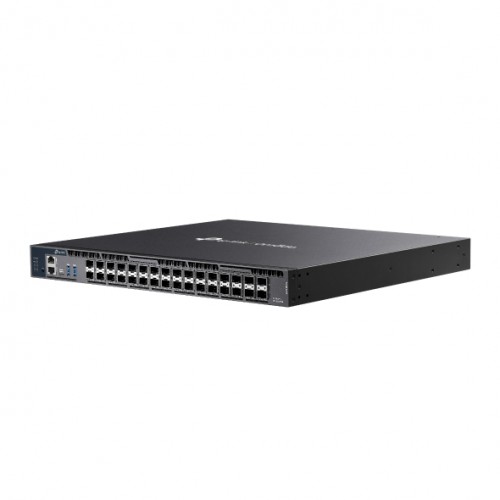

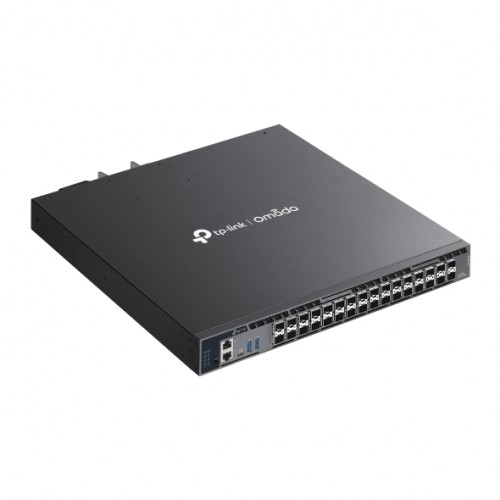

The TP‑Link SX6632YF Omada 26‑Port 10G Stackable L3 Managed Aggregation Switch delivers high‑performance connectivity and advanced flexibility for growing SMB, enterprise, and ISP networks. Designed to meet convergence‑layer demands, it offers full Layer 3 routing, ultra‑fast wired speeds with 26× 10 Gbps SFP+ ports and 6× 25 Gbps SFP28 uplinks, physical stacking, and redundant power supplies for built‑in resilience. Integrated security features and comprehensive management tools ensure reliable, scalable, and easy network operation while maintaining high availability and performance.
Features
- 26× 10G SFP+ slots and 6× 25G SFP28 slots
- 820 Gbps switching capacity
- Physical Stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two field-replaceable power supplies, VRRP, and ERPS
- Centralised cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
Kit Contents
- SX6632YF Switch
- Power Cord
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
Manuals & Datasheet
Technical
| Hardware features | |
|---|---|

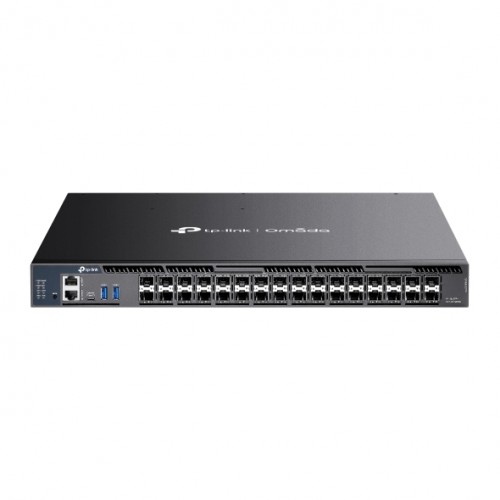

| Interface | 6 × 10/25G SFP28 slots 26 × 1/10G SFP+ slots 2 × USB 3.0 ports 1 × RJ45 console port 1 × USB Type‑C console port 1 × RJ45 management port |
| Fan quantity | Four field‑replaceable and hot‑swappable fans (N+1 redundant) |
| Physical security lock | Yes |

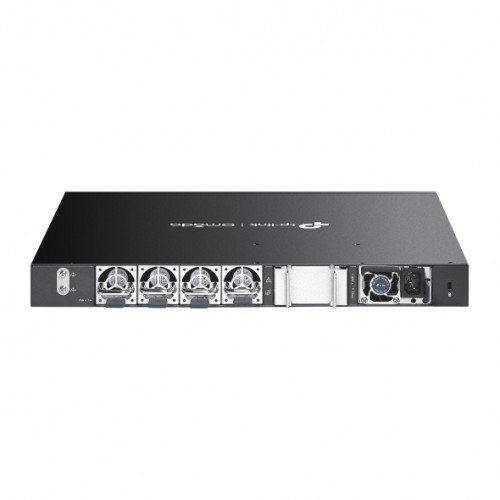

| Power supply | Two field‑replaceable and hot‑swappable redundant power supplies 100–240 V AC, 50/60 Hz Ships with one PSM550‑AC module (second PSU sold separately) |
| Max power consumption | 86.7 W (110 V / 60 Hz) |
| Max heat dissipation | 295.85 BTU/hr (110 V / 60 Hz) |
| Dimensions (W × D × H) | 440 × 380 × 44 mm / 17.3 × 15.0 × 1.7 in |
| Mounting | Rack mountable |
| Performance | |
| Switching capacity | 820 Gbps |
| Stacking | Stacking number: 8 Stacking port: 25G SFP28 Stack bandwidth: up to 300 Gbps (6 stack ports) |
| Packet forwarding rate | 610.1 Mpps |
| MAC address table | 128 K |
| Packet buffer memory | 8 MB |
| Jumbo frame | 9 KB |
| Software features | |
| Quality of service | Class of service with 8 priority queues Port priority, IEEE 802.1p, DSCP priority Queue minimum bandwidth Schedule modes: SP, WRR, SP+WRR Rate limiting and storm control QoS remark (802.1p, DSCP) |
| L3 features | IP interfaces: IPv4 (256), IPv6 (256) Static routing: IPv4 (2048), IPv6 (1024) RIP v1/v2, RIPng OSPF v2/v3 VRRP v2/v3 (64 groups) ECMP (256 entries, 32 nexthops) Static ARP (1024), Dynamic ARP (24,576) DHCP server and relay |
| L2 & L2+ features | Static and LACP link aggregation (up to 120 LAGs) STP, RSTP, MSTP (up to 64 MSTIs) Loopback detection (port and VLAN based) 802.3x flow control IGMP (up to 4,093 groups), ERPS (64 rings) Port and CPU mirroring, RSPAN MAC filtering and virtual MAC |
| VLAN | 802.1Q VLAN, up to 4K VLAN groups MAC VLAN, multicast VLAN, management VLAN QinQ, GVRP, protocol VLAN Voice VLAN, private VLAN |
| Security | Port isolation, CPU defend, DoS defend ARP inspection, DHCP snooping IPv4 and IPv6 source guard 802.1X, RADIUS, TACACS+ HTTPS (TLS 1.2), SSHv2 IP, port and MAC based access control |
| Management features | |
| Omada app | Yes (requires Omada controller) |
| Centralised management | Omada cloud‑based controller Omada hardware controller Omada software controller |
| Zero‑touch provisioning | Yes (via Omada cloud‑based controller) |
| Management tools | Web‑based GUI CLI (console, telnet) SNMP v1/v2c/v3, RMON LLDP / LLDP‑MED Dual image and dual configuration Cable diagnostics, system logs, SNTP |
| Others | |
| Package contents | SX6632YF switch Power cord Quick installation guide Rackmount kit Rubber feet |
| System requirements | Windows, macOS, NetWare, UNIX or Linux |
| Environment | Operating temperature: -5°C to 50°C at 300 m -5°C to 45°C at 2000 m -5°C to 40°C at 3000 m Storage temperature: -40°C to 70°C Operating humidity: 10% to 90% RH (non‑condensing) Storage humidity: 5% to 90% RH (non‑condensing) |
