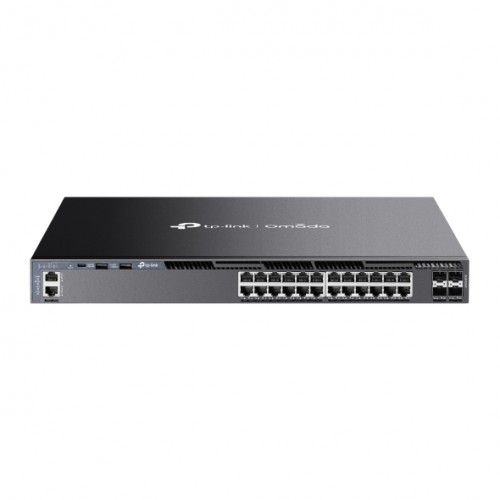

1.0_Omada_Enterprise_L3_Switch-01_normal_20231110111244q-500x500.jpg "Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE SFP+ Slots")
Click Image for Gallery
1.0_Omada_Enterprise_L3_Switch-05_normal_20231110111333v-500x500.jpg "Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE SFP+ Slots")
1.0_Omada_Enterprise_L3_Switch-04_normal_20231110111322s-500x500.jpg "Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE SFP+ Slots")
1.0_Omada_Enterprise_L3_Switch-03_normal_20231110111311r-500x500.jpg "Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE SFP+ Slots")
1.0_Omada_Enterprise_L3_Switch-02_normal_20231110111256i-500x500.jpg "Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE SFP+ Slots")
The Omada SG6428X is a high‑performance L3 managed switch designed for the aggregation and convergence layer. It delivers advanced L3 routing, ultra‑fast 10 Gbps connectivity, physical stacking, and support for redundant power supplies. The switch provides 24 Gigabit RJ45 ports, four 10 Gbps SFP+ uplinks, and centralised management through the Omada platform. With robust security features and comprehensive management capabilities, the SG6428X is a reliable and scalable networking solution for SMBs, enterprises, and ISPs.
Features
- 24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
- 128 Gbps switching capacity per unit
- Physical stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two internal fixed power supplies, VRRP, and ERPS
- Centralised cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
Kit Contents
- SG6428X Switch
- 2× Power Cords
- RJ45 Console Cable
- 1x Installation Guide
- Rackmount Kit
- Rubber Feet
Manuals & Datasheet
Technical
| Hardware features | |
|---|---|
| Interface | 24 × 10/100/1000 Mbps RJ45 ports 4 × 10G SFP+ slots 2 × USB 2.0 ports 1 × RJ45 console port 1 × USB Type‑C console port 1 × RJ45 management port |
| Fan quantity | Four internal fixed fans |
| Power supply | Two internal fixed power supply modules (100–240 V AC, 50/60 Hz) |
| Dimensions (W × D × H) | 440 × 380 × 44 mm / 17.3 × 15.0 × 1.7 in |
| Mounting | Rack mountable |
| Max power consumption | 28.4 W (220 V / 50 Hz) |
| Max heat dissipation | 96.91 BTU/hr (220 V / 50 Hz) |
| Performance | |
| Switching capacity | 128 Gbps per unit |
| Stacking | Stacking number: 8 Stacking ports: 10G SFP+ (all uplink ports can be used) Stack bandwidth: up to 80 Gbps (4 stack ports) |
| Packet forwarding rate | 95.2 Mpps |
| MAC address table | 32 K |
| Packet buffer memory | 3 MB |
| Jumbo frame | 9 KB |
| Software features | |
| Quality of service | Class of service with 8 priority queues Port priority, IEEE 802.1p priority, DSCP priority Minimum bandwidth per queue Scheduling modes: SP, WRR, SP + WRR Rate limiting and storm control Voice VLAN and QoS remarking |
| L3 features | IP interfaces: IPv4 (256), IPv6 (256) Static routing: IPv4 (1024), IPv6 (512) RIP v1/v2, OSPF v2/v3 VRRP v2/v3 (64 groups) ECMP (256 entries, 32 next hops) Static ARP (512), dynamic ARP (7680) DHCP server and relay |
| L2 and L2+ features | Link aggregation Spanning tree protocol Port‑based and VLAN‑based loopback detection 802.3x flow control IGMP and MLD snooping ERPS, RSPAN PIM‑DM (IPv4) |
| VLAN | 802.1Q VLAN (up to 4K VLAN groups) MAC VLAN, multicast VLAN, management VLAN QinQ, GVRP, protocol VLAN Voice VLAN, private VLAN |
| Security | Port isolation and CPU protection ARP inspection and DHCP snooping IPv4 and IPv6 source guard 802.1X authentication (port and MAC based) RADIUS and TACACS+ HTTPS (TLS 1.2) and SSHv2 IP, port and MAC based access control |
| Management features | |
| Omada app | Yes (requires Omada controller) |
| Centralised management | Omada cloud‑based controller Omada hardware controller Omada software controller |
| Zero‑touch provisioning | Yes (via Omada cloud‑based controller) |
| Management tools | Web‑based GUI CLI (console and telnet) SNMP v1 / v2c / v3, RMON LLDP / LLDP‑MED Dual image and dual configuration Cable diagnostics, system logs, SNTP, EEE |
| Others | |
| Package contents | SG6428X switch 2 × power cords RJ45 console cable Quick installation guide Rackmount kit Rubber feet |
| System requirements | Windows, macOS, NetWare, UNIX or Linux |
| Environment | Operating temperature: -5°C to 50°C at 300 m -5°C to 45°C at 2000 m -5°C to 40°C at 3000 m Storage temperature: -40°C to 70°C Operating humidity: 10% to 90% RH (non‑condensing) Storage humidity: 5% to 90% RH (non‑condensing) |
