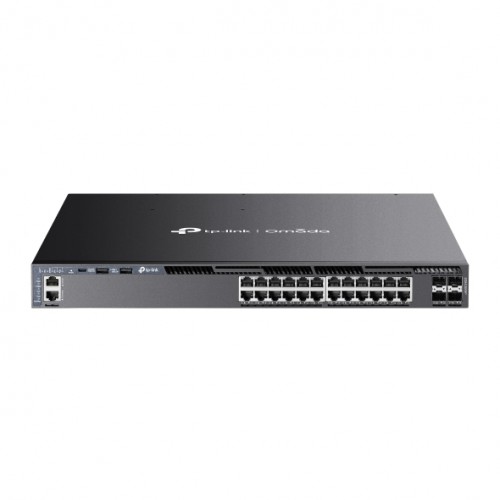

1.0_Omada_Enterprise_L3_Switch-01_normal_20231110114409r-500x500.jpg "Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots")
Click Image for Gallery
1.0_Omada_Enterprise_L3_Switch-05_normal_20231110114458z-500x500.jpg "Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots")
1.0_Omada_Enterprise_L3_Switch-04_normal_20231110114445o-500x500.jpg "Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots")
1.0_Omada_Enterprise_L3_Switch-03_normal_20231110114422h-500x500.jpg "Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots")
1.0_Omada_Enterprise_L3_Switch-02_normal_20231110114433n-500x500.jpg "Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots")
The Omada SG6428XHP is a versatile Layer 3 managed PoE+ switch designed for convergence‑layer networking in SMB, enterprise, and ISP environments, offering 10 Gbps connectivity, physical stacking, and redundant power supplies for high availability. It features 24 Gigabit RJ45 PoE+ ports, 4× 10 Gbps SFP+ slots, and a 720 W PoE budget, delivering up to 30 W per port to power access points, IP cameras, phones, and other PoE devices, with Perpetual PoE and Fast PoE ensuring uninterrupted power during reboots. The switch provides up to 128 Gbps switching capacity per unit and supports stacking of up to four units for 512 Gbps total capacity, delivering built‑in redundancy, strong performance, centralized management, and robust security.
Features
- 24× Gigabit RJ45 PoE+ ports
- 4× 10 Gbps SFP+ slots
- Up to 720 W total PoE budget
- Physical stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Highly Available with two field-replaceable power supplies, VRRP, and ERPS
- Centralised cloud management via Omada SDN controllers
- Standalone management via web, CLI, SNMP, and RMON
Kit Contents
- SG6428XHP Switch
- Power Cord
- RJ45 Console Cable
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
Manuals & Datasheet
Technical
| Hardware features | |
|---|---|
| Interface | 24 × 10/100/1000 Mbps PoE+ RJ45 ports 4 × 10G SFP+ slots 2 × USB 2.0 ports 1 × RJ45 console port 1 × USB Type‑C console port 1 × RJ45 management port |
| Fan quantity | Four field‑replaceable and hot‑swappable fans |
| Power supply | Two field‑replaceable and hot‑swappable power supply modules 100–240 V AC, 50/60 Hz Ships with one PSM500‑AC module by default |
| PoE ports (RJ45) | Standard: IEEE 802.3af / 802.3at compliant PoE+ ports: 24 ports, up to 30 W per port Total PoE power budget: up to 720 W |
| Dimensions (W × D × H) | 440 × 420 × 44 mm / 17.3 × 16.5 × 1.7 in |
| Mounting | Rack mountable |
| Max power consumption | 42.9 W (110 V / 60 Hz, no powered devices connected) 916.6 W (110 V / 60 Hz, 720 W PoE load with two PSM500‑AC modules) |
| Max heat dissipation | 146.29 BTU/hr (110 V / 60 Hz, no powered devices connected) 3125.61 BTU/hr (110 V / 60 Hz, 720 W PoE load with two PSM500‑AC modules) |
| Performance | |
| Switching capacity | 128 Gbps per unit |
| Stacking | Stacking number: 8 Stacking ports: 10G SFP+ (all uplink ports can be used) Stack bandwidth: up to 80 Gbps (4 stack ports) |
| Packet forwarding rate | 95.2 Mpps |
| MAC address table | 32 K |
| Packet buffer memory | 3 MB |
| Jumbo frame | 9 KB |
| Software features | |
| Quality of service | Class of service with 8 priority queues Port priority, IEEE 802.1p priority, DSCP priority Minimum bandwidth per queue Scheduling modes: SP, WRR, SP + WRR Rate limiting and storm control Voice VLAN and QoS remarking |
| L3 features | IP interfaces: IPv4 (256), IPv6 (256) Static routing: IPv4 (1024), IPv6 (512) RIP v1/v2, OSPF v2/v3 VRRP v2/v3 (64 groups) ECMP (256 entries, 32 next hops) Static ARP (512), dynamic ARP (7680) DHCP server and relay |
| L2 and L2+ features | Link aggregation Spanning tree protocol Port‑based and VLAN‑based loopback detection 802.3x flow control IGMP and MLD snooping ERPS, RSPAN PIM‑DM (IPv4) |
| VLAN | 802.1Q VLAN (up to 4K VLAN groups) MAC VLAN, multicast VLAN, management VLAN QinQ, GVRP, protocol VLAN Voice VLAN, private VLAN |
| Security | Port isolation and CPU protection ARP inspection and DHCP snooping IPv4 and IPv6 source guard 802.1X authentication (port and MAC based) RADIUS and TACACS+ HTTPS (TLS 1.2) and SSHv2 IP, port and MAC based access control |
| Management features | |
| Omada app | Yes (requires Omada controller) |
| Centralised management | Omada cloud‑based controller Omada hardware controller Omada software controller |
| Zero‑touch provisioning | Yes (via Omada cloud‑based controller) |
| Management tools | Web‑based GUI CLI (console and telnet) SNMP v1 / v2c / v3, RMON LLDP / LLDP‑MED Dual image and dual configuration Cable diagnostics, system logs, SNTP, EEE |
| Others | |
| Package contents | SG6428XHP switch Power cord RJ45 console cable Quick installation guide Rackmount kit Rubber feet |
| System requirements | Windows, macOS, NetWare, UNIX or Linux |
| Environment | Operating temperature: -5°C to 45°C at 2000 m -5°C to 40°C at 3000 m Storage temperature: -40°C to 70°C Operating humidity: 10% to 90% RH (non‑condensing) Storage humidity: 5% to 90% RH (non‑condensing) |
