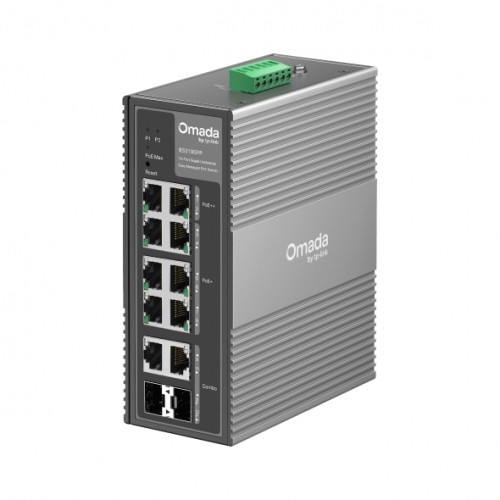

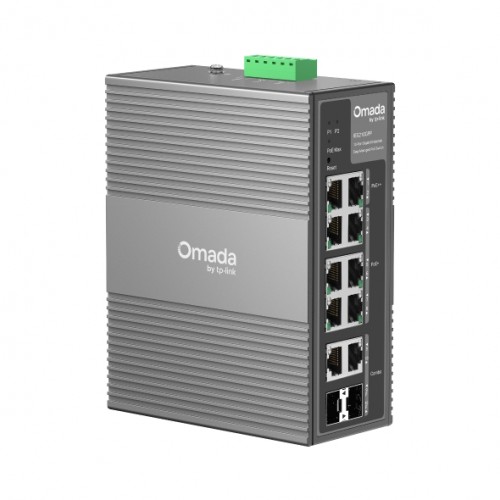

The Omada 10‑Port Gigabit Industrial Easy Managed Switch is a durable, PoE‑enabled Ethernet switch designed for reliable networking in demanding industrial and commercial environments. It features 10 Gigabit ports, including 6 PoE+ and 2 PoE++ ports, allowing both data and power to be delivered to devices such as IP cameras, wireless access points, VoIP phones, and IoT equipment over a single cable. With easy‑management features like traffic monitoring, VLAN support, and basic network control, it provides greater visibility and reliability without the complexity of a fully managed switch. Its industrial‑grade metal housing ensures stable operation in harsh conditions such as factories, outdoor cabinets, and infrastructure deployments.
Features
- 8× Gigabit RJ45 Ports (2× PoE++, 6× PoE+)
- 2× Gigabit Combo RJ45/SFP Slots
- 240W Power Budget with up to 60W for Each PoE++ Port
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: Up to 820ft (250m) PoE, VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
Kit Contents
- IES210GPP
- DIN-Rail Mounting Bracket
- Wall-Mounting Plates
- Installation Guide
Manuals & Datasheet
| Hardware features | |
|---|---|

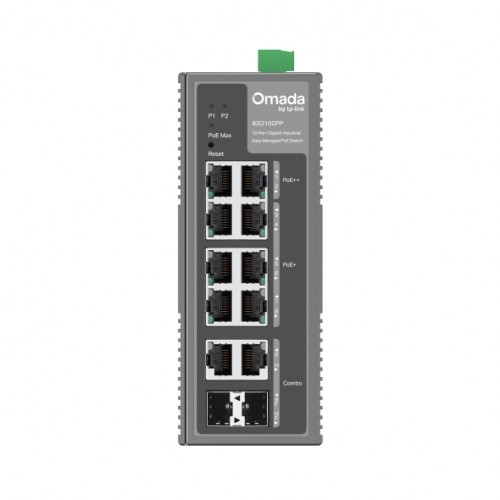

| Interface | 2 × 10/100/1000 Mbps PoE++ RJ45 ports 6 × 10/100/1000 Mbps PoE+ RJ45 ports 2 × Gigabit SFP/RJ45 combo slots Auto‑negotiation / Auto MDI / MDIX |
| Fan quantity | Fanless |

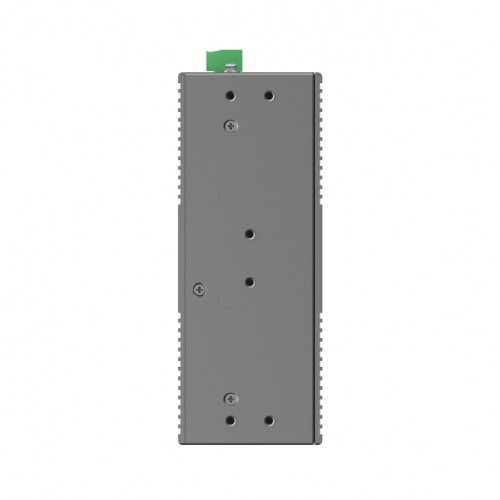

| Installation | DIN‑rail mounting Wall mounting |
| Physical security lock | Yes |

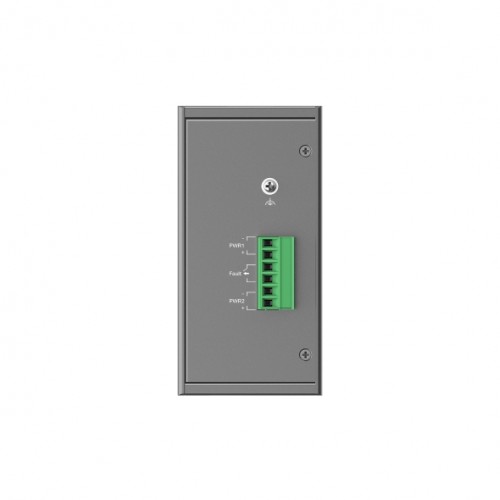

| Power supply | 12–57 V DC, 1+1 redundant DC power input |
| PoE ports (RJ45) | Standard: 802.3af / at / bt compliant PoE++ ports: 2 ports, up to 60 W per port PoE+ ports: 6 ports, up to 30 W per port PoE budget: 60 W (input: 12 V / 7.2 A – 21 V / 3.7 A) 120 W (input: 21 V / 6.7 A – 46 V / 3.1 A) 240 W (input: 46 V / 5.7 A – 57 V / 4.4 A) |
| Surge protection | ±6 kV common mode for Ethernet ports ±4 kV common mode for DC power input ports |
| Dimensions (W × D × H) | 155 × 120 × 60 mm / 6.1 × 4.7 × 2.4 in |
| Performance | |
| Switching capacity | 20 Gbps |
| Packet forwarding rate | 14.88 Mpps |
| MAC address table | 8K |
| Packet buffer memory | 4 Mbit |
| Jumbo frame | 15 KB |
| Transmission method | Store and forward |
| Software features | |
| Quality of service | 802.1p DSCP priority 8 priority queues WRR (weighted round robin) Queue weight configuration Bandwidth control (port‑based rate limit) Storm control (broadcast, multicast, unknown‑unicast) |
| L2 features | Link aggregation (static, up to 4 groups, 6 ports per group) Loopback detection 802.3x flow control Port mirroring (one‑to‑one, many‑to‑one, ingress / egress / both) Port statistics 802.1ab LLDP STP (802.1d), RSTP (802.1w) |
| L2 multicast | IGMP snooping v1 / v2 / v3 Fast leave |
| VLAN | MTU VLAN Port‑based VLAN 802.1Q tag VLAN Max 32 VLAN groups, 4K VID |
| Management features | |
| Omada app | Yes (requires Omada controller) |
| Centralised management | Omada cloud‑based controller Omada hardware controller Omada software controller |
| Cloud access | Yes (requires Omada controller) |
| Zero‑touch provisioning | Yes (via Omada cloud‑based controller) |
| Management tools | Web‑based GUI DHCP client Cable diagnostics Digital diagnostic monitoring (DDM) Automatic device discovery Batch configuration and firmware upgrade Unified configuration |
| Others | |
| Certification | FCC, CE, RoHS |
| Package contents | IES210GPP DIN‑rail mounting bracket Wall‑mounting plates Installation guide |
| Environment | Operating temperature: -40°C to 75°C / -40°F to 167°F Storage temperature: -40°C to 85°C / -40°F to 185°F Operating humidity: 5% to 95% non‑condensing Storage humidity: 5% to 95% non‑condensing |
