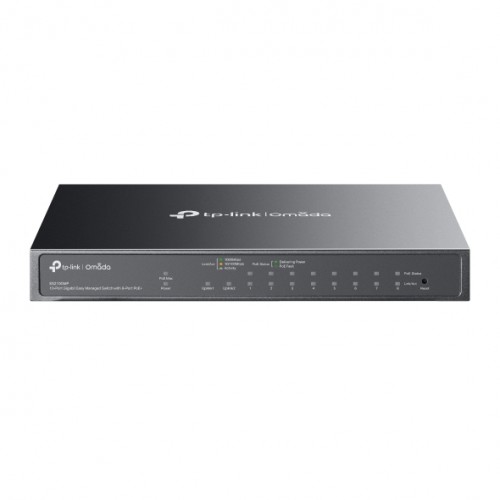

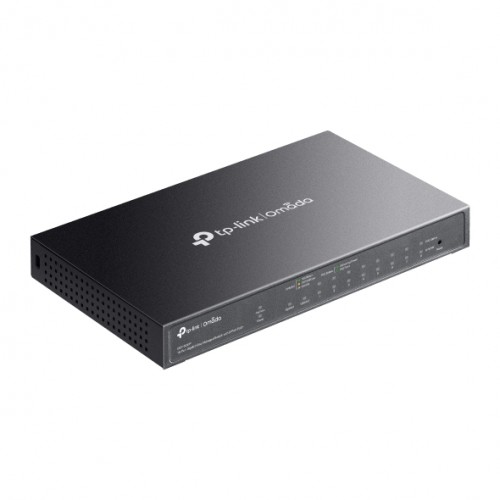

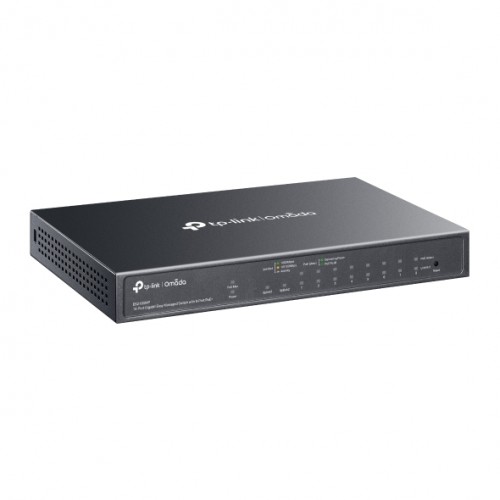

The Omada ES210GMP is a 10‑port Gigabit Easy Managed Switch designed for small businesses, surveillance networks, and branch deployments that need reliable Power over Ethernet (PoE+), silent operation, and centralised cloud management. It includes 8 Gigabit PoE+ RJ45 ports, 1 Gigabit RJ45 port, and 1 Gigabit SFP/RJ45 combo port, offering flexible options for both copper and fibre uplinks.
With a 123 W total PoE budget and up to 30 W available per port, the ES210GMP can power IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices without the need for additional power supplies. The switch is plug‑and‑play ready but also provides a range of advanced features such as VLAN, QoS, IGMP Snooping, Loop Prevention, and PoE Auto Recovery to help maintain strong network performance and reliability.
Features
- 9× 10/100/1000Mbps RJ45 ports (8× 802.3af/at-compliant PoE+)
- 1× Gigabit SFP/RJ45 Combo port
- 123W Power Budget, with up to 30W for each PoE port
- Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app
- Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation

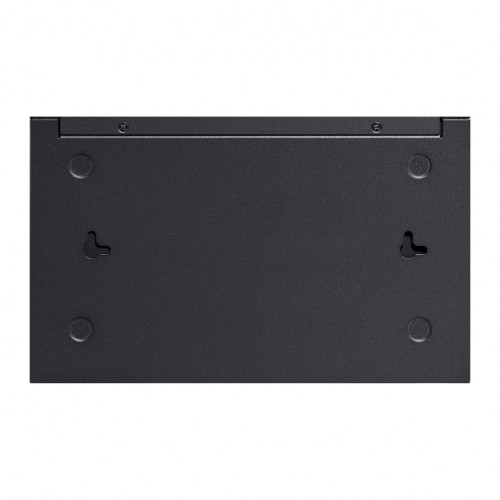

- Durable metal casing and desktop/wall mounting design
Kit Contents
- 1x ES210GMP
- 1x Power Adapter
- 1x Installation Guide
- 4x Rubber Feet
Technical
| Category | Specification |
|---|---|
| Interface | • 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+) • 1× 10/100/1000 Mbps RJ45 Port • 1× Gigabit SFP/RJ45 Combo Port • Auto-Negotiation / Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • Desktop • Wall Mount |
| Physical Security Lock | Yes |
| Power Supply | AC/DC Adapter (Input: 100-240V AC; Output: 53.5V DC / 2.43A) |
| PoE Ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 8 ports • PoE Budget: 123W total, 30W max per port • Fast PoE and Perpetual PoE • PoE Auto Recovery • Up to 250m PoE transmission distance |
| Dimensions (W × D × H) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Surge Protection | ±6kV |
| Performance | |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Software Features | |
| Quality of Service | • Port-based / 802.1p / DSCP QoS • 8 Priority Queues • Priority Schedule Mode: WRR • Queue Weight Configuration • Bandwidth Control: Port-Based Rating Limit • Storm Control: kbps / pps Modes • Broadcast / Multicast / Unknown-Unicast Control |
| L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • 802.3x Flow Control • Port Mirroring (One-to-One, Many-to-One, Ingress, Egress, Both) • Port Statistics (Mirror Status, Traffic Stats) • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping (v1/v2/v3) • Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN • Max 32 VLAN Groups • 4K VID |
| Transmission Method | Store-and-Forward |
| Management Features | |
| Omada App | Yes, requires Omada Controller (Hardware, Cloud, or Software) |
| Centralised Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes, requires Omada Controller |
| Zero-Touch Provisioning | Yes, requires Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Unified Configuration |
| Others | |
| Certification | FCC, CE, RoHS |
| Package Content | • ES210GMP • Power Adapter • Installation Guide • Rubber Feet |
| Environment | • Operating Temperature: 0℃–40℃ (32℉–104℉) • Storage Temperature: -40℃–70℃ (-40℉–158℉) • Operating Humidity: 10%–90% non-condensing • Storage Humidity: 5%–90% non-condensing |
