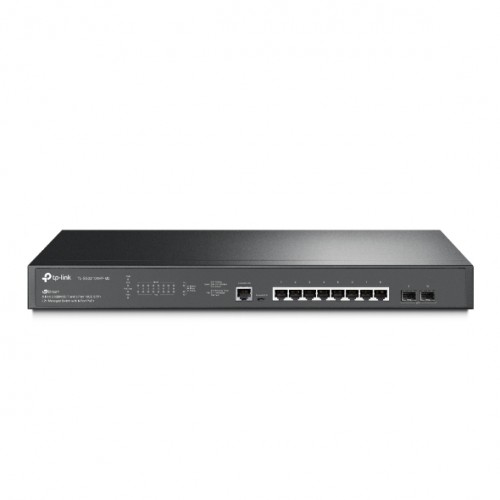

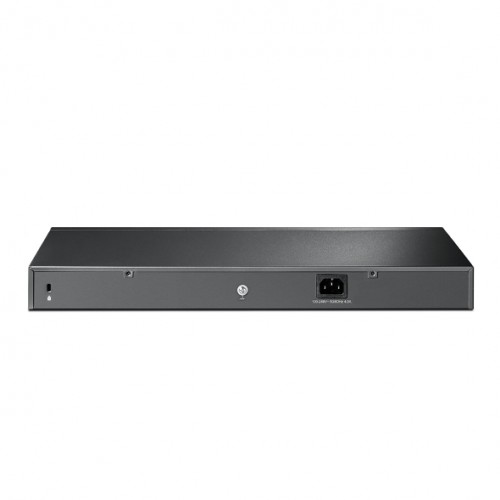

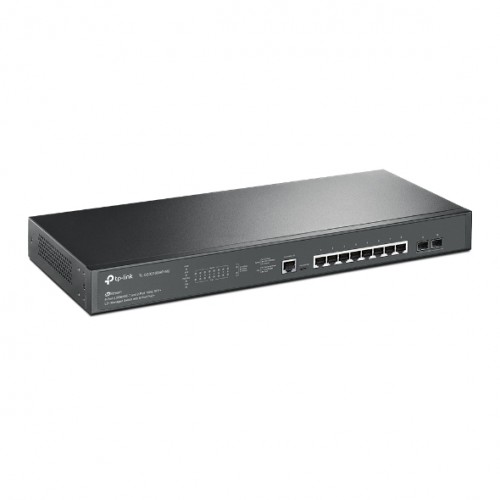

The JetStream TL‑SG3210XHP‑M2 is a compact L2+ managed multi‑gigabit PoE+ switch designed for high‑performance access networks and modern wireless deployments. It features 8 × 2.5 Gbps RJ45 PoE+ ports and 2 × 10 Gbps SFP+ uplink slots, providing high‑bandwidth connectivity and smooth aggregation to core or distribution layers. With a 240 W total PoE budget, the switch delivers reliable power and data to Wi‑Fi 6 access points, IP cameras and other PoE‑enabled devices over a single Ethernet cable. The TL‑SG3210XHP‑M2 supports a comprehensive Layer 2+ feature set, including static routing, VLANs, enterprise‑grade QoS, IGMP snooping and advanced security features such as ACLs, DHCP snooping, IP–MAC–Port binding and 802.1X authentication. Integrated into Omada SDN, it supports centralised cloud management via the Omada Controller, web interface or mobile app, while also offering full standalone management through web GUI, CLI, SNMP and RMON for flexible deployment requirements.
Features
- 8× 2.5 Gbps ports smash the gigabit barrier and unlock the full potential of WiFi 6 APs.
- 2× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
- 8× 802.3at/af-compliant PoE+ ports with a total power supply of 240 W.
- Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
- Cloud access and Omada app for ultra convenience and easy management.
- Helps route internal traffic for more efficient use of network resources.
- IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- L2/L3/L4 QoS and IGMP snooping.
Kit Contents
- TL-SG3210XHP-M2 Switch
- Power Cord
- Installation Guide
- Rackmount Kit
- Rubber Feet
Manuals & Datasheet
Technical
| Hardware features | |
|---|---|
| Interface | 8 × 100 / 1000 / 2500 Mbps RJ45 ports 2 × 10G SFP+ slots 1 × RJ45 console port 1 × Micro‑USB console port |
| Fan quantity | 2 |
| Power supply | 100–240 V AC~, 50/60 Hz |
| PoE ports (RJ45) | Standard: IEEE 802.3af / 802.3at compliant PoE+ ports: 8 ports Total PoE power budget: 240 W |
| Dimensions (W × D × H) | 440 × 180 × 44 mm / 17.3 × 7.1 × 1.7 in |
| Mounting | Rack mountable |
| Max power consumption | 17.2 W (no powered devices connected) 291.5 W (with 240 W PoE load) |
| Max heat dissipation | 58.8 BTU/hr (no powered devices connected) 994.6 BTU/hr (with 240 W PoE load) |
| Performance | |
| Switching capacity | 80 Gbps |
| Packet forwarding rate | 59.52 Mpps |
| MAC address table | 16 K |
| Packet buffer memory | 12 Mbit |
| Jumbo frame | 9 KB |
| Software features | |
| Quality of service | 8 priority queues IEEE 802.1p CoS and DSCP priority Queue scheduling: SP, WRR, SP + WRR Port‑ and flow‑based rate limiting Traffic actions: mirror, redirect, rate limit, QoS remark |
| L3 features | 16 IPv4 / IPv6 interfaces Static routing (48 routes) Static ARP (128 entries) Proxy ARP and gratuitous ARP DHCP server and relay |
| L2 and L2+ features | Static and LACP link aggregation STP, RSTP and MSTP with protection features Port‑ and VLAN‑based loopback detection 802.3x flow control and HOL blocking prevention Port and CPU mirroring |
| L2 multicast | IGMP v1 / v2 / v3 snooping and authentication MLD v1 / v2 snooping and querier Multicast VLAN registration Multicast filtering |
| VLAN | Up to 4K VLAN groups 802.1Q tagged VLAN MAC VLAN, protocol VLAN, private VLAN QinQ, GVRP, voice VLAN |
| Access control list | Time‑based, MAC, IP, IPv6 and combined ACLs Packet‑content ACLs Policy actions: mirror, redirect, rate limit, QoS remark |
| Security | IP‑MAC‑port binding and DHCP snooping ARP inspection and IPv4 / IPv6 source guard DoS protection and storm control 802.1X authentication with RADIUS and TACACS+ HTTPS (TLS 1.2) and SSH management Port isolation and access control |
| IPv6 support | Dual IPv4 / IPv6 stack Static IPv6 routing and neighbour discovery IPv6 ACL and IPv6 applications |
| MIB support | Standard MIBs including IF‑MIB, bridge MIB, RMON and RADIUS MIBs Vendor private MIB support |
| Management features | |
| Omada app | Yes (requires Omada controller) |
| Centralised management | Omada cloud‑based controller Omada hardware controller (OC300, OC200) Omada software controller |
| Zero‑touch provisioning | Yes (via Omada cloud‑based controller) |
| Management tools | Web‑based GUI CLI via console and telnet SNMP v1 / v2c / v3 with RMON LLDP and LLDP‑MED Dual image and dual configuration CPU monitoring, cable diagnostics, SNTP and EEE |
| Others | |
| Certification | CE, FCC, RoHS |
| Package contents | TL‑SG3210XHP‑M2 switch Power cord Quick installation guide Rackmount kit Rubber feet |
| System requirements | Windows, macOS, NetWare, UNIX or Linux |
| Environment | Operating temperature: 0°C to 50°C / 32°F to 122°F Storage temperature: -40°C to 70°C / -40°F to 158°F Operating humidity: 10% to 90% RH (non‑condensing) Storage humidity: 5% to 90% RH (non‑condensing) |
