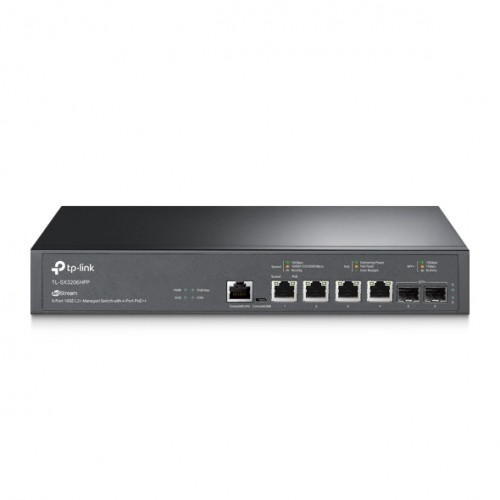

The JetStream TL‑SX3206HPP is a compact 6‑port 10‑Gigabit L2+ managed switch designed for high‑performance enterprise access and edge networks, featuring four 10GBase‑T PoE++ ports and two 10G SFP+ slots with a 120 Gbps switching capacity for flexible copper and fibre deployments.
Each PoE++ port delivers up to 60 W with a 200 W total PoE budget, making it ideal for powering Wi‑Fi 6, Wi‑Fi 6E, Wi‑Fi 7 access points and other high‑power devices without additional electrical infrastructure.
The switch supports a comprehensive Layer 2+ feature set, including static routing, VLANs, enterprise QoS, IGMP snooping and advanced security features such as ACLs, DHCP snooping, IP‑MAC‑Port binding and 802.1X authentication.
Fully integrated with Omada SDN, the TL‑SX3206HPP enables centralised cloud management via controller, web or app, while also supporting standalone management through web GUI, CLI, SNMP and RMON for maximum deployment flexibility.
Features
- Offers high-bandwidth connectivity with lightning-fast 4× 10 Gbps RJ45 ports and 2× 10 Gbps SFP+ slots.
- Four 802.3af/at/bt PoE++ 10G ports with up to 60 W PoE output on each port make it ideal for the deployment of Omada WiFi 6 and WiFi 6E APs.
- Supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
- IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Helps route internal traffic for more efficient use of network resources.
- Integrates into Omada SDN for cloud access and remote management.
- Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Kit Contents
- TL-SX3206HPP Switch
- Power Cord
- Installation Guide
- Rackmount Kit
- Rubber Feet
Manuals & Datasheet
Technical
| Hardware features | |
|---|---|
| Interface | 4 × 100 / 1000 / 2500 / 5000 / 10000 Mbps RJ45 ports 2 × 10G SFP+ slots 1 × RJ45 console port 1 × Micro‑USB console port |
| Fan quantity | 2 |
| Power supply | 100–240 V AC~, 50/60 Hz |
| PoE ports (RJ45) | Standard: IEEE 802.3bt / 802.3at / 802.3af compliant PoE+ ports: 4 ports, up to 60 W per port Total PoE power budget: 200 W |
| Dimensions (W × D × H) | 294 × 180 × 44 mm / 11.6 × 7.1 × 1.7 in |
| Mounting | Rack mountable Desktop |
| Max power consumption | 27.29 W (110 V / 60 Hz, no powered devices connected) 244.90 W (110 V / 60 Hz, with 200 W PoE load) |
| Max heat dissipation | 93.12 BTU/hr (110 V / 60 Hz, no powered devices connected) 835.67 BTU/hr (110 V / 60 Hz, with 200 W PoE load) |
| Performance | |
| Switching capacity | 120 Gbps |
| Packet forwarding rate | 89.28 Mpps |
| MAC address table | 32 K |
| Jumbo frame | 9 KB |
| Software features | |
| Quality of service | 8 priority queues IEEE 802.1p CoS and DSCP priority Queue scheduling: SP, WRR, SP + WRR Port‑ and flow‑based rate limiting Traffic actions: mirroring, redirect, rate limit, QoS remarking |
| L3 features | 16 IPv4 / IPv6 interfaces Static routing (48 routes) Static ARP (128 entries) Proxy ARP and gratuitous ARP DHCP server and relay |
| L2 and L2+ features | Static and LACP link aggregation STP, RSTP, MSTP with protection features Port‑ and VLAN‑based loopback detection 802.3x flow control and HOL prevention Port and CPU mirroring |
| L2 multicast | IGMP v1 / v2 / v3 snooping and authentication MLD v1 / v2 snooping and querier Multicast VLAN registration Multicast filtering |
| VLAN | Up to 4K VLAN groups 802.1Q tagged VLAN MAC VLAN, protocol VLAN, private VLAN QinQ, GVRP, voice VLAN |
| Access control list | Time‑based, MAC, IP, IPv6 and combined ACLs Packet‑content ACL Policy actions: mirror, redirect, rate limit, QoS remark |
| Security | IP‑MAC‑port binding and DHCP snooping ARP inspection and source guard (IPv4 and IPv6) DoS protection and storm control 802.1X authentication with RADIUS and TACACS+ HTTPS (TLS 1.2) and SSH management Port isolation and access control |
| IPv6 support | Dual IPv4 / IPv6 stack Static IPv6 routing and ND IPv6 ACL and IPv6 applications |
| MIB support | Standard MIBs including IF‑MIB, bridge MIB, RMON and RADIUS MIBs Vendor private MIB support |
| Management features | |
| Omada app | Yes (requires Omada controller) |
| Centralised management | Omada cloud‑based controller Omada hardware controller (OC300, OC200) Omada software controller |
| Zero‑touch provisioning | Yes (via Omada cloud‑based controller) |
| Management tools | Web‑based GUI CLI (console and telnet) SNMP v1 / v2c / v3 with RMON LLDP / LLDP‑MED Dual image and dual configuration CPU monitoring, cable diagnostics, SNTP, EEE |
| Others | |
| Certification | CE, FCC, RoHS |
| Package contents | TL‑SX3206HPP switch Power cord Rackmount kit Rubber feet Quick installation guide |
| System requirements | Windows, macOS, NetWare, UNIX or Linux |
| Environment | Operating temperature: 0°C to 50°C / 32°F to 122°F Storage temperature: -40°C to 70°C / -40°F to 158°F Operating humidity: 10% to 90% RH (non‑condensing) Storage humidity: 5% to 90% RH (non‑condensing) |
