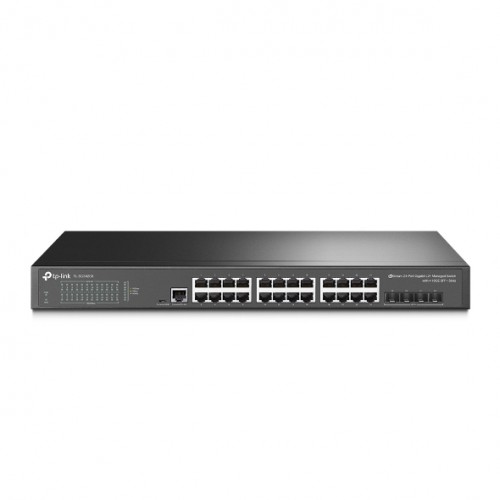

The JetStream TL‑SG3428X is a high‑performance L2+ managed Gigabit switch designed for enterprise access and aggregation networks that require reliable wired connectivity and high‑speed uplinks. It offers 24 × Gigabit RJ45 ports and 4 × 10 Gbps SFP+ uplink slots, providing non‑blocking performance and flexible connectivity to core or distribution layers. The switch supports a comprehensive Layer 2+ feature set, including static routing, VLANs, enterprise‑grade QoS, IGMP snooping and advanced security features such as ACLs, DHCP snooping, IP–MAC–Port binding and 802.1X authentication to ensure secure and efficient traffic management. Fully integrated with Omada SDN, the TL‑SG3428X supports centralised cloud management via the Omada Controller, web interface or mobile app, while also offering standalone management through web GUI, CLI, SNMP and RMON, making it suitable for both centrally managed and independent deployments.
Features
- 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
- 24× gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices.
- Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
- Cloud access and Omada app for ultra convenience and easy management.
- Helps route internal traffic for more efficient use of network resources.
- IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- L2/L3/L4 QoS and IGMP snooping.
- Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Kit Contents
- TL-SG3428X Switch
- Power Cord
- Installation Guide
- Rackmount Kit
- Rubber Feet
Manuals & Datasheet
Technical
| Hardware features | |
|---|---|

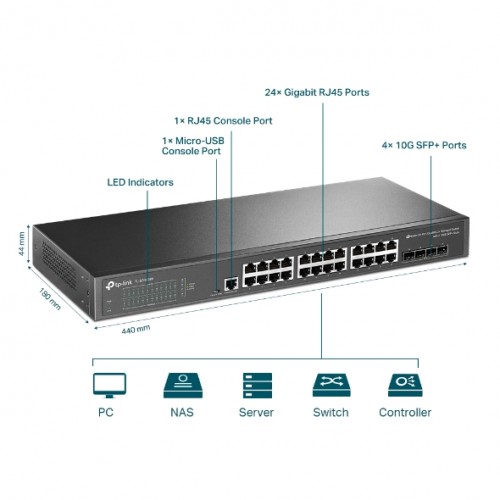

| Interface | 24 × 10/100/1000 Mbps RJ45 ports 4 × 10G SFP+ slots 1 × RJ45 console port 1 × Micro‑USB console port |
| Fan quantity | Fanless |
| Power supply | 100–240 V AC~, 50/60 Hz |
| Dimensions (W × D × H) | 440 × 180 × 44 mm / 17.3 × 7.1 × 1.7 in |
| Mounting | Rack mountable |
| Max power consumption | 23.6 W (110 V / 60 Hz) |
| Max heat dissipation | 80.353 BTU/hr (110 V / 60 Hz) |
| Performance | |
| Switching capacity | 128 Gbps |
| Packet forwarding rate | 95.23 Mpps |
| MAC address table | 16 K |
| Packet buffer memory | 12 Mbit |
| Jumbo frame | 9 KB |
| Software features | |
| Quality of service | 8 priority queues IEEE 802.1p CoS and DSCP priority Queue scheduling: SP, WRR, SP + WRR Port‑ and flow‑based rate limiting Traffic actions: mirror, redirect, rate limit, QoS remark |
| L3 features | 16 IPv4 / IPv6 interfaces Static routing (48 routes) Static ARP (128 entries) Proxy ARP and gratuitous ARP DHCP server and relay |
| L2 and L2+ features | Static and LACP link aggregation STP, RSTP and MSTP with protection features Port‑ and VLAN‑based loopback detection 802.3x flow control and HOL blocking prevention Port and CPU mirroring |
| L2 multicast | IGMP v1 / v2 / v3 snooping and authentication MLD v1 / v2 snooping and querier Multicast VLAN registration Multicast filtering |
| VLAN | Up to 4K VLAN groups 802.1Q tagged VLAN MAC VLAN, protocol VLAN, private VLAN QinQ, GVRP and voice VLAN |
| Access control list | Time‑based, MAC, IP, IPv6 and combined ACLs Packet‑content ACLs Policy actions: mirror, redirect, rate limit, QoS remark |
| Security | IP‑MAC‑port binding and DHCP snooping ARP inspection and IPv4 / IPv6 source guard DoS protection and storm control 802.1X authentication with RADIUS and TACACS+ HTTPS (TLS 1.2) and SSH management Port isolation and access control |
| IPv6 support | Dual IPv4 / IPv6 stack Static IPv6 routing and neighbour discovery IPv6 ACL and IPv6 applications |
| MIB support | Standard MIBs including IF‑MIB, bridge MIB, RMON and RADIUS MIBs Vendor private MIB support |
| Management features | |
| Omada app | Yes (requires Omada controller) |
| Centralised management | Omada cloud‑based controller Omada hardware controller (OC300, OC200) Omada software controller |
| Zero‑touch provisioning | Yes (via Omada cloud‑based controller) |
| Management tools | Web‑based GUI CLI via console and telnet SNMP v1 / v2c / v3 with RMON LLDP and LLDP‑MED Dual image and dual configuration CPU monitoring, cable diagnostics, SNTP and EEE |
| Others | |
| Certification | CE, FCC, RoHS |
| Package contents | TL‑SG3428X switch Power cord Quick installation guide Rackmount kit Rubber feet |
| System requirements | Windows, macOS, NetWare, UNIX or Linux |
| Environment | Operating temperature: 0°C to 45°C / 32°F to 113°F Storage temperature: -40°C to 70°C / -40°F to 158°F Operating humidity: 10% to 90% RH (non‑condensing) Storage humidity: 5% to 90% RH (non‑condensing) |
