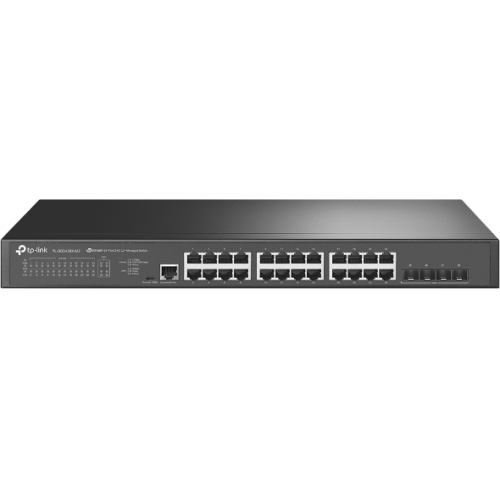

_1.0-Package（灰）_normal_20230328102826m-500x500.png "JetStream 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots")
Click Image for Gallery
The JetStream TL‑SG3428X‑M2 is a high‑performance L2+ managed multi‑gigabit switch designed for modern enterprise access and aggregation networks requiring increased bandwidth without Power over Ethernet. It features 24 × 2.5 Gbps RJ45 ports and 4 × 10 Gbps SFP+ uplink slots, delivering non‑blocking throughput and scalable high‑speed connectivity to core or distribution layers. The switch supports a comprehensive Layer 2+ feature set, including static routing, VLANs, enterprise‑grade QoS, IGMP snooping and advanced security features such as ACLs, DHCP snooping, IP–MAC–Port binding and 802.1X authentication, ensuring secure and efficient traffic handling. Fully integrated with Omada SDN, the TL‑SG3428X‑M2 enables centralised cloud management via the Omada Controller, web interface or mobile app, while also supporting standalone management through web GUI, CLI, SNMP and RMON, making it well suited to both centrally managed and standalone network deployments.
Features
- 24× 2.5 Gbps RJ45 ports offer high-speed and reliable connections to other switches and devices.
- 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
- Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
- Cloud access and Omada app for ultra convenience and easy management.
- Helps route internal traffic for more efficient use of network resources.
- IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- L2/L3/L4 QoS and IGMP snooping.
- Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Kit Contents
- TL-SG3428X-M2 Switch
- Power Cord
- Installation Guide
- Rackmount Kit
- Rubber Feet
Manuals & Datasheet
Technical
| Hardware features | |
|---|---|
| Interface | 24 × 2.5 Gbps RJ45 ports 4 × 10G SFP+ slots 1 × RJ45 console port 1 × Micro‑USB console port |
| Fan quantity | 1 |
| Power supply | 100–240 V AC~, 50/60 Hz |
| Dimensions (W × D × H) | 440 × 180 × 44 mm / 17.3 × 7.1 × 1.7 in |
| Mounting | Rack mountable |
| Max power consumption | 45.1 W (110 V / 60 Hz) |
| Max heat dissipation | 154.38 BTU/hr (110 V / 60 Hz) |
| Performance | |
| Switching capacity | 200 Gbps |
| Packet forwarding rate | 148.80 Mpps |
| MAC address table | 32 K |
| Packet buffer memory | 16 Mbit |
| Jumbo frame | 9 KB |
| Software features | |
| Quality of service | 8 priority queues IEEE 802.1p CoS and DSCP priority Queue scheduling: SP, WRR, SP + WRR Port‑ and flow‑based rate limiting Traffic actions: mirror, redirect, rate limit, QoS remark |
| L3 features | 32 IPv4 / IPv6 interfaces Static routing (48 routes) Static ARP (128 entries) Proxy ARP and gratuitous ARP DHCP server and relay |
| L2 and L2+ features | Static and LACP link aggregation STP, RSTP and MSTP with protection features Port‑ and VLAN‑based loopback detection 802.3x flow control and HOL blocking prevention Port and CPU mirroring |
| L2 multicast | IGMP v1 / v2 / v3 snooping and authentication MLD v1 / v2 snooping and querier Multicast VLAN registration Multicast filtering |
| VLAN | Up to 4K VLAN groups 802.1Q tagged VLAN MAC VLAN, protocol VLAN QinQ, GVRP and voice VLAN |
| Access control list | Time‑based, MAC, IP, IPv6 and combined ACLs Packet‑content ACLs Policy actions: mirror, redirect, rate limit, QoS remark |
| Security | IP‑MAC‑port binding and DHCP snooping ARP inspection and IPv4 / IPv6 source guard DoS protection and storm control 802.1X authentication with RADIUS and TACACS+ HTTPS (TLS 1.2) and SSH management Port isolation and access control |
| IPv6 support | Dual IPv4 / IPv6 stack Static IPv6 routing and neighbour discovery IPv6 ACL and IPv6 applications |
| MIB support | Standard MIBs including IF‑MIB, bridge MIB, RMON and RADIUS MIBs Vendor private MIB support |
| Management features | |
| Omada app | Yes (requires Omada controller) |
| Centralised management | Omada cloud‑based controller Omada hardware controller (OC300, OC200) Omada software controller |
| Zero‑touch provisioning | Yes (via Omada cloud‑based controller) |
| Management tools | Web‑based GUI CLI via console and telnet SNMP v1 / v2c / v3 with RMON LLDP and LLDP‑MED Dual image and dual configuration CPU monitoring, cable diagnostics, SNTP and EEE |
| Others | |
| Certification | CE, FCC, RoHS |
| Package contents | TL‑SG3428X‑M2 switch Power cord Quick installation guide Rackmount kit Rubber feet |
| System requirements | Windows, macOS, NetWare, UNIX or Linux |
| Environment | Operating temperature: 0°C to 40°C / 32°F to 104°F Storage temperature: -40°C to 70°C / -40°F to 158°F Operating humidity: 10% to 90% RH (non‑condensing) Storage humidity: 5% to 90% RH (non‑condensing) |
