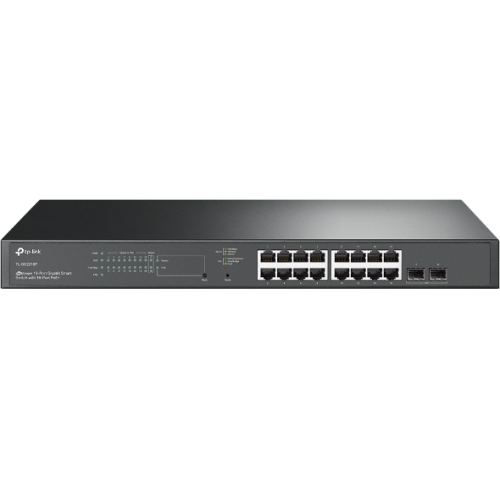

_1.0-A-package_normal_20221220024703d-500x500.png "JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+")
Click Image for Gallery
The JetStream TL‑SG2218P is a compact L2+ managed Gigabit PoE+ switch designed for small to medium business access networks that require reliable connectivity and efficient power delivery. It features 16 × Gigabit RJ45 PoE+ ports and 2 × Gigabit SFP uplink slots, providing flexible copper access with fibre uplink options for network expansion. With a total PoE power budget of up to 150 W, each PoE+ port can supply up to 30 W, making the switch well suited for powering wireless access points, IP cameras, VoIP phones and other PoE‑enabled devices over a single Ethernet cable. The TL‑SG2218P supports a comprehensive Layer 2+ feature set, including static routing, VLANs, enterprise‑grade QoS, IGMP snooping and advanced security features such as ACLs, DHCP snooping, IP–MAC–Port binding and 802.1X authentication to ensure secure and stable network operation. Integrated with Omada SDN, it supports centralised cloud management via the Omada Controller or app, while also offering standalone management through web GUI, CLI, SNMP and RMON for flexible deployment scenarios.
Features
- 16× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W.
- 16× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
- Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
- Cloud access and Omada app for ultra convenience and easy management.
- Helps route internal traffic for more efficient use of network resources.
- IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- L2/L3/L4 QoS and IGMP snooping.
- IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbour discovery.
Kit Contents
- TL-SG2218P
- Power Cord
- Installation Guide
- Rack-mount Kit
- Rubber Feet
Manuals & Datasheet
Technical
| Hardware features | |
|---|---|
| Standards and protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.3az IEEE 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x |
| Interface | 16 × 10/100/1000 Mbps RJ45 ports (auto‑negotiation, auto MDI/MDIX) 2 × Gigabit SFP slots |
| Network media | 10BASE‑T: UTP category 3, 4 or 5 cable (max 100 m) 100BASE‑TX / 1000BASE‑T: UTP category 5, 5e or above (max 100 m) 1000BASE‑X: MMF, SMF |
| Fan quantity | 1 |
| Power supply | 100–240 V AC, 50/60 Hz |
| PoE ports (RJ45) | Standard: IEEE 802.3af / 802.3at compliant PoE+ ports: 16 ports Total PoE power budget: 150 W |
| Dimensions (W × D × H) | 440 × 180 × 44 mm / 17.3 × 7.1 × 1.7 in |
| Mounting | Rack mountable |
| Max power consumption | 181.4 W (110 V / 60 Hz, with 150 W PoE load) 178.3 W (220 V / 50 Hz, with 150 W PoE load) |
| Max heat dissipation | 619.06 BTU/hr (110 V / 60 Hz, with 150 W PoE load) 608.52 BTU/hr (220 V / 50 Hz, with 150 W PoE load) |
| Performance | |
| Switching capacity | 36 Gbps |
| Packet forwarding rate | 26.78 Mpps |
| MAC address table | 8 K |
| Packet buffer memory | 4.1 Mbit |
| Jumbo frame | 9 KB |
| Software features | |
| Quality of service | IEEE 802.1p CoS and DSCP priority 8 priority queues Scheduling modes: SP and WRR Queue weight configuration Port and flow based rate limiting Storm control for broadcast, multicast and unknown‑unicast traffic |
| L2 and L2+ features | IPv4 and IPv6 interfaces (up to 16) Static routing (32 routes) DHCP server and relay, DHCP L2 relay Static ARP, proxy ARP and gratuitous ARP Static and LACP link aggregation STP, RSTP and MSTP with protection features Loopback detection and 802.3x flow control Port and CPU mirroring DLDP, LLDP and LLDP‑MED |
| L2 multicast | IGMP snooping Multicast VLAN registration Multicast filtering and limited IP multicast |
| VLAN | Up to 4K VLAN groups 802.1Q tagged VLAN MAC VLAN and protocol VLAN GVRP and voice VLAN |
| Access control list | Time‑based, MAC, IP, IPv6 and combined ACLs Permit and deny rules Policy actions: mirror, redirect, rate limit, QoS remark Port and VLAN rule binding |
| Security | AAA and port security IP and IPv6 MAC binding with DHCP snooping ARP inspection and source guard 802.1X authentication with RADIUS support DoS protection and storm control HTTPS (TLS 1.2) and SSH management Port isolation and access control |
| IPv6 support | Dual IPv4 / IPv6 stack Static IPv6 routing and ACLs IPv6 interfaces and neighbour discovery IPv6 application support |
| MIB support | Standard MIBs including bridge, RMON and RADIUS MIBs Vendor private MIB support |
| Management features | |
| Omada app | Yes (requires Omada controller) |
| Centralised management | Omada cloud‑based controller Omada hardware controller OC300 Omada hardware controller OC200 Omada software controller |
| Cloud access | Yes (via Omada controllers) |
| Zero‑touch provisioning | Yes (via Omada cloud‑based controller) |
| Management tools | Web‑based GUI CLI via telnet SNMP v1 / v2c / v3 with RMON Dual image and dual configuration CPU monitoring, cable diagnostics, SNTP and EEE |
| Others | |
| Certification | CE, FCC, RoHS |
| Package contents | TL‑SG2218P switch Power cord Installation guide Rackmount kit Rubber feet |
| System requirements | Windows, macOS, NetWare, UNIX or Linux |
| Environment | Operating temperature: 0°C to 50°C / 32°F to 122°F Storage temperature: -40°C to 70°C / -40°F to 158°F Operating humidity: 10% to 90% RH (non‑condensing) Storage humidity: 5% to 90% RH (non‑condensing) |
