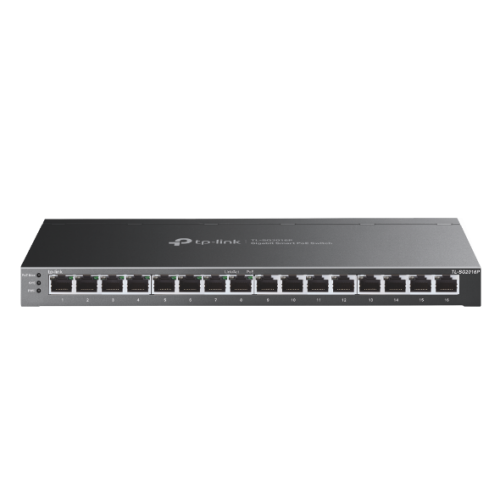

_1.0-B_normal_20221109064647h-500x500.PNG "JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+")
Click Image for Gallery
The JetStream TL‑SG2016P is a compact L2+ smart managed Gigabit PoE+ switch designed for small to medium business access networks that require reliable connectivity with integrated power delivery. It features 16 × Gigabit RJ45 ports, including 8 × 802.3af/at PoE+ ports and 8 × non‑PoE Gigabit ports, delivering flexible wired connectivity in a space‑efficient, fanless design. With a total PoE power budget of 120 W, each PoE+ port can supply up to 30 W, making the switch well suited for powering wireless access points, IP cameras, VoIP phones and other PoE‑enabled devices over a single Ethernet cable. The TL‑SG2016P supports essential Layer 2+ features, including static routing, VLAN segmentation, enterprise‑grade QoS, IGMP snooping and advanced security features such as ACLs, DHCP snooping, IP–MAC–Port binding and 802.1X authentication to ensure stable and secure network operation. Integrated with Omada SDN, it enables centralised cloud management via the Omada Controller or app, while also supporting standalone management through web GUI, CLI, SNMP and RMON, providing flexible management options for growing business networks.
Features
- 8× 802.3at/af-compliant PoE+ ports with a total power supply of 120 W.
- 8× gigabit PoE+ ports and 8× gigabit non-PoE ports provide high-speed connections.
- Zero-Touch Provisioning, Centralised Cloud Management, and Intelligent Monitoring.
- Cloud access and Omada app for ultra convenience and easy management.
- IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- L2/L3/L4 QoS and IGMP snooping.
Kit Contents
- TL-SG2016P Switch
- Power Adapter
- Installation Guide
- Rubber Feet
Manuals & Datasheet
Technical
| Hardware Features | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface | 16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 support 802.3at/af PoE+) Auto‑Negotiation and Auto MDI/MDIX |
| Network Media | 10BASE‑T: UTP category 3, 4, 5 cable (maximum 100 m) 100BASE‑TX and 1000BASE‑T: UTP category 5, 5e or higher cable (maximum 100 m) |
| Fan Quantity | Fanless |
| Power Supply | External power adapter Output: 53.5 VDC, 1.31 A |
| PoE Ports | 802.3af and 802.3at compliant 8 PoE ports Total PoE power budget: 120 W |
| Dimensions (W × D × H) | 11.3 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm) |
| Mounting | Desktop or wall mounting |
| Max. Power Consumption | 146.5 W (110 V, 60 Hz, with 120 W PD connected) |
| Max. Heat Dissipation | 499.98 BTU/hr (110 V, 60 Hz, with 120 W PD connected) |
| Performance | |
| Bandwidth / Backplane | 16 Gbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| Software Features | |
| Quality of Service | 802.1p CoS and DSCP priority 8 priority queues Scheduling modes: SP and WRR Queue weight configuration Port and flow based rate limiting Storm control with broadcast, multicast and unknown unicast control |
| L2 and L2+ Features | DHCP Relay including VLAN relay and L2 relay Link aggregation: Static and 802.3ad LACP Up to 8 aggregation groups with up to 8 ports per group STP, RSTP and MSTP with protection mechanisms Loopback detection and 802.3x flow control Port and CPU mirroring with multiple modes DLDP and LLDP / LLDP‑MED support |
| L2 Multicast | 511 shared IPv4 and IPv6 multicast groups IGMP v1, v2 and v3 snooping with fast leave and querier Multicast VLAN registration and filtering MLD v1 and v2 snooping with static configuration Limited IP multicast profiles |
| Advanced Features | Automatic device discovery Batch configuration and firmware upgrading Intelligent monitoring and alerting Unified configuration and reboot scheduling |
| VLAN | Up to 4K VLAN groups 802.1Q tagged VLAN MAC and protocol VLAN GVRP and voice VLAN |
| Access Control List | Supports up to 230 ACL entries Time based, MAC, IP, IPv6 and combined ACLs Permit and deny rule operations Policy actions including mirror, redirect, rate limit and QoS remark Port and VLAN binding support |
| Security | AAA and 802.1X authentication IP and IPv6 MAC binding with snooping and inspection Source guard and DoS protection Static and dynamic port security Storm control and port isolation Secure HTTPS and SSH management |
| IPv6 | Dual IPv4 and IPv6 stack MLD snooping and neighbour discovery ICMPv6, TCPv6 and UDPv6 support Full IPv6 management and application support |
| MIBs | MIB II, Bridge, P and Q Bridge MIBs Radius accounting and authentication MIBs Remote ping and traceroute MIB RMON and TP‑Link private MIBs |
| Management Features | |
| Omada App | Supported via Omada Cloud, OC300, OC200 and Omada Software Controller |
| Centralised Management | Omada Cloud‑Based Controller OC300 and OC200 hardware controllers Omada Software Controller |
| Zero‑Touch Provisioning | Supported via Omada Cloud‑Based Controller |
| Management | Web GUI and CLI via telnet SNMP v1, v2c and v3 with trap and inform RMON support Dual image and configuration Diagnostics, logging and SNTP |
| Others | |
| Certification | CE, FCC, RoHS |
| Package Content | TL‑SG2016P Switch Power Adapter Installation Guide Rubber Feet |
| System Requirements | Windows, macOS, NetWare, UNIX or Linux |
| Environment | Operating temperature: 0–40 ℃ Storage temperature: -40–70 ℃ Operating humidity: 10–90% RH non‑condensing Storage humidity: 5–90% RH non‑condensing |
