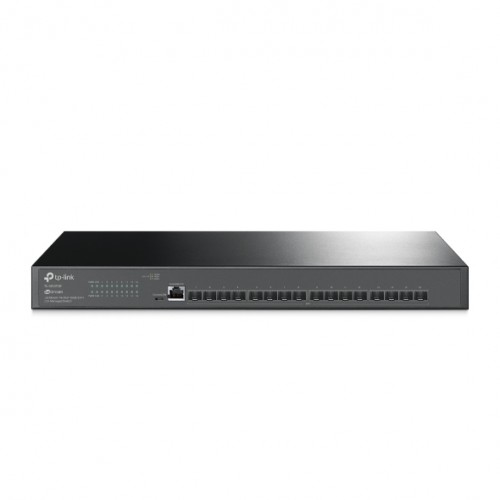

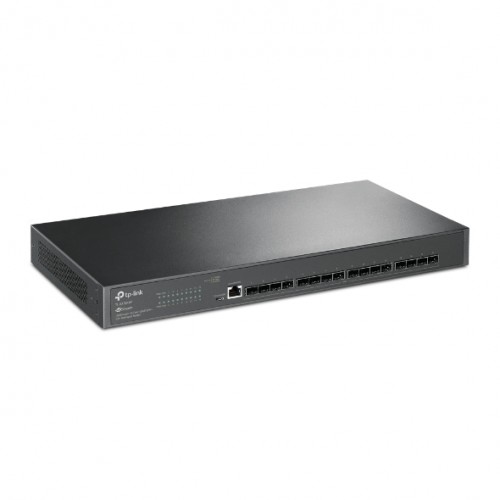

The JetStream TL‑SX3016F is a compact Layer 2+ managed aggregation switch built for high‑speed, full‑fibre enterprise networks. With 16× 10 Gbps SFP+ ports and a 320 Gbps switching capacity, it delivers non‑blocking performance for servers, storage, and core network links, while dual internal redundant power supplies ensure high availability. Advanced features such as VLAN, ACL, QoS, IGMP Snooping, and ERPS provide strong traffic control and rapid fault recovery, and integration with the Omada SDN platform enables centralised cloud management alongside flexible standalone operation via Web GUI, CLI, SNMP, and RMON, making it ideal for scalable aggregation‑layer deployments in business and campus environments.
Features
- Lightning-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity and non-blocking 320 Gbps switching capacity.
- Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS, IGMP Snooping, and more.
- Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more.

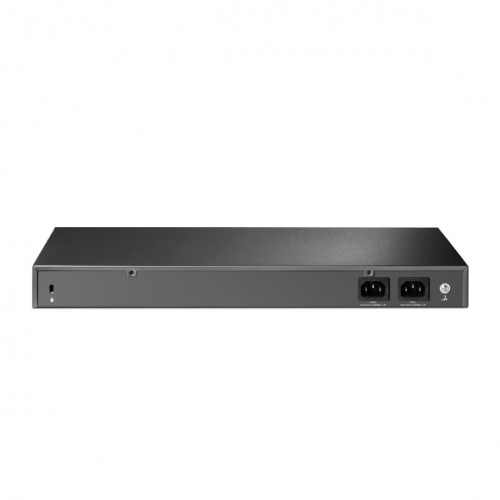

- Two power supplies backing each other up make it an ideal choice for reliable networking architecture.
- Integrates into Omada SDN for cloud access and remote management.
- Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Kit Contents
- TL-SX3016F Switch
- 2× Power Cords
- Installation Guide
- Rackmount Kit
- Rubber Feet
Manuals & Datasheet
Technical
| Hardware features | |
|---|---|
| Interface | 16 × 10G SFP+ slots 1 × RJ45 console port 1 × Micro‑USB console port |
| Fan quantity | 1 |
| Power supply | 100–240 V AC~, 50/60 Hz |
| Dimensions (W × D × H) | 440 × 220 × 44 mm / 17.3 × 8.7 × 1.7 in |
| Mounting | Rack mountable |
| Max power consumption | 32.74 W (220 V / 50 Hz) |
| Max heat dissipation | 111.71 BTU/hr (220 V / 50 Hz) |
| Performance | |
| Switching capacity | 320 Gbps |
| Packet forwarding rate | 238.08 Mpps |
| MAC address table | 32 K |
| Packet buffer memory | 24 Mbit |
| Jumbo frame | 9 KB |
| Software features | |
| Quality of service | 8 priority queues IEEE 802.1p CoS and DSCP priority Queue scheduling: SP, WRR, SP and WRR Port and flow based rate limiting Traffic actions: mirror, redirect, rate limit, QoS remark |
| L3 features | 16 IPv4 / IPv6 interfaces Static routing (48 routes) Static ARP (128 entries) Proxy ARP and gratuitous ARP DHCP server and relay |
| L2 and L2+ features | Static and LACP link aggregation STP, RSTP and MSTP with protection features Port and VLAN based loopback detection 802.3x flow control and HOL blocking prevention Port and CPU mirroring |
| L2 multicast | IGMP v1 / v2 / v3 snooping and authentication MLD snooping and querier Multicast VLAN registration Multicast filtering |
| VLAN | Up to 4K VLAN groups 802.1Q tagged VLAN MAC VLAN, protocol VLAN and private VLAN QinQ, GVRP and voice VLAN |
| Access control list | Time‑based, MAC, IP, IPv6 and combined ACLs Packet‑content ACLs Policy actions: mirror, redirect, rate limit and QoS remark |
| Security | IP‑MAC‑port binding and DHCP snooping ARP inspection and IPv4 / IPv6 source guard DoS protection and storm control 802.1X authentication with RADIUS and TACACS+ HTTPS (TLS 1.2) and SSH management Port isolation and access control |
| IPv6 support | Dual IPv4 / IPv6 stack Static IPv6 routing and neighbour discovery IPv6 ACL and IPv6 applications |
| MIB support | Standard MIBs including IF‑MIB, bridge MIB, RMON and RADIUS MIBs Vendor private MIB support |
| Management features | |
| Omada app | Yes (requires Omada controller) |
| Centralised management | Omada cloud‑based controller Omada hardware controller (OC300, OC200) Omada software controller |
| Zero‑touch provisioning | Yes (via Omada cloud‑based controller) |
| Management tools | Web‑based GUI CLI via console and telnet SNMP v1 / v2c / v3 with RMON LLDP and LLDP‑MED Dual image and dual configuration CPU monitoring, cable diagnostics, SNTP and EEE |
| Others | |
| Certification | CE, FCC, RoHS |
| Package contents | TL‑SX3016F switch 2 × power cords Quick installation guide Rackmount kit Rubber feet |
| System requirements | Windows, macOS, NetWare, UNIX or Linux |
| Environment | Operating temperature: 0°C to 45°C / 32°F to 113°F Storage temperature: -40°C to 70°C / -40°F to 158°F Operating humidity: 10% to 90% RH (non‑condensing) Storage humidity: 5% to 90% RH (non‑condensing) |
