The JetStream TL‑SG2210MP is a compact L2+ smart managed Gigabit PoE+ switch designed for small to medium business access networks that require reliable connectivity and centralised power delivery. It features 8 × Gigabit RJ45 PoE+ ports and 2 × Gigabit SFP uplink slots, providing flexible copper access with fibre uplinks for network expansion or aggregation. With a total PoE power budget of up to 150 W, each PoE+ port can supply up to 30 W, making the switch well suited for powering wireless access points, IP cameras, VoIP phones and other PoE‑enabled devices over a single Ethernet cable. The TL‑SG2210MP supports a comprehensive set of Layer 2+ features, including static routing, VLAN segmentation, enterprise‑grade QoS, IGMP snooping and advanced security features such as ACLs, DHCP snooping, IP–MAC–Port binding and 802.1X authentication, ensuring secure and efficient traffic handling. Integrated with Omada SDN, it supports centralised cloud management via the Omada Controller, web interface or mobile app, while also offering full standalone management through web GUI, CLI, SNMP and RMON, providing flexibility for a wide range of deployment scenarios.
Features
- 8× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W.
- 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
- Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
- Cloud access and Omada app for ultra convenience and easy management.
- IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- L2/L3/L4 QoS and IGMP snooping.
Kit Contents
- TL-SG2210MP Switch
- Power Cord
- Installation Guide
- Rack-mount Kit
- Rubber Feet
Manuals & Datasheet
Technical
| Category | Specification |
|---|
| Hardware Features | - Standards and Protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.3af, 802.3at, 802.3az, 802.1d, 802.1s, 802.1w, 802.1q, 802.1x, 802.1p
- Interfaces: 8 × 10/100/1000 Mbps RJ45 ports with PoE+ support, 2 × 100/1000 Mbps SFP slots
- Network Media: UTP or STP Cat 3 to Cat 5e up to 100 m, MMF and SMF for fibre connections
- Fan Quantity: 1
- Physical Security Lock: Yes
- Power Supply: 100–240V AC, 50/60Hz
- PoE: 802.3at and 802.3af compliant, 8 PoE+ ports, 150 W power budget
- Dimensions (W × D × H): 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
- Mounting: Desktop or 13 inch and 19 inch 1U rack mountable
- Max Power Consumption: 12.2 W with no PD connected, 173.9 W with 150 W PD connected
- Max Heat Dissipation: 41.6 BTU/h with no PD connected, 539.4 BTU/h with 150 W PD connected
|
| Performance | - Packet Buffer Memory: 4.1 Mbit
- Jumbo Frame: 9 KB
- Switching Capacity: 20 Gbps
- Packet Forwarding Rate: 14.9 Mpps
- MAC Address Table: 8 K
|
| Quality of Service | - 802.1p CoS and DSCP priority
- 8 priority queues
- Scheduling modes: SP and WRR
- Queue weight configuration
- Bandwidth control with port and flow based rate limiting
- Storm control for broadcast, multicast and unknown unicast traffic
|
| L2 and L2+ Features | - DHCP relay and DHCP L2 relay
- Static and LACP link aggregation with up to 8 groups
- Spanning Tree Protocol support for STP, RSTP and MSTP
- Loopback detection
- 802.3x flow control
- Port and CPU mirroring with multiple mirroring modes
- DLDP
- LLDP and LLDP-MED
|
| L2 Multicast | - Up to 511 IPv4 and IPv6 multicast groups
- IGMP v1, v2 and v3 snooping with querier and fast leave
- MVR and multicast filtering
- MLD v1 and v2 snooping
- Limited IP multicast profiles
|
| VLAN | - Up to 4K VLAN groups
- 802.1Q tagged VLAN
- MAC VLAN and protocol VLAN
- GVRP
- Voice VLAN
|
| Access Control List | - Up to 230 ACL entries
- Time-based, MAC, IP and IPv6 ACL support
- Permit and deny rule actions
- Mirroring, redirect, rate limiting and QoS remark actions
- Port and VLAN rule binding
|
| Security | - AAA and 802.1X authentication
- RADIUS authentication and accounting
- DHCP, DHCPv6 snooping and ARP inspection
- IP and IPv6 source guard
- DoS protection
- Port security supporting up to 64 MAC addresses per port
- HTTPS and SSH secure management
|
| IPv6 | - IPv6 static routing and ACL
- Dual IPv4 and IPv6 stack
- MLD snooping
- Neighbour discovery and MTU discovery
- Support for IPv6 SNMP, SSH, SSL, HTTP and TFTP
|
| MIBs | - MIB II, Bridge and P/Q-Bridge MIB
- RADIUS authentication and accounting MIB
- Remote ping and traceroute MIB
- RMON MIB groups
- TP-Link private MIBs
|
| Management | - Omada Cloud, Hardware and Software Controller support
- Web-based GUI and CLI via telnet
- SNMP v1, v2c and v3
- Dual image and dual configuration
- System logging, SNTP, EEE and cable diagnostics
|
| Others | - Certifications: CE, FCC, RoHS
- Package contents: TL-SG2210MP switch, power cord, installation guide, rackmount kit, rubber feet
- Operating temperature: 0–50 °C
- Storage temperature: -40–70 °C
- Operating humidity: 10–90% RH
- Storage humidity: 5–90% RH
|

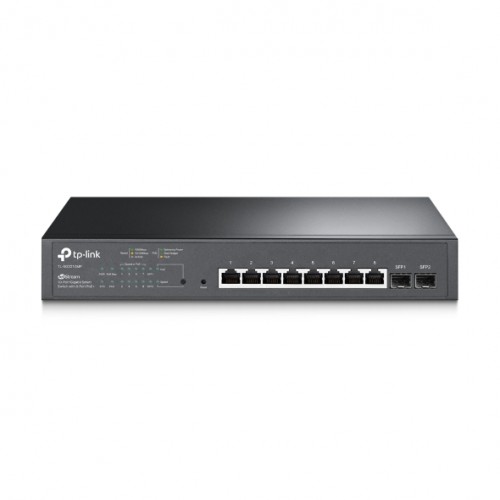

1.0-01_normal_1594869369356n-500x500.jpg "JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+")

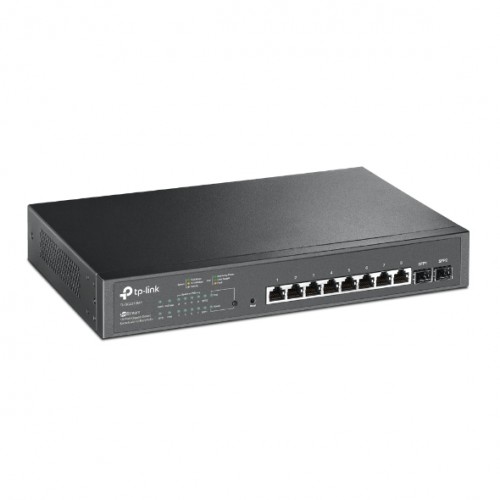

1.0-02_normal_1594869382485k-500x500.jpg "JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+")

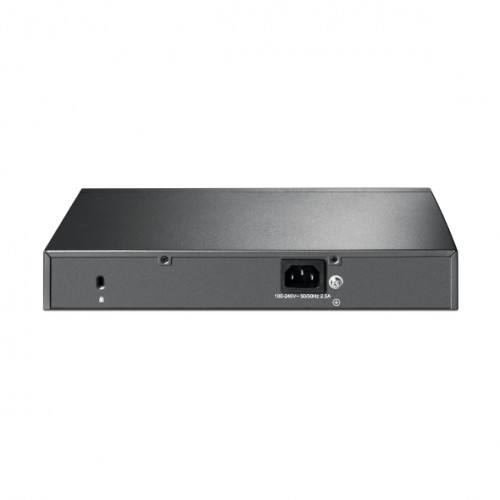

1.0-03_normal_1594869395045g-500x500.jpg "JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+")
