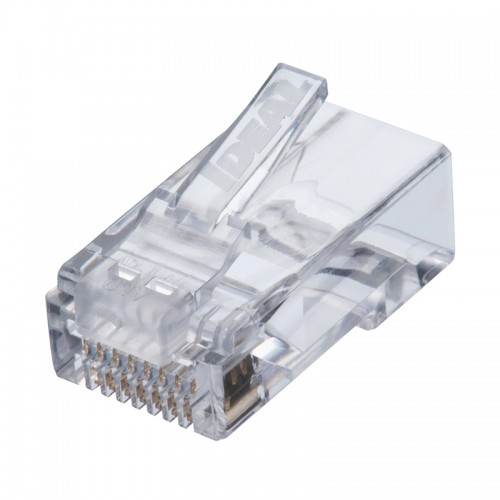

The IDEAL 85-377 pack provides 100 Cat6 feed-through RJ45 modular plugs for installers completing larger structured cabling projects. The feed-through format simplifies conductor alignment and sequence checking before crimping, helping reduce termination errors and support efficient on-site working.
Key Features

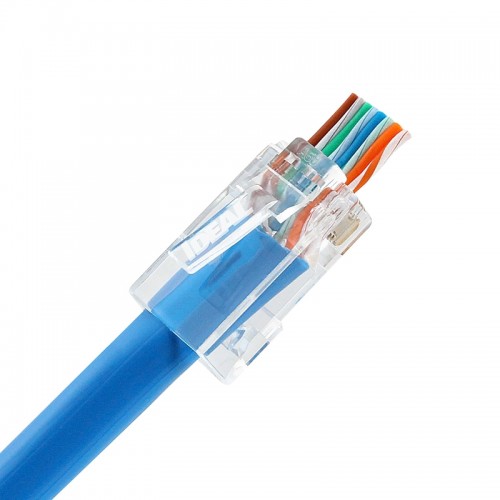

- Feed-Thru, single-piece RJ45 connectors enable fast, simple installation with less wasted materials
- Designed for best performance when used with the IDEAL® FT-45® Crimp Tool (30-495)

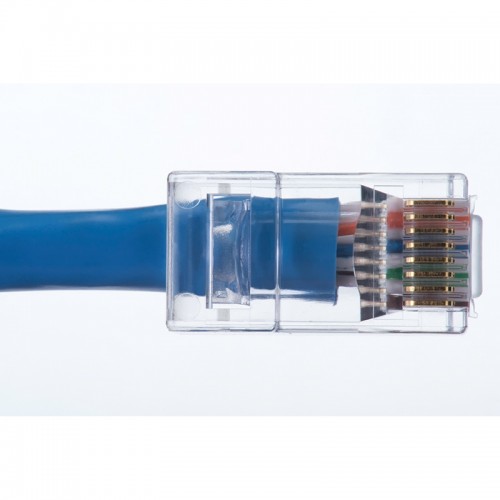

- Feed-Thru design minimizes untwisting of pairs inside the connector body to 1/4″
- 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
- For use with solid or stranded 23-24 AWG insulated copper conductors up to 0.041″ diameter
- Max cable jacket outer diameter of .290″
- UL Listed
- PoE, PoE+ and PoE++ compatible. IEEE 802.3af/at/bt
Manuals & Datasheets
Technical
| Specifications | |
|---|---|
| Feed-Thru | Yes |
| Shielded | No |
| Warranty | Limited 1 Year |
| Impedance | 100 |
| Frequency - Range | 16 MHz to 250 MHz |
| Connector Gender | Male |
| Positions/Contacts | 8P8C |
| Dielectric Diameter - Range | N/A |
| Colour | Clear |
| For Wire Type | Solid, Stranded |
| Jacket Diameter - Range | 0.200″ to 0.290″ |
| Insulated Conductor Range | 0.032″ to 0.041″ |
