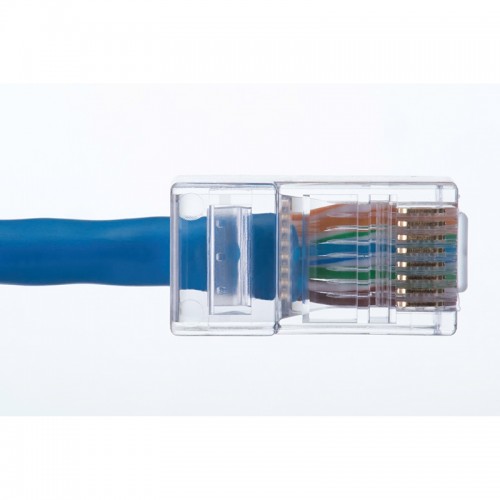

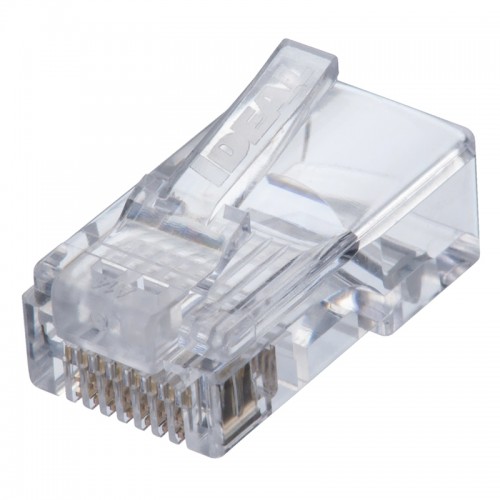

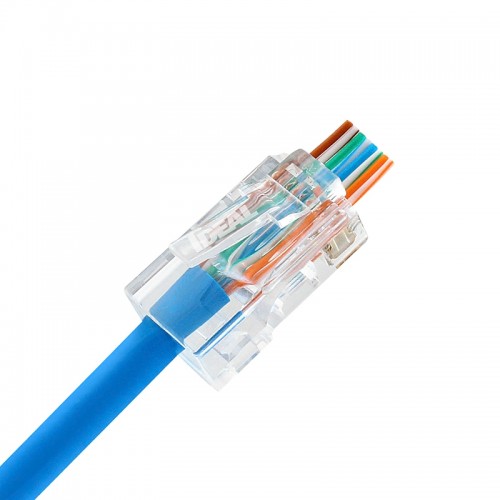

The IDEAL 85-372 pack contains 100 Cat5e feed-through RJ45 modular plugs for higher-volume data cabling installations. Their feed-through design allows the conductor sequence to be checked before crimping, helping installers improve termination accuracy and maintain a consistent workflow across larger projects.
Key Features
- Feed-Thru, single-piece RJ45 connectors enable fast, simple installation with less wasted materials
- Designed for best performance when used with the IDEAL® FT-45® Crimp Tool (30-495)
- Feed-Thru design minimises untwisting of pairs inside the connector body to 1/2″
- 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
- For use with solid or stranded 23-24 AWG insulated copper conductors up to 0.041″ diameter
- Max cable jacket outer diameter of .270″
- UL Listed
- PoE, PoE+ and PoE++ compatible. IEEE 802.3af/at/bt
Manuals & Datasheets
Technical
| Specifications | |
|---|---|
| Feed-Thru | Yes |
| Shielded | No |
| Warranty | Limited 1 Year |
| Impedance | 100 |
| Frequency - Range | 16 MHz to 100 MHz |
| Connector Gender | Male |
| Positions/Contacts | 8P8C |
| Dielectric Diameter - Range | N/A |
| Colour | Clear |
| For Wire Type | Solid, Stranded |
| Jacket Diameter - Range | 0.180″ to 0.270″ |
| Insulated Conductor Range | 0.032″ to 0.041″ |
