The Omada EAP723 is a business‑class Wi‑Fi 6 access point designed to deliver fast, reliable wireless connectivity for modern office and commercial environments. Ideal for small to medium deployments, it provides improved efficiency, higher capacity, and smoother performance compared to previous‑generation Wi‑Fi.
Powered by Wi‑Fi 6 technology, the EAP723 supports faster data rates, lower latency, and improved performance in environments with multiple connected devices. Features such as OFDMA and MU‑MIMO help optimise bandwidth usage, ensuring stable connectivity for everyday business applications including collaboration tools, cloud services, and voice or video traffic.
Fully integrated with the Omada SDN platform, the EAP723 supports cloud‑based management, centralised configuration, and real‑time monitoring from a single interface. With enterprise‑grade security, seamless roaming, and intelligent RF management, it delivers a consistent and secure wireless experience. The Omada EAP723 is a practical, cost‑effective Wi‑Fi 6 solution for offices, education, retail, and hospitality deployments that require dependable performance and simple centralised control.
Features
- BE3600 Dual-Band Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).
- 1× 2.5G port unlocks the full potential of Wi-Fi 7.
- 160 MHz bandwidth enables many more simultaneous transmissions.
- Multi-Link Operation and Multi-RUs ensure the high performance of your network.
- Centralised management, Mesh, and Seamless Roaming.
Kit Contents
- EAP723
- Installation Guide
- Ceiling/Wall/Junction Box Mounting Kits
- Power Adapter NOT included.
Manuals & Datasheet
Technical
| Category | Specification |
|---|
| Hardware Features | - Interface: 1 × 2.5G Ethernet port

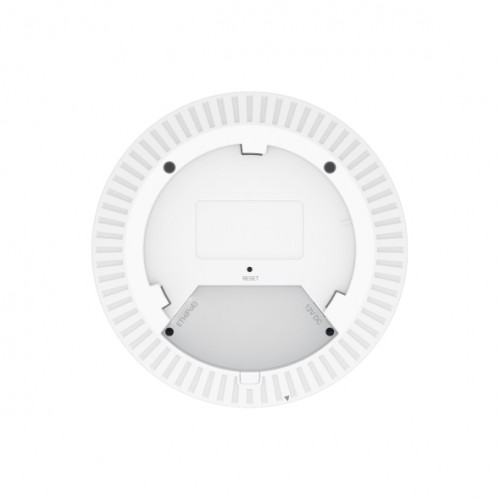

- Button: Reset
- Power Supply: 802.3at PoE or 12 V DC / 1.5 A, power adapter not included
- Max Power Consumption: 16.8 W via PoE, 13.0 W via DC
- Dimensions (W × D × H): 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)
- Antenna: 2 × 4.0 dBi at 2.4 GHz, 2 × 5.0 dBi at 5 GHz

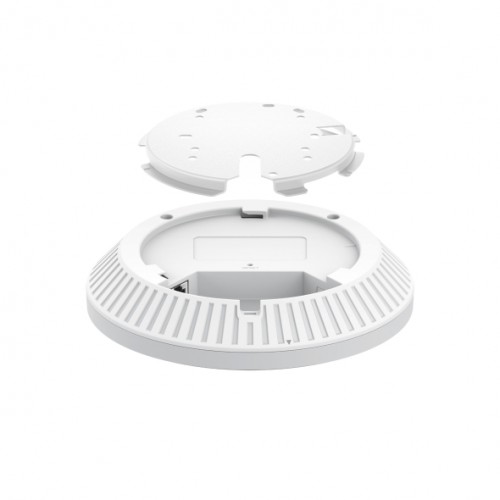

- Mounting: Ceiling, wall or junction box mounting with kits included
|
| Wireless Features | - Coverage: Up to 140 m² (1500 ft²)
- Concurrent Clients: 250 or more
- Wireless Standards: IEEE 802.11 a, b, g, n, ac, ax and be
- Frequency Bands: 2.4 GHz and 5 GHz
- Wireless Speed: 688 Mbps at 2.4 GHz, 2882 Mbps at 5 GHz
- Advanced Wireless: MLO, 4K QAM, EHT160, OFDMA and BSS colouring
- Optimisation: Seamless roaming, mesh support, load balance, band steering, beamforming and airtime fairness
- SSID Support: Up to 16 SSIDs, 8 per band
- Scheduling: Wireless schedule and reboot schedule
- QoS: WMM QoS with rate limiting
- Authentication: RADIUS accounting and MAC authentication
|
| Wireless Security | - Captive portal authentication
- Access control and client isolation
- MAC filtering supporting up to 4000 entries
- VLAN support and rogue AP detection
- Encryption: WPA, WPA2 and WPA3 personal and enterprise
|
| Transmission Power | - 2.4 GHz: Below 20 dBm EIRP
- 5 GHz: Below 23 dBm EIRP for bands 1 and 2, below 28 dBm EIRP for band 3
|
| Management | - Omada App support
- Centralised management via Omada cloud based controller, hardware controller or software controller
- Cloud access requires an Omada controller
- Email alerts and LED on or off control
- Management MAC access control
- SNMP v1, v2c and v3
- Local and remote syslog support
- Web based management interface
|
| Others | - Certifications: CE, FCC, RoHS and IC
- Package contents: EAP723, installation guide and ceiling, wall and junction box mounting kits
- Power adapter not included
- Operating temperature: 0–40 °C
- Storage temperature: -40–70 °C
- Operating humidity: 10–90% RH non condensing
- Storage humidity: 5–90% RH non condensing
|
