The Vandal Resistant GSM is manufactured from brushed stainless steel (2.5mm thick) and is available in the vandal resistant 4000 series modular range (including a nameplate version VR4KGSM-1NP) and also the VR120 series and bespoke vandal resistant series.
Vandal Resistant GSM audiokits are available for single call button applications up to 12 button kits (expandable up to 24 buttons when combined with VR4K series button expansion modules) and all have the facility to divert to additional numbers if the first is busy or unanswered (1 primary and 3 divert numbers).
The audiokits have all the original features of the previous GSMVRK series kits and now include new programming features such as: programming a primary number and 3 divert numbers in a single text, programming multiple dial to open numbers (up to 5 max.) in a single text, 10 access control timebands, 10 free access timebands and access level assignment (up to 10).
Programming can be carried out by SMS text messaging or via a PC using the GSMSK software (connected via the micro USB port) or by using Videx’s new smartphone SMS wizard App. The App is available to download for free from Google Play (for android devices) or from the App. Store (for iOS devices). The GSM intercom includes an exit button input, auxiliary input and output, dry contact relay (C, NO and NC) and can be powered using 12Vdc.
In addition the vandal resistant GSM intercom includes an off-board proximity access control input to allow for a Wiegand proximity reader (VR4KPPM) to be connected should proximity access be required for an installation (for up to 1000 users).
Call progress can be followed on the three call progress LED’s (speak, busy and door open). In addition the facility to connect the display interface module (VR4KDM) is included to work along side the call progress LED’s by offering both voice annunciation and call progress indication on the 2 line, 16 character LCD display.
An event log (up to 4000 stored events) is maintained within the GSM module and can be downloaded via the USB port using the PC software which includes many features to simplify the installation and programming process.
Features
- 1 button up to 12 button kits available ( surface or flush )
- Expandable up to 24 call buttons
- 4 telephone numbers per call button (1 primary and 3 diverts)
- 1000 dial to open numbers (which can each be assigned to an access level)
- 1 programmable call button timeband
- Up to 10 programmable access control timebands
- Up to 10 programmable free access timebands
- Up to 10 programmable access levels
- Vandal Resistant 316 grade brushed stainless steel (2.5mm thick)
- DDA compliant voice annunciation and call progress LED's
- Micro USB connection (for ease of programming)
- 1 auxiliary input and 1 auxiliary output
- 1 dry contact relay output (C, NO and NC) and 1 exit button input (push to make, switched 0V input)
- Programming by SMS, GSMSK PC software or the new Videx smartphone SMS wizard App.
- Micro USB connection (for ease of programming using the GSMSK software)
- Connection for Wiegand proximity access control (VR4KPPM)
- Connection for display interface module (VR4KDM)
- Event log for up to 4000 events

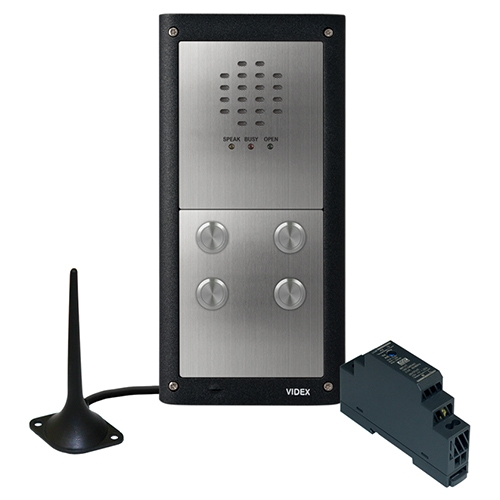

Kit Contains
- 1x Intercom
- 1x Audiophone
- 1x PSU
Technical
- Number of entrances: 1
- Lock output: Dry contact relay (C, NO, NC)
- Auxiliary outputs: 1 x Open collector
- Auxiliary inputs: 1
- Dial in to open numbers: 1000
- Programmable timebands: Yes, 1x call button timeband, 10x access control timebands and 10x free access timebands
- Access levels: yes, up to 10 programmable access levels
- Divert calls per button: 1 to 3 numbers each
- Power supply: 12Vdc power input
- Programming methods: SMS text, GSMSK PC software or Videx’s smartphone SMS wizard App.
- USB connection: Yes, micro USB
- Event logging: up to 4000 Events
- PSU model: HDR-15-12 (12Vdc, 1.25A)
- Antenna model: 432 (inc. L bracket and fixings, 5m cable)
- Amplifier module: VR4KGSM-0, VR4KGSM-1, VR4KGSM-2 and VR4KGSM-3 depending on GSM kit, (requires standard size SIM, not supplied)
- Mounting: appropriate 4000 series surface or flush back box
- Connection facility for Wiegand proximity access control (VR4KPPM reader)
- Connection facility for display interface module (VR4KDM)
- Expandable: Yes, up to 24 buttons using a combination of VR4K series button expansion modules
Videx VR4K Flush Mounted Vandal Resistant GSM Audio Kits - 1 to 10 Users
- Brand: Videx
- Product Code: VR4Kx/GSM
- Availability: Discontinued
Please Contact Us for assistance.
