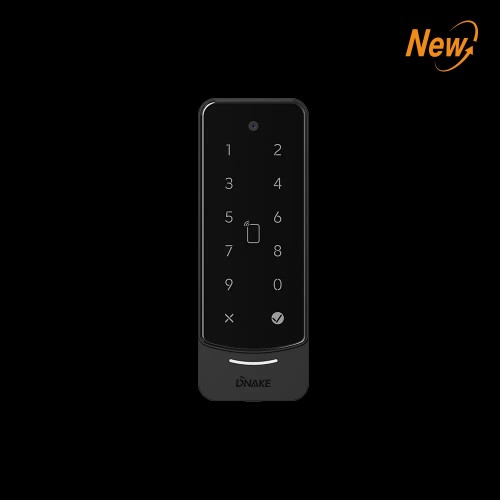

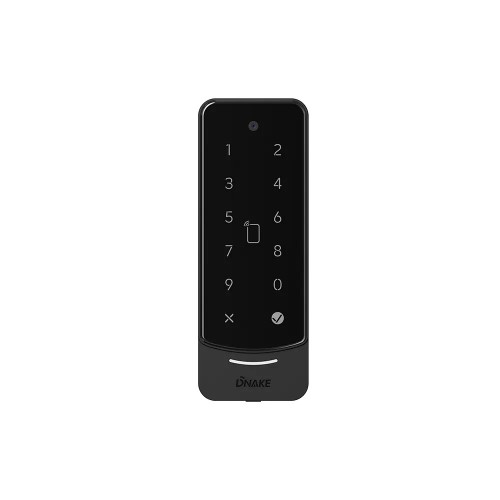

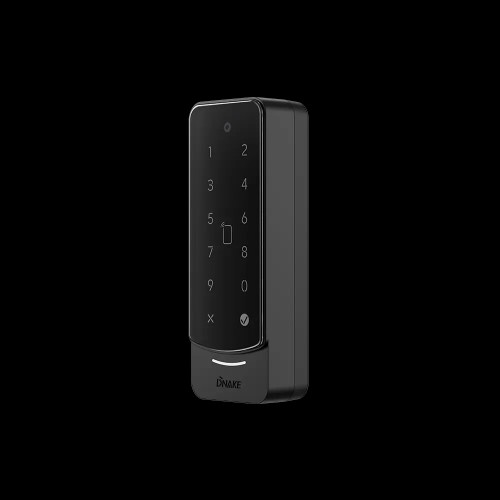

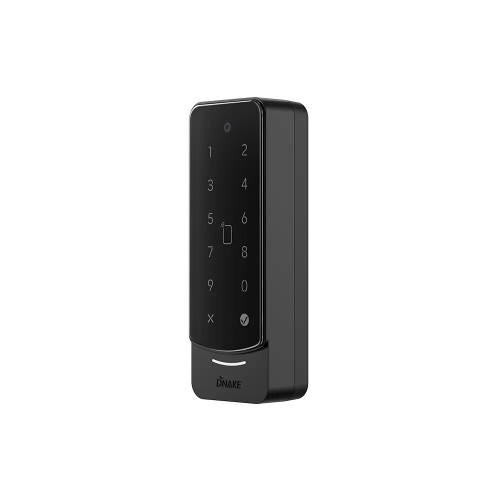

DNAKE AC02C Access Control Terminal
The DNAKE AC02C is a sleek, high-performance access control terminal designed for secure and versatile entry management.

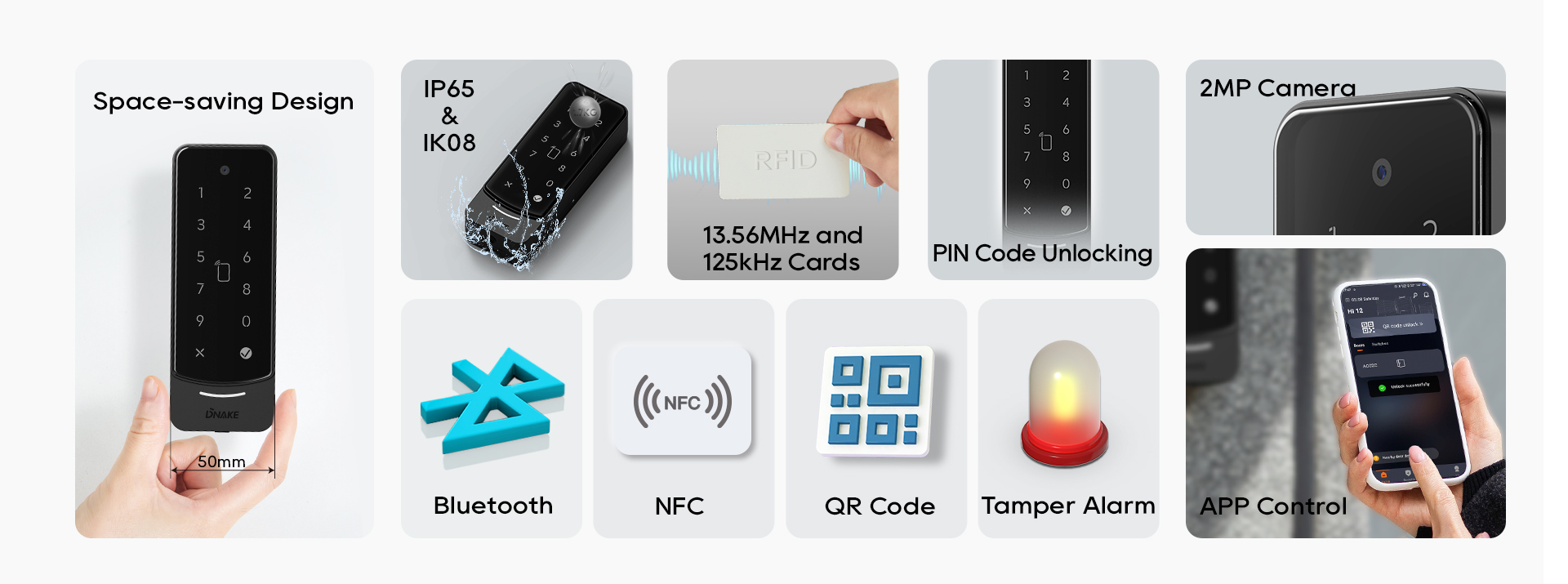

- Built from durable aluminium alloy
- 2 MP HD Camera
- 2.5D tempered glass, it offers a modern look and lasting strength.

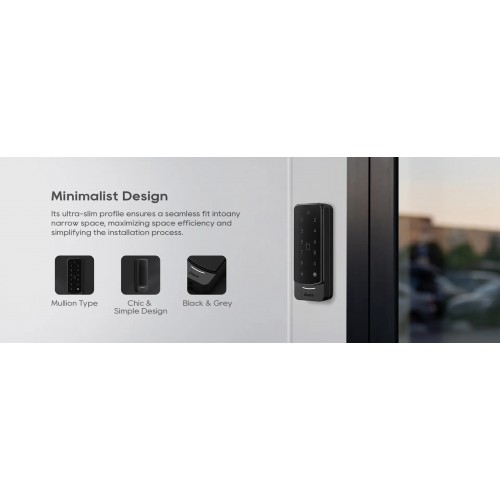

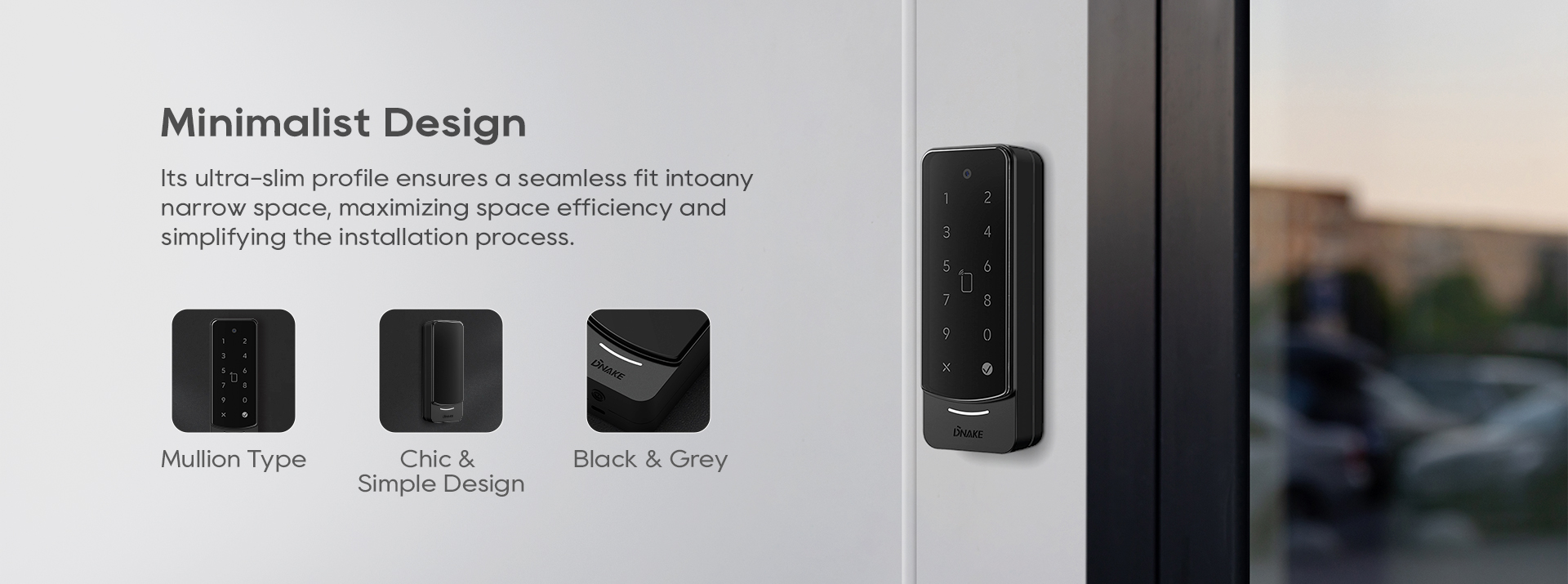

- Slim 50mm design: making it perfect for installation in narrow spaces.

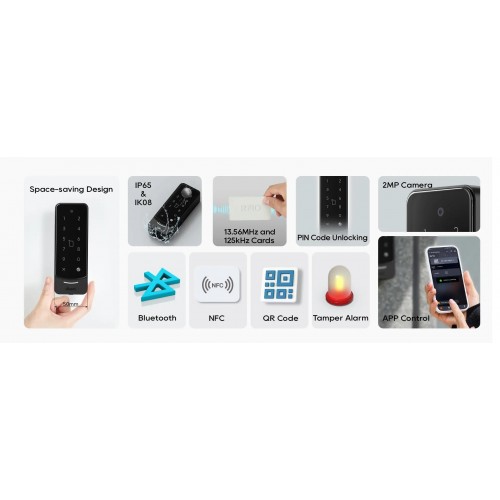

- Rated IP65 and IK08: this control terminal delivers reliable operation in both indoor and outdoor environments.

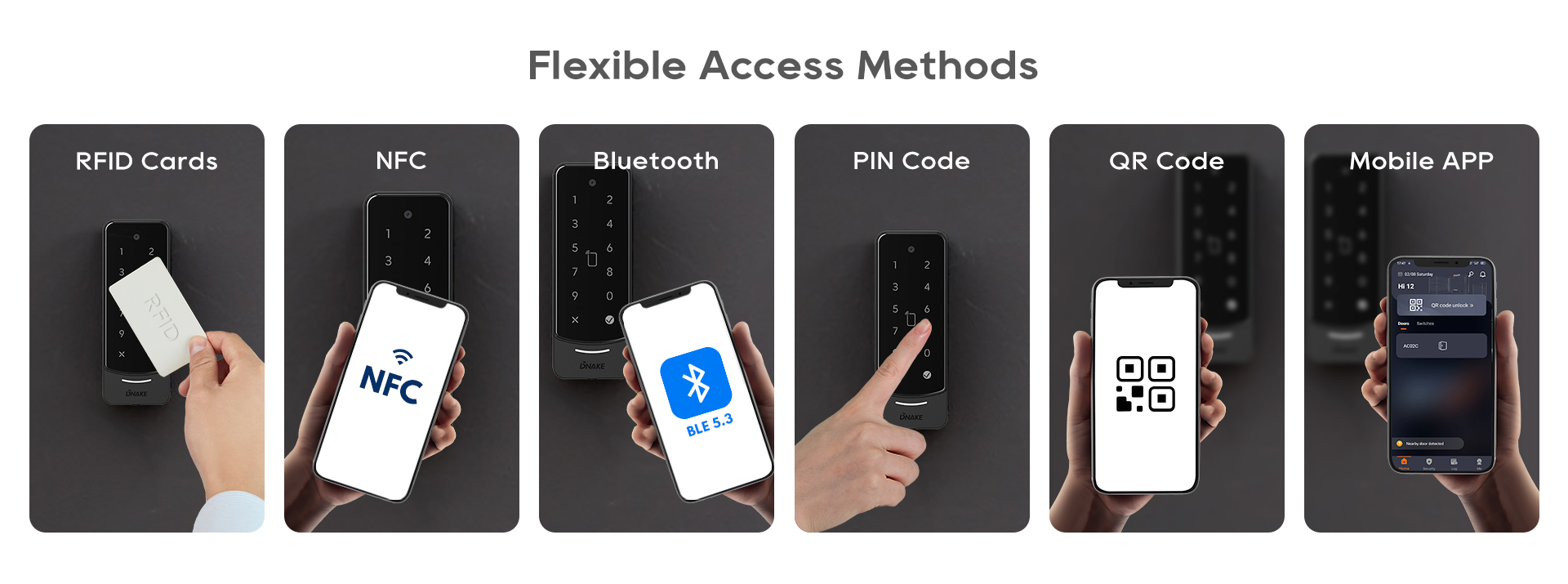

- Supports multiple access methods: including RFID cards, PIN codes, NFC, Bluetooth QR Code and mobile app, ensuring flexibility for any user.
- Security is enhanced with MIFARE Plus SL1/SL3 encrypted cards: its large capacity handles up to 60,000 cards and 100,000 event logs.

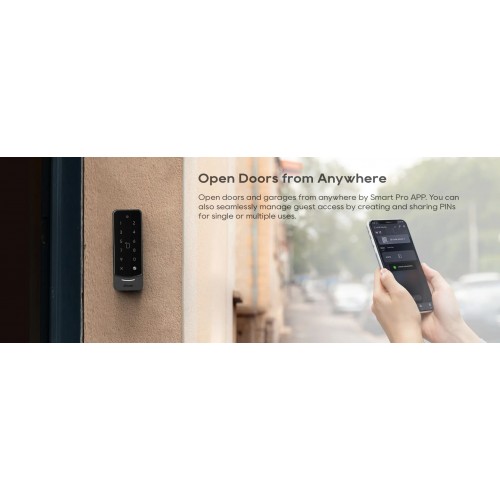

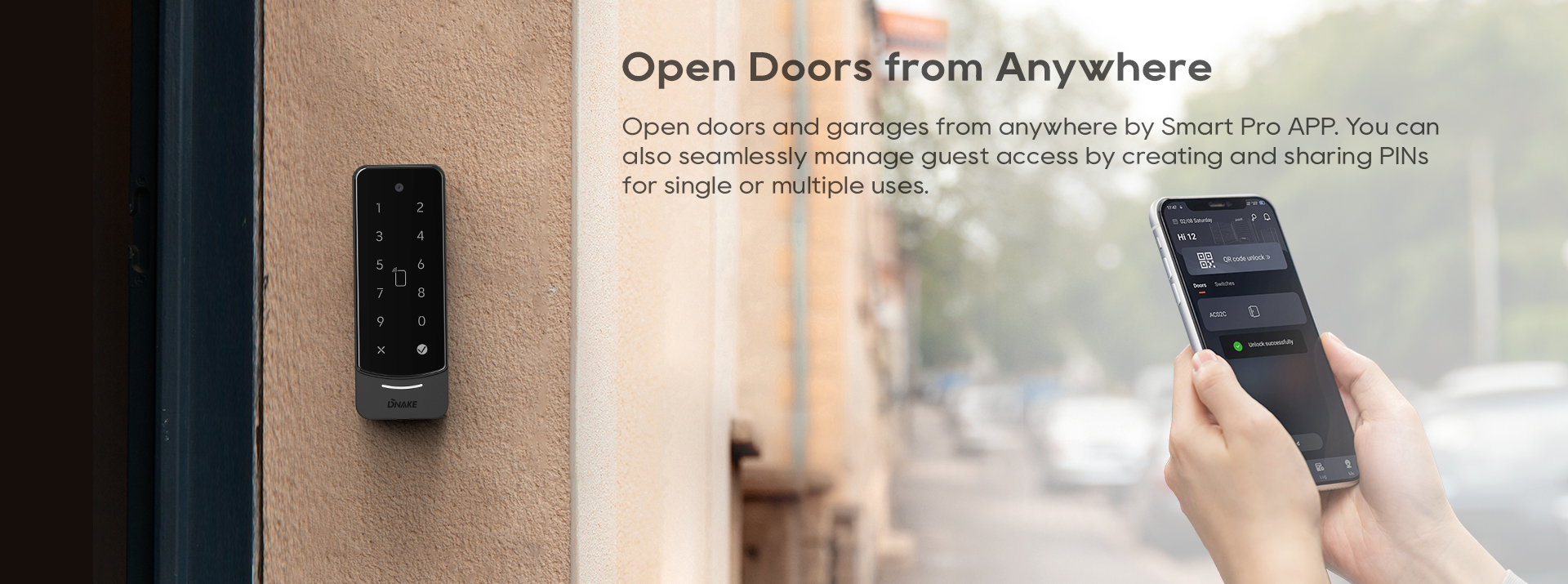

- The cloud-based management portal allows for easy remote configuration and updates.
- Power can be supplied via PoE or DC 12V.
- With Wiegand and RS485 support, tamper alarm, and surface or flush mounting options, the DNAKE AC02C is designed for seamless integration and dependable protection.
| Dimensions | |
| Dimensions | 137 x 50 x 27 mm |
| Network | |
| Ethernet Port | 1 x RJ45, 10/100 Mbps adaptive |
| Performance Data | |
| Storage Temperature | -40℃ to +70℃ |
| Working Humidity | 10%-90% (non-condensing) |
| Working Temperature | -40℃ - +55℃ |
| Safety Relay Data | |
| Input | 2 |
