DNAKE Expansion Module B17-EX002/S
Click Image for Gallery
DNAKE Expansion Module B17-EX002/S DNAKE Expansion Module B17-EX002/S DNAKE Expansion Module B17-EX002/S DNAKE Expansion Module B17-EX002/S

DNAKE Expansion Module B17-EX002/S

This product is an expansion module for your video door entry system, compatible with SIP Video Door Phone S213M/S213K.

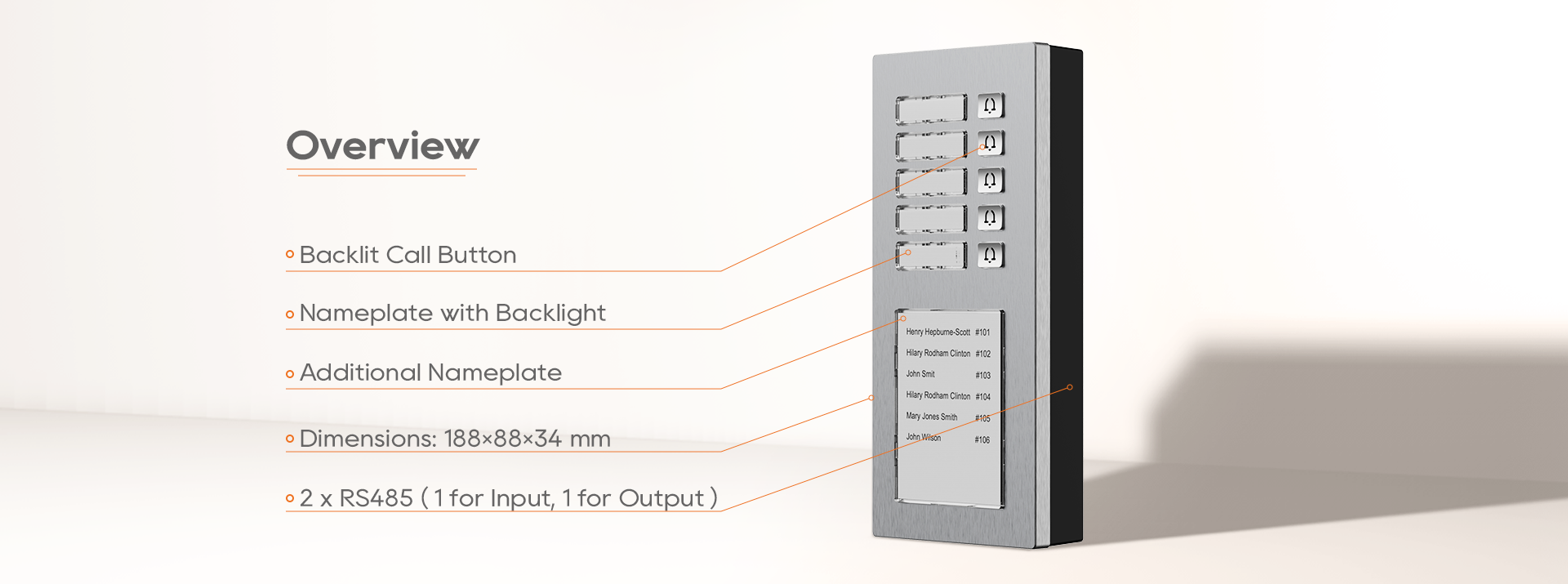

Features

  • Aluminium alloy surface
  • 10 call buttons
  • Nameplate and buttons feature backlight

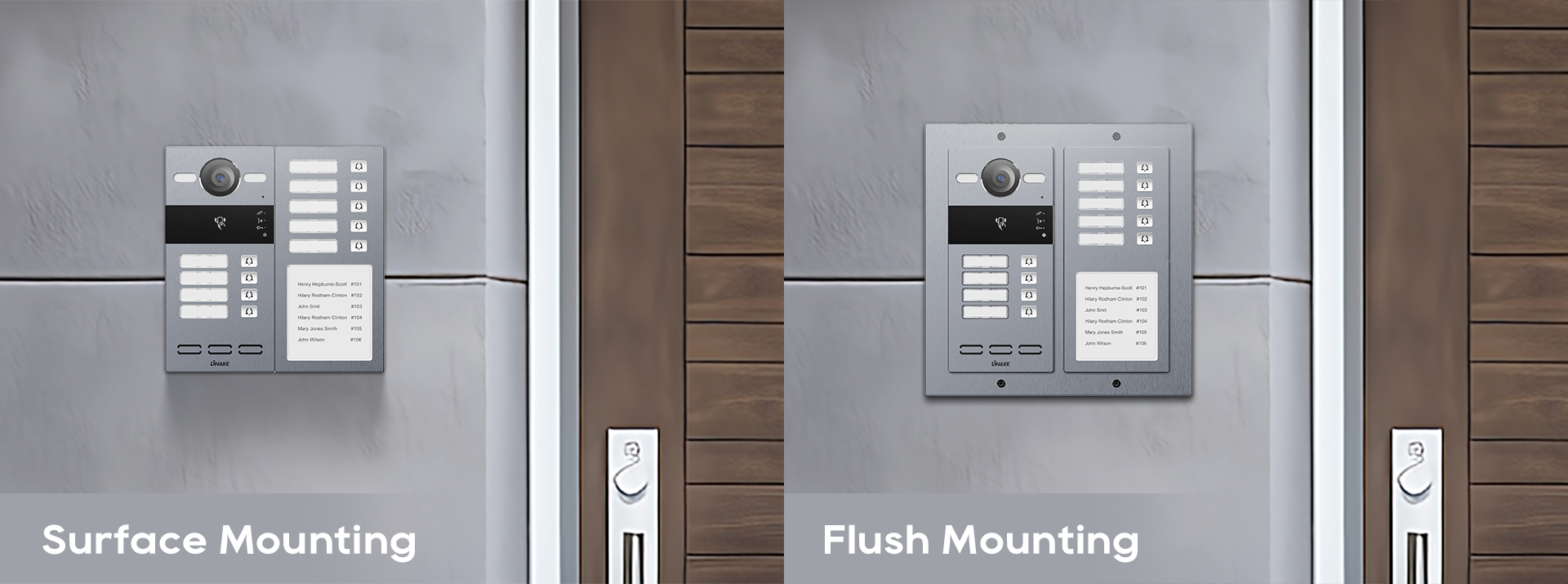

  • Supports surface and flush mounting
  • IP rating 65, waterproof and dustproof


Datasheet

Miscellaneous Attributes
Miscellaneous Attributes
MaterialAluminum
Power SupplyDC 12V
Rated Power1W
Standby Power1W
RS4852 (1 for input, 1 for output)
Dip Switch4
Dimension188 × 88 × 34 mm
Working Temperature-40℃ to +55℃
Storage Temperature-40℃ to +70℃
Working Humidity10% to 90% (non-condensing)

DNAKE Expansion Module B17-EX002/S

  • Brand: DNAKE
  • Product Code: B17-EX002/S
  • Availability:  In Stock
