AES Modular Hard Wired Intercoms

AES Modular Hard Wired Intercoms

AES Modular Intercom Systems

The AES Modular range introduces a revolutionary intercom system that can be custom built to match your requirements, no matter how small or large they may be. There are a wide array of modules available, with Modular shells available in 1/2/3/4/6/9 slots, to create a Modular intercom system that is truly your own design.

For pricing enquires, advise or further information regarding the AES Modular range, please contact us.

AES Modular Range Compilation

Benefits of a Modular Intercom System

Thanks to the immense flexibility of a modular intercom system, you can create an access control solution that is tailored to your needs. There is no need to install separate devices for keypad or proximity reader entry, as you can integrate them all into one intercom system. Not only is this convenient, it is also cost effective and more aesthetically pleasing to the eye.

Flexibility

Huge flexibility
Multiple

Multiple access methods in one
Cost

Cost effective
Appearance

Modern, tidy appearance

Available Modules

With a modular intercom system, you have the power to mix and match from a range of modules such as keypads and more.

Some examples of available modules include,

lluminated Keypad Module

lluminated Keypad Module
Keypad and Proxy Reader

Combined Keypad & Proximity Reader Module
Vigik Module

Module for Vigik Cut Out

Modular Hard Wired Audio Intercoms

We offer a range of modular hard wired audio intercom systems suitable for commercial and residential installations.

AES Slim Modular Hard Wired Audio Intercom

Key Features

  • Hard wired audio intercom system that communicates over either a CAT5 ethernet cable or a telecoms wire
  • Supports up to 4 handsets per system, great for easily answering calls throughout your home
  • Ideal for a single household / property
  • Elegant handsets with a curved profile, available in black or white finish
  • Achieves a typical cabled range of 150m, providing long-distance communication between the intercom and handsets
  • Power supplies included for both intercom and handsets (24V DC 2A for intercom, 12V DC for handsets)



Installation Examples


Ideal for smaller installations

Slim mod box 1x1

Slim Intercom (MOD-1x1)

With Speech Panel Only

Ideal for medium sized installations

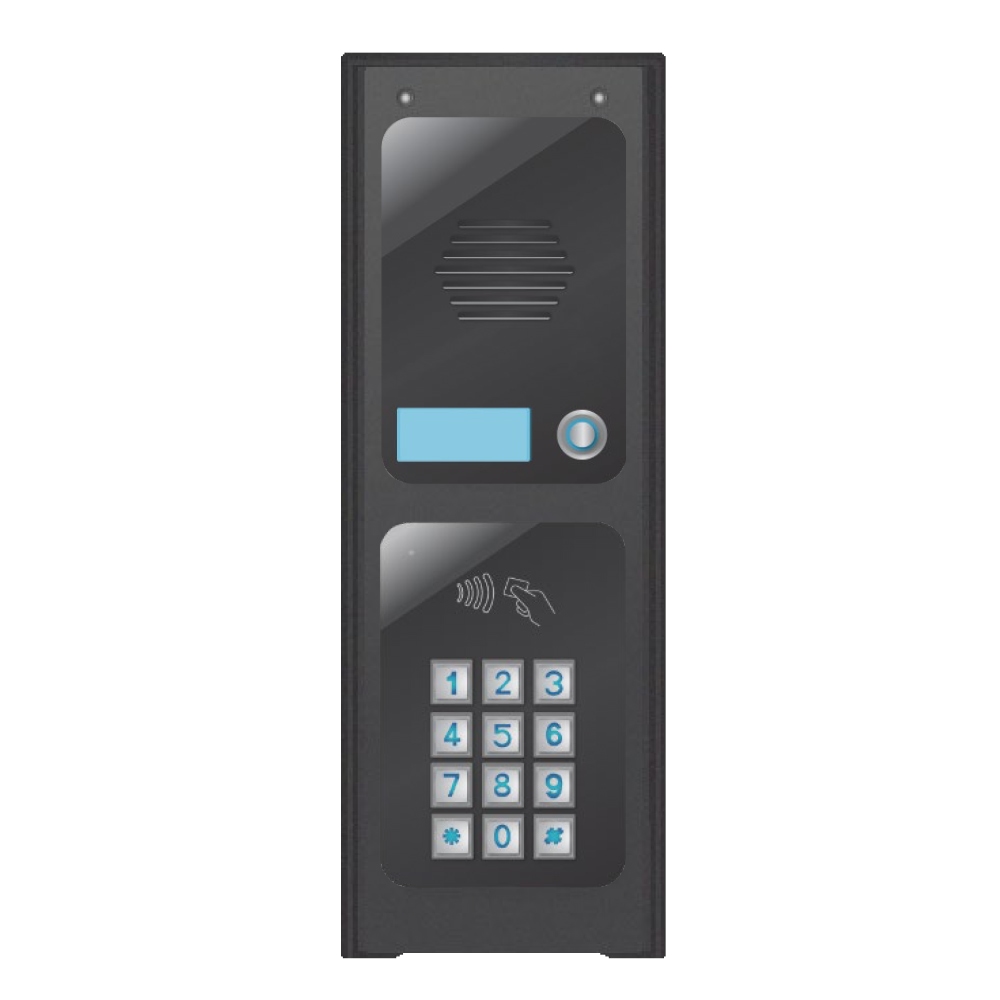

Slim mod box 1x2

Slim Intercom (MOD-1x2)

With Speech Panel and Combined Keypad & Proximity Reader

Ideal for larger installations

Slim mod box 1x3

Slim Intercom (MOD-1x3)

With Speech Panel, Keypad and Vigik Cut Out

For more information about available Modular parts and features, please click "more info" below.




Accessories

Add up to 3 extra handsets to any kit (total 4 per system) for larger homes or premises.



AES SLIM-HF-EH-B

AES SLIM-HF-EH-B

Hands-free Audio Handset

AES SLIM-HF-EH-W

AES SLIM-HF-EH-W

Hands-free Audio Handset

AES SLIM-CL-EH-B

AES SLIM-CL-EH-B

Wired Audio Handset

AES SLIM-CL-EH-B

AES SLIM-CL-EH-W

Wired Audio Handset

Modular Hard Wired Video Intercoms

We offer a range of modular hard wired video intercom systems suitable for commercial and residential installations.

AES StylusCom Modular Hard Wired Video Intercom

Key Features

  • Hard wired video intercom system that communicates over CAT5 ethernet cable
  • Supports up to 4 video monitors per system, great for easily answering calls throughout your home
  • Ideal for a single household / property
  • Combines access control and CCTV into one tidy package
  • Achieves a typical cabled range of 300m, providing long-distance communication between the intercom and monitors
  • For some applications, an external camera can be connected to the master speech panel
  • With the wall-mounted connection panel, it's simple to wire up any monitors
  • Supplied with a 24V DC 2A power supply for the intercom
  • Two gates and two CCTV cameras may be connected to a total of four monitors



Installation Examples


Ideal for smaller installations

Slim mod box 1x1

StylusCom Intercom (MOD-1x1)

With Speech Panel Only

Ideal for medium sized installations

Slim mod box 1x2

StylusCom Intercom (MOD-1x2)

With Speech Panel and Keypad

Ideal for larger installations

Slim mod box 1x3

StylusCom Intercom (MOD-1x3)

With Speech Panel, Combined Keypad & Proximity Reader and Vigik Cut Out

For more information about available Modular parts and features, please click "more info" below.




Accessories

AES Stylus 4.3

AES Stylus 4.3

4.3inch Indoor Monitor

  • An additional monitor for larger homes (add up to 3 monitors. 4 in total)
  • Wall mountable, hands-free design
  • Touch-sensitive buttons
AES Stylus-Dome

AES Stylus-Dome

Dome Shaped Camera

  • Day/Night Vision with a 10 metre
    night range.
  • 700 TVL.
  • 4mm fixed lens.
AES Stylus-Bullet

AES Stylus-Bullet

Bullet Shaped Camera

  • Day/Night Vision with a 10 metre
    night range.
  • 700 TVL.
  • 4mm fixed lens.
