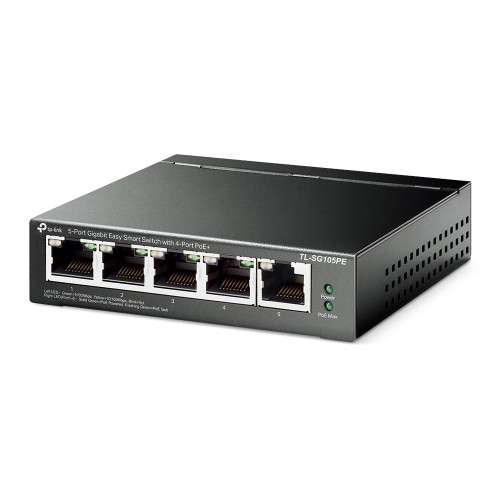

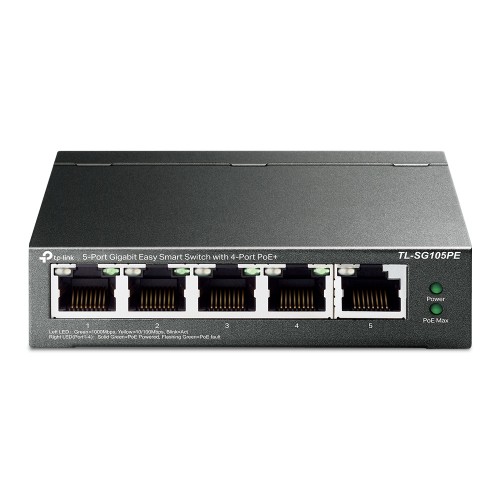

The TP-Link TL-SG105PE is a compact 5-port Gigabit Easy Smart PoE+ switch designed for small businesses, offices, CCTV systems and network installations. It provides four PoE+ ports, allowing compatible devices such as IP cameras, wireless access points and IP phones to receive both power and network data through a single Ethernet cable.
With a 65 W total PoE power budget and up to 30 W per PoE port, the TL-SG105PE offers a simple and efficient solution for powering multiple network devices. Its fanless design provides quiet operation, while built-in smart management features provide greater control over network traffic, VLANs and connected PoE devices.
Key Features
- Five 10/100/1000Mbps RJ45 ports
- Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data and power can be transferred on one single cable
- Supports PoE power up to 65 W for all PoE ports
- Provides network monitoring, traffic prioritisation, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
Kit Contents
- 1 x TP-Link TL-SG105PE Switch
- 1 x Power Adapter
- 1 x Installation Guide
- 4 x Rubber Feet
Manuals & Datasheets
Technical
| HARDWARE FEATURES | |
|---|---|
| Standards & Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at |
| Interface | Five 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media |
|
| Fan Quantity | Fanless |

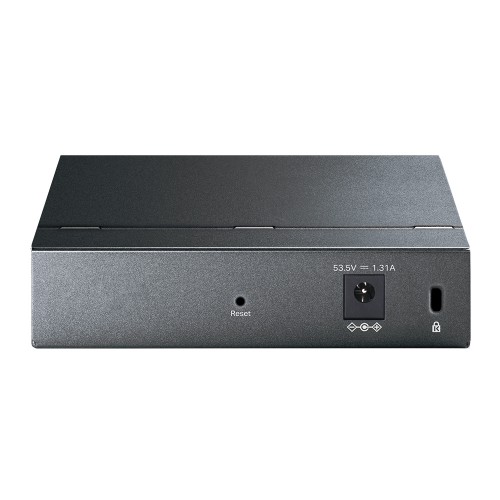

| Power Supply | External Power Adapter (Output: 53.5 VDC/1.31 A) |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 65 W |
| Dimensions (W x D x H) | 3.9 x 3.9 x 1.0in (99.8 x 98 x 25mm) |
| Max. Power Consumption | 4.52 W (220V/50Hz with no PD connected) 75.16 W (220V/50Hz with 65 W PD connected) |
| Max. Heat Dissipation | 15.41 BTU/h (with no PD connected) 256.30 BTU/h (with 65 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 10Gbps |
| Packet Forwarding Rate | 7.44Mbps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1.5Mb |
| Jumbo Frame | 16KB |
| SOFTWARE FEATURES | |
| Quality of Service |
|
| L2 Features |
|
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Management Features | Web-based GUI Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 102°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
