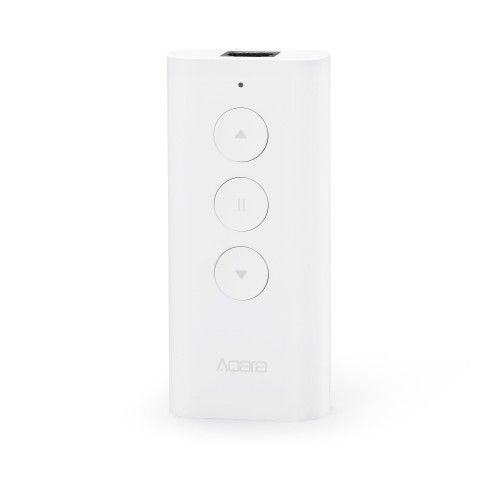

Aqara Smart Roller Shade Motor / Controller

Open or close the curtains via your smartphone, cube controller, or wireless switch

The Aqara Smart Roller Shade Controller is an electric smart curtain motor, which can automate ordinary roller blinds, Shangri-La blinds and other curtains. It has a built-in Zigbee wireless communication module. Paired with a hub device, it can realise functions such as remote control, timing opening and closing of curtains, and smart connection of several devices.

Features:

  • Customise Opening/Closing Position: You can save your favourite opening percentages via smart scenes and switch between them easily.
  • All-Round Compatibility: Supports the most popular voice assistants and ecosystems.
  • Schedules: Your shades will open and close at a specified time of the day, for example, right before your alarm clock.
  • Smart Home Automation: Can be triggered by sensors such as Illumination, Motion, Door and Window Sensor, and more.
  • One Button Control: Can be fully controlled by a single button such as the Wireless Mini Switch.
  • Various Blind Types of Support: Apart from regular roller blinds, dual and sheer shades are also supported.
  • Zigbee Protocol: Enjoy the benefits of the fastest, most stable, and energy-efficient smart home technology.
  • Projector Screen Support: Your screen will be automatically lowered when you turn on the projector.

* Aqara hub is required

** Additional fittings are required and should be purchased separately

Specifications:

  • Product name: Aqara Smart Roller Shade Controller
  • Product model: SRSC-M01
  • Rated voltage: 220-230V~ 50Hz
  • Rated power: 121W
  • Rated current: 0.53 A
  • Executive standard: Q/QLML016
  • Operating temperature:-10°C~+40°C
  • Operating humidity: 10%~95% RH, non-condensing
  • Pipe diameter: 35mm
  • Rated torque: 8N·m
  • Rated rotor speed: 17 r/mi
  • Wireless connection: Zigbee
  • Working system: S2 4min
  • Zigbee Operation Frequency: 2405-2480 MHz
  • Zigbee Maximum Output Power: ≤13 dB
Details
Product TypeAqara Controller
Attributes

Product name: Aqara Smart Roller Shade Controller

Product model: SRSC-M01

Rated voltage: 220-230V~ 50Hz

Rated power: 121W

Rated current: 0.53 A

Executive standard: Q/QLML016

Operating temperature:-10°C~+40°C

Operating humidity: 10%~95% RH, non-condensing

Pipe diameter: 35mm

Rated torque: 8N·m

Rated rotor speed: 17 r/mi

Wireless connection: Zigbee

Working system: S2 4min

Zigbee Operation Frequency: 2405-2480 MHz

Zigbee Maximum Output Power: ≤13 dB

Aqara Smart Roller Shade Motor / Controller

  • Brand: Aqara
  • Product Code: SRSC-M01
  • Availability:  In Stock
