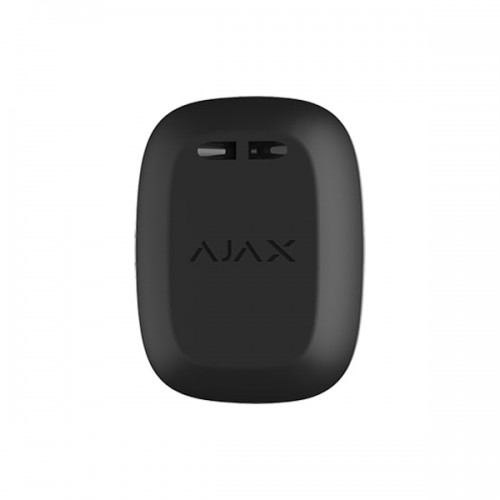

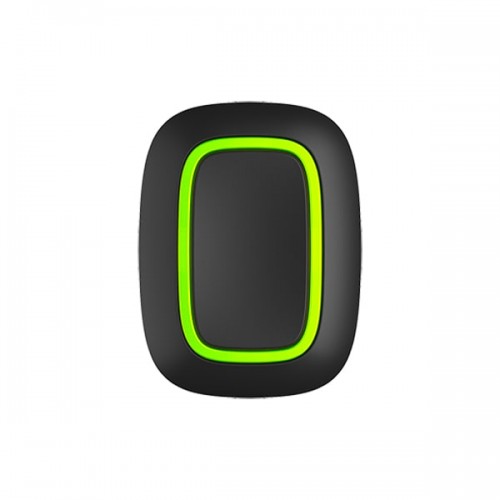

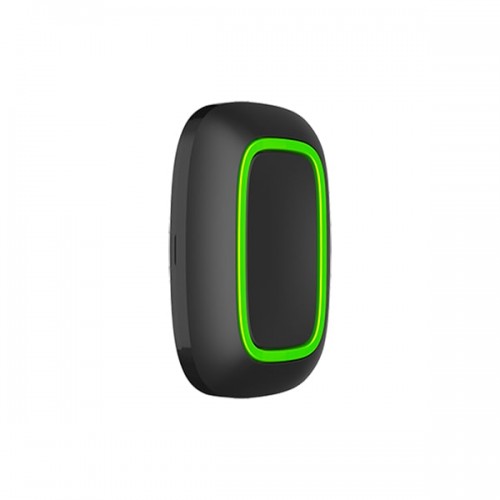

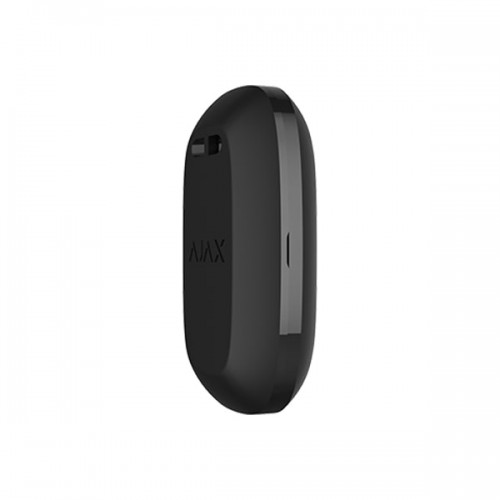

Ajax panic button communicates with a hub using Jeweller radio protocol on a distance of up to 1300 m. Once it delivers an alarm, you’ll see a green blink. Jeweller encrypts all of the transmitted data. In case of signal interference or radio jamming, Ajax system switches the radio frequency and notifies you as well as the security company about the situation.
The Ajax Button comes with:
- Button
- Pre-installed CR2032 battery
- Double-sided tape
- Quick Start Guide
Features of the Ajax Button:
- Accidental click protection.
- Ready to work out of the box for up to 5 years.
- Up to 1300 m communication range.
- Protected from dust and splashes.
- IP55 enclosure protection class
Manuals & Datasheets
| Details | |
| Product Type | Button |
| Device Colour | Black |
| Number of Buttons | 1 |
| Dimensions | |
| Dimensions | 47 х 35 х 13 mm |
| Weight (g) | 16 |
| Electrical Data | |
| Battery Life (Estimated) | Up to 5 years (depending on frequency of use) |
| Frequency Range | 868.0 – 868.6 MHz or 868.7 – 869.2 MHz, depending on the region |
| Power Supply | 1 CR2032 battery, 3 V |
| Performance Data | |
| Operating Humidity | Up to 75% |
| Operating Temperature | From -10°С to +40°С |
| Technical | |
| Protection Level (IP) | IP55 |
