V2 Vulcan ECD 230v 3.5m Twin Gate with Encoders - 800Kg

This Vulcan D kit by V2 is a 230Vac underground gate automation kit with irreversible electromechanical motors for double leaves swing gates of up to 3.5m in length and 800Kg of weight. Their standard opening is 110° and as they are underground motors, they will be installed under the ground. This kit is a great choice for residential and light commercial applications, boasting obstacle detection and slowdown for safety and convenience.

Average Cycles/Hour: 20
This kit includes encoders.

Features:

  • Motor reducer entirely made of aluminium.
  • Forged steel lever.
  • Steel foundation box.
  • Sealed motor reducer.
  • Opening up to 110° with the levers supplied.
  • The special mounting holes allow Vulcan motors to be installed inside numerous existing models of foundation boxes.
  • Adjustable opening and closing mechanical stop.

Kit Includes:

  • 2x Vulcan 230Vac motors with mechanical stop in open and close.
  • 2x Galvanised foundation boxes for standard 110° opening.
  • 2x Shoe with lever manual release.
  • 1x City1 Digital control with obstacle detection and slow down.
  • 1x MR1 Radio receiver.
  • 2x Phoenix 2 - 2 channel transmitters.
  • 1x Anse433 antenna.
  • 1x RIF50 pair safety photocells.
  • Encoders

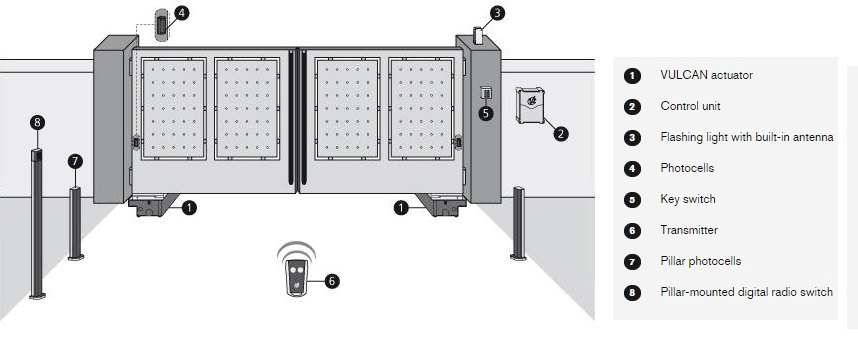

Installation:

Dimensions:

Details
ManufacturerV2
Electrical Data
Absorption (A)2.4A
Capacitor (μF)14
Power Consumption500 W
Power Supply (Vac 50/60 Hz)230
Gate Specifications
Automation TypeUnderground
Kit TypeDouble
Max. Gate Leaf Length (M)3.5
Max. Gate Weight (KG)800
Performance Data
Torque (Nm)320
Working Temp. (°C Min/Max)-20°C / +55°C
Technical
Protection Level (IP)67

V2 Vulcan ECD 230v 3.5m Twin Gate with Encoders - 800Kg

  • Brand: V2 SPA
  • Product Code: 29G001-ECD
  • Availability:  In Stock
