Nice L-Fab Underground Gate Opener Kit 1 (230v, 4m)

Click Image for Gallery

Description
Specification

The Nice L-FabKit 1 is a professional-grade 230V underground swing gate automation kit designed for residential and light commercial applications where discreet installation and reliable performance are required. Suitable for gates with leaves up to 4m wide and 650kg in weight, the L-Fab system is installed below ground level, preserving the appearance of the gate whilst delivering powerful automation.

Built around the robust BM4000 underground motors, the L-FabKit 1 features galvanised foundation boxes with integrated mechanical opening stops, an IP67-rated drive system and flexible manual release options from either inside or outside the property. The result is a durable, virtually invisible gate automation system designed for long-term reliability in all weather conditions.

Key Features

Suitable for swing gate leaves up to 4m wide
Supports gates up to 650kg per leaf
Powerful 230V underground electromechanical motors
Discreet below-ground installation maintains gate aesthetics
Integrated mechanical opening stop within foundation boxes
Choice of internal or external manual release system
Maximum opening angle of 110° as standard
Optional 360° opening capability with suitable installation
Heavy-duty cataphoresis-treated foundation boxes for corrosion resistance
IP67-rated underground operators for superior weather protection
Compatible with Nice radio controls and safety accessories
Proven reliability for residential and light commercial entrances

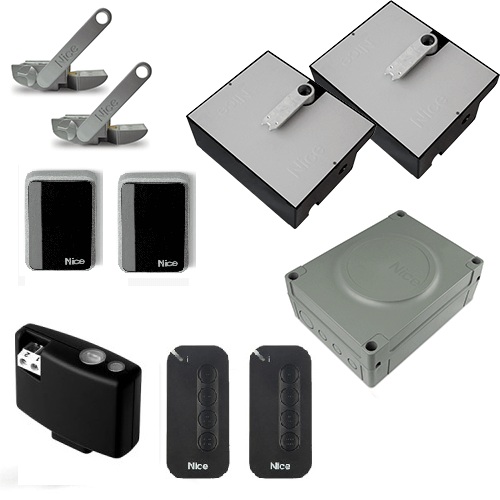

What's Included?

Quantity	Description
2 x	Nice BM4000 230V Underground Motors
2 x	BMBOX4 Foundation Boxes
1 x	MC800 Control Unit
1 x	OXI 4-Channel Plug-in Receiver
2 x	MYGO4 433.92MHz 4-Channel Remote Controls
1 x	Pair of Nice EPM Photocells

Technical Specifications

Specification	Value
Product Code	L-FabKit 1
Motor Voltage	230V AC
Gate Type	Double Swing Gates
Maximum Gate Leaf Length	4m
Maximum Gate Weight	650kg per leaf
Installation Type	Underground
Protection Rating	IP67
Maximum Opening Angle	110° Standard
Power Consumption	340W
Current Draw	1.5A
Operating Speed	0.8 m/s
Operating Force	500N
Duty Cycle	20 Cycles/Hour
Operating Temperature	-20°C to +50°C
Operator Weight	14.4kg

Dimensions
Dimensions	375 mm x 225 mm x h 110 mm (motor)
Electrical Data
Absorption (A)	1.5 A
Motor Voltage	230v
Power (W)	340
Gate Specifications
Automation Type	Underground
Kit Type	Double
Max. Gate Leaf Length (M)	4
Max. Gate Weight (KG)	650
Performance Data
Speed (RPM)	0.8
Torque (Nm)	500
Work Cycle (cycles/hour)	20
Working Temp. (°C Min/Max)	-20 ÷ +50
Technical
Protection Level (IP)	67
