The UG Medium is a top choice for swing gate automation, and for good reason. Designed for gates up to 3.5m in length and 800kg in weight, it combines sleek aesthetics with powerful performance.
Featuring a sealed motor reducer, the UG Medium delivers smooth, reliable operation in all weather conditions. With the included levers, it opens up to 100°, and with an accessory lever, it can achieve an impressive 360° opening. A 7m power cable ensures flexible installation, while special mounting holes allow compatibility with many existing foundation boxes, including older CAME models.
For precision control, the UG Medium includes adjustable mechanical stops for both opening and closing. Whether you’re a professional installer or a DIY enthusiast, this motor offers unmatched quality, durability, and ease of use.
Invest in the UG Medium and experience the advanced features, exceptional warranty, and superior performance that make it the ideal solution for all your gate automation needs.
Features
- Sealed motor reducer made entirely of aluminium with galvanised forged steel levers
- Opening up to 110° with the levers supplied
- Opening up to 360° with the accessory lever
- Version with 7 m long power cable
- The special mounting holes allow UG motors to be installed inside numerous existing models of foundation boxes
- Adjustable opening and closing mechanical stop

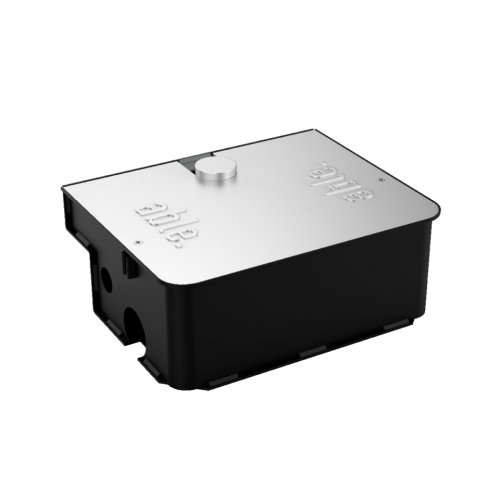

- Available with cataphoresis or stainless-steel foundation boxes
- In the absence of power, the gate can be operated manually by simply rotating a release lever
Manual
| Miscellaneous Attributes | |
| Miscellaneous Attributes | |
| Product Data | |
|---|---|
| Model | UG MEDIUM 3500 230 |
| Weight (kg) | 11 |
| Maximum leaf weight (kg) | 800 |
| Protection Rating (IP) | IP67 |
| Operating Temperature (°C) | -20 / +55 |
| Electrical Data | |
| Supply (Vac - Hz) | 230 - 50 |
| Full load absorption (A) | 2.4 |
| Maximum electric power (W) | 550 |
| Mechanical Data | |
| Operating time of leaf 0–90° (s) | 17 |
| Maximum torque (Nm) | 320 |
| Working cycle (cycles/hour) | 32 |
