Nice TOONA7024-DKIT (24V, 7m)

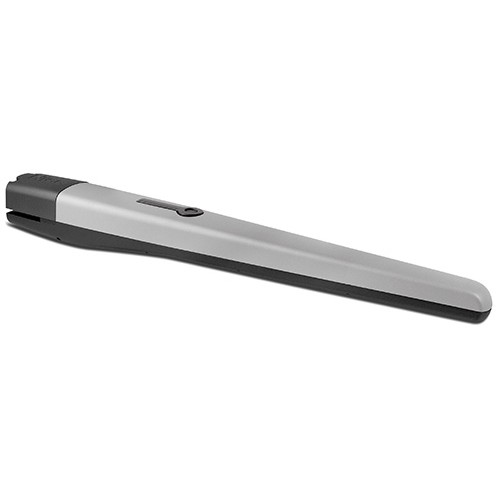

The Toonakit 5 is for swing gates with leaves up to 7 metres, made up of a surface-mounted electromechanical gear motor. This is ideal for residential use, due to its durability and resistance to all conditions. The internal moving parts are steel, with light alloys and technopolymers. The Toonakit has a generously sized and practical connection compartment, giving rapid and easy access to internal parts in the upper section of the motor. The installation process is simple and has a built-in capacitor for any maintenance that is required.

This is the 24 Vdc version with a magnetic encoder, making it perfect for intensive use with the control unit Moonclever MC824H.


The features of the 24 Vdc version include:

  • Single key, simple programming.
  • Easy understanding of opening and closing limit positions.
  • Automatic fault diagnostics.
  • Programming of pause time.
  • Pedestrian Pass Door.
  • Slows down upon opening and closing
  • Obstacle detection with dual technology
  • Optional rechargeable batteries for operation in the event of power failure.
  • Provision for connection of latest generation resistive sensitive edges.

Kit Includes:

  • 2 x TO7024 Motors
  • 2 x PLA13 Stops
  • 2 x ON2E Remotes
  • 1 x MC824H Control Panel
  • 1 x EPMB Pair of BlueBus Photocells
  • 1 x OXI Receiver

Manuals and Datasheets

Nice Moonclever MC824H / MCA1 Manual (from 09/2018 onwards)

Electrical Data
Absorption (A)5
Motor Voltage24v
Power (W)120
Gate Specifications
Automation TypeRam
Kit TypeDouble
Performance Data
Force (N)2700
Speed (RPM)0.013
Work Cycle (cycles/hour)41
Working Temp. (°C Min/Max)-20 ÷ +50
Technical
Protection Level (IP)44
