The Nice WINGO3524HSSBDKCE is a premium high-speed 24V swing gate automation kit designed for residential double swing gates with leaves up to 3m wide or 200kg per leaf. Built around the advanced WG3524HS Hi-Speed operators, this system delivers exceptionally fast opening times, allowing gates to reach 90° in approximately 10 seconds under standard installation conditions.
Ideal for users who demand both convenience and performance, the WINGO3524HSSBDKCE combines fast operation with advanced safety technology. Its integrated magnetic encoder continuously monitors gate movement, providing precise obstacle detection while maintaining reliable performance over time. The result is a gate automation system that is not only fast but also safe and dependable.
Supplied with the powerful MC824H Moonclever control panel, the kit offers intelligent programming, obstacle detection, soft start and stop functions, pedestrian access mode and compatibility with the latest Nice smart control technologies. The included BiDi-WiFi module enables integration with Nice smart home systems and app-based management, making the WINGO3524HSSBDKCE one of the most advanced residential swing gate kits available.

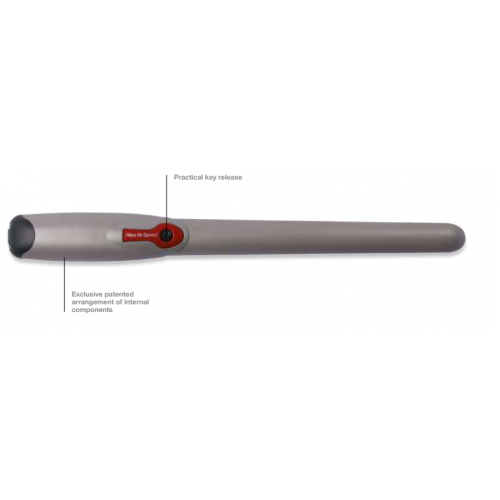

Designed for installers and homeowners alike, the Wingo HS benefits from simplified installation, pre-mounted mechanical limit stops and straightforward manual release operation. The patented internal layout reduces moving parts, resulting in quieter operation and enhanced long-term reliability.
Key Features
- Suitable for double swing gates up to 3m per leaf
- Supports gate leaves up to 200kg per leaf
- High-speed operation with approximately 10-second 90° opening
- Powerful 24VDC electromechanical motors
- Magnetic encoder for precise positioning and obstacle detection
- MC824H Moonclever intelligent control unit
- Integrated bidirectional technology
- Included BiDi-WiFi interface for smart connectivity
- BlueBUS accessory compatibility
- Quiet operation with patented internal component arrangement
- Pedestrian opening function
- Manual key release system
- Residential intensive-use design
- Compatible with Nice Yubii and smart home systems
Technical Specifications
| Feature | Specification |
|---|---|
| Product Code | WINGO3524HSSBDKCE |
| Motor Type | Electromechanical Linear Operator |
| Voltage | 24V DC |
| Installation Type | Surface Mounted |
| Gate Type | Double Swing Gates |
| Max Gate Leaf Length | 3m |
| Max Gate Leaf Weight | 200kg |
| Opening Speed | 90° in approx. 10 seconds |
| Motor Power | 120W |
| Current Draw | 5A |
| Operating Speed | 0.04 m/s |
| Thrust Force | 1500N |
| Duty Cycle | 30 cycles/hour |
| Encoder | Magnetic Encoder |
| Obstacle Detection | Yes |
| Control Unit | MC824H Moonclever |
| Radio Technology | Bidirectional |
| Smart Connectivity | BiDi-WiFi Included |
| Photocell Compatibility | BlueBUS |
| Operating Temperature | -20°C to +55°C |
| Protection Rating | IP54 |
| Manual Release | Key Release System |
Technical specifications sourced from Nice product documentation and Hi-Speed product literature.

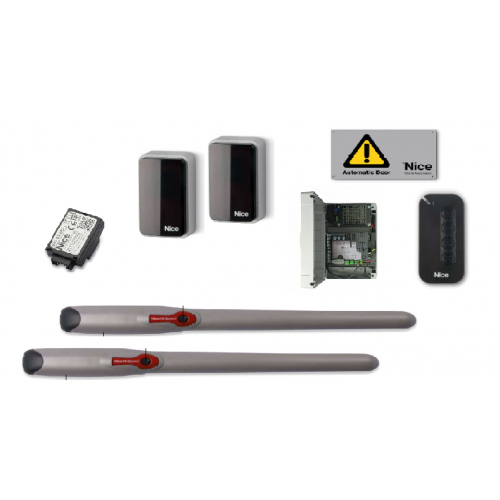

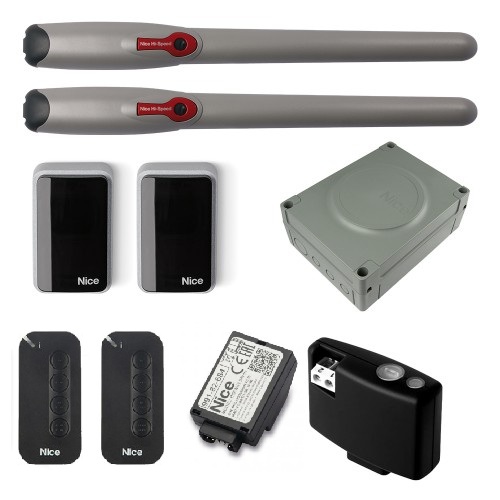

Kit Contents
The WINGO3524HSSBDKCE kit includes:
- 2 × WG3524HS High-Speed Gate Operators
- 1 × MC824H Moonclever Control Panel
- 2 × MYGO4 4-Channel Remote Controls
- 1 × BiDi-WiFi Smart Interface
- 1 × Pair EPMB BlueBUS Photocells

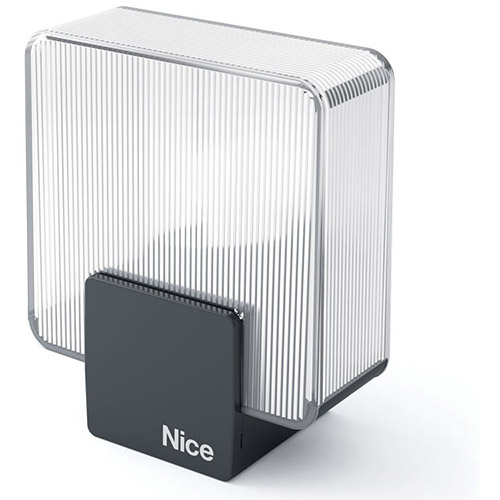

- 1 × ELDC LED Flashing Light
- 1 × Warning Sign (TS)
| Electrical Data | |
| Motor Voltage | 24v |
| Gate Specifications | |
| Automation Type | Ram |
| Kit Type | Double |
| Max. Gate Leaf Length (M) | 3 |
| Max. Gate Weight (KG) | 200 |
