Fadini Junior 650 Sliding Gate Opener Kit 230Vac for Gates up to 1,200kg
The Fadini Junior 650 Sliding Gate Automation Kit is a powerful Italian-manufactured automation system designed for heavy-duty residential, commercial, and industrial sliding gates weighing up to 1,200kg. Combining robust electromechanical engineering with advanced safety technology, the Junior 650 is the ideal solution for sites requiring dependable performance, intensive use capability, and long-term reliability.
Built around a high-performance 230V geared motor, the Junior 650 features an oil-bath transmission system with a hardened steel worm drive and bronze crown gear. This proven design delivers exceptionally smooth operation, reduced mechanical wear, and excellent longevity, even in demanding environments.
The system incorporates encoder-controlled obstacle detection and amperometric safety monitoring, ensuring maximum user protection. If an obstruction is detected during operation, the gate automatically stops and reverses direction. Advanced acceleration and deceleration control further enhances reliability by reducing mechanical stress on the gate and motor assembly.
Designed for professional installations, the Junior 650 includes magnetic limit switches for precise positioning, push-button programming for quick setup, and a secure key-operated manual release system for emergency access during power failures. A built-in blue LED status indicator provides a clear visual indication of system operation and diagnostics.
Whether installed on a private driveway, industrial entrance, business premises, or large residential property, the Fadini Junior 650 delivers exceptional performance, smooth operation, and the renowned build quality that has made Fadini one of Europe's leading gate automation manufacturers. ,
Key Features
- Suitable for sliding gates weighing up to 1,200kg
- Powerful 230V electromechanical geared motor
- Heavy-duty oil-bath gearbox for increased durability
- Intensive-use rated for high-traffic installations
- Encoder and amperometric obstacle detection system
- Automatic stop and reverse on obstruction detection
- Adjustable acceleration and deceleration
- Magnetic limit switch technology
- Integrated LED status indicator
- Secure key-operated manual release
- Suitable for residential, commercial and industrial applications
- Compatible with master/slave operation for bi-parting sliding gates
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Gate Weight | 1,200kg |
| Motor Voltage | 230V AC |
| Power Consumption | 510W |
| Maximum Current Draw | 2.4A |
| Maximum Torque | 1,000N |
| Motor Speed | 1,350 rpm |
| Gate Speed | 10 m/min |
| Gear Ratio | 1:32 |
| Protection Rating | IP54 |
| Operating Temperature | -20°C to +50°C |
| Thermal Protection | 160°C |
| Motor Weight | 13.5kg |
| Duty Cycle | Intensive Use |
| Lubrication System | Oil Bath (706L Oil) |

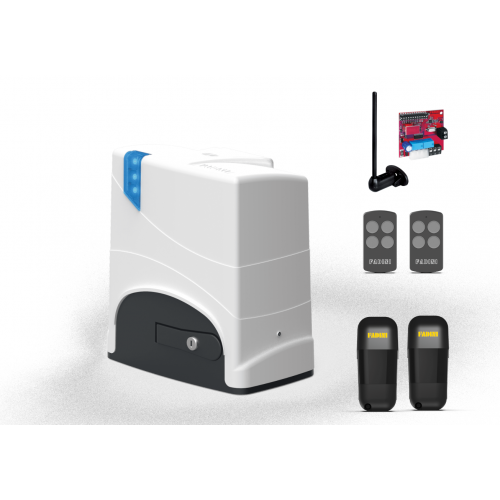

Typical Kit Contents
The Fadini Junior 650 Sliding Gate Kit typically includes:
- 1 × Junior 650 230V sliding gate motor
- Integrated electronic control unit
- Encoder safety system
- Radio receiver
- 2 × Remote transmitters
- Pair of safety photocells
- Magnetic limit switches
- Foundation/base plate with fixing anchors
- Pinion gear for rack drive
- Manual release keys
- Installation and programming documentation
