The Chamberlain CHSL400EVC 24v sliding gate opener kit is perfect for sliding gates and offers a simple, safe, and useful way to operate external gates. Suitable for gates up to 400KG in weight OR 4.0m in length.
Make Your Gates Smarter
Having your gates opened by smart Chamberlain myQ technologies* and equipped with a powerful motor makes returning home even more joyful. You no longer need to manually open and close your gates since the CHSL400EVC can be monitored and operated from anywhere in the world using a smartphone with Chamberlain myQ*.
Was your phone left at home? Is the battery on your phone empty? Not a problem! Use the provided remote control transmitters as normal.
*myQ functionality requires the 830REV myQ starter kit accessory (sold separately)
Ideal for Residential Settings

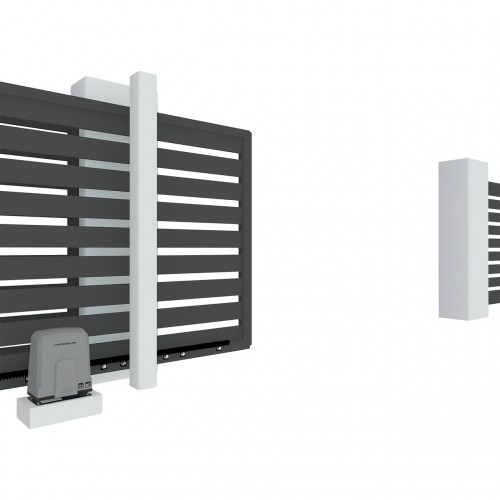

For sliding gates, the CHSL400EVC sliding gate operator is a strong motor with incredible pulling force. This opener can manage gate leaves up to 4m wide or 400kg in weight (please refer to the product manual for more information).
It is possible to open one gate leaf and modify the automatic closing mechanism. To further reduce noise, the motor has gentle start and soft stop functions. Moreover, automated obstacle detection increases safety.
Faster, Simpler Installation
Installation is made easier and faster by a number of pre-assembled parts, such as the printed circuit board with the integrated radio module and transformer and the handheld remote controllers that have already been trained.
Wireless Technology
In terms of safety, this wireless technology is the best that Chamberlain has ever provided.
Great Value Package

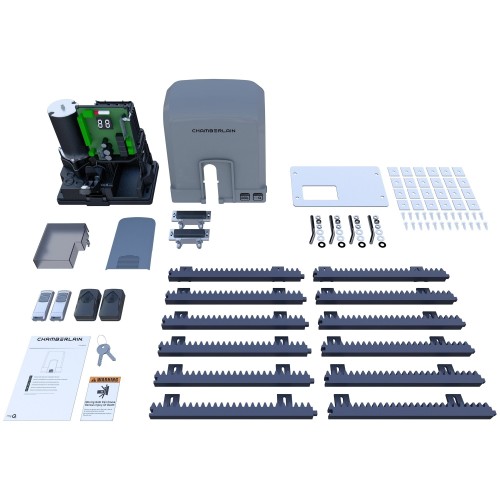

Together with the drive and integrated control board, this kit also comes with mounting hardware, two limit switch magnets, a 4-meter plastic rack, two contemporary handheld transmitters, a single pair of infrared safety photocells, and two emergency unlocking keys (such as in the event of unexpected power failure).

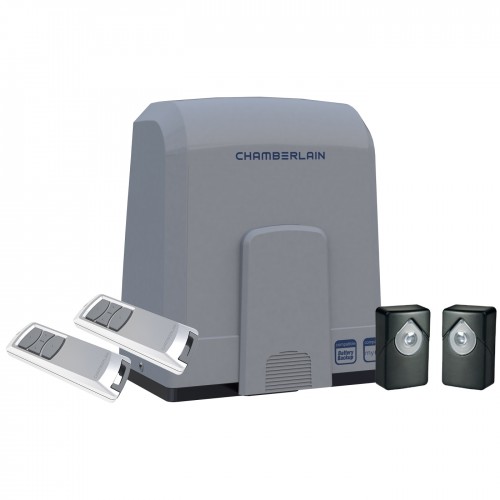

Kit Contents

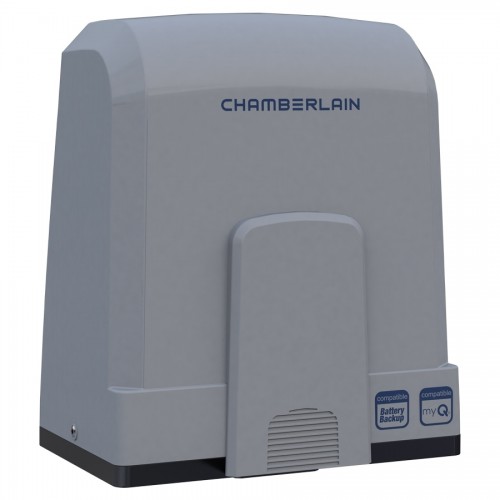

- 1 x CHSL400EVC motor unit with control board
- 1 x 4m plastic sliding gate rack
- 2 x TX4REV-F 4-channel remote controls
- 1 x Pair of 771REV safety photocells
- 2 x Emergency release keys
- 1 x Installation manual
- Various installation hardware (refer to product manual for more information)
Manuals and Guides
Chamberlain CHSL400EVC Sliding Gate Opener Manual
Chamberlain CHSL400EVC Sliding Gate Opener Programming Instructions
Drive | |
Motor Type | Electromechanical |
Electrical Data | |
Motor Voltage | 24v |
Power | 110 W |
Power Supply | 220-240 VAC 50/60 HZ |
Stand-by Power | 4.45 W |
Gate Specifications | |
Automation Type | Sliding |
Kit Type | Single |
Max. Gate Leaf Length (M) | 4.0 |
Max. Gate Weight (KG) | 400 |
Miscellaneous Attributes | |
Miscellaneous Attributes | Operating Radio Frequency
Code Security+ 2.0 Max Number of Remotes 180 Max Number of Keypads 4 Max Number of myQ Devices 16 Max Number of IR’s 3 Max Number of External Inputs 3 Optional Battery Back-up Unit 2 x 12V, 2.2Ah batteries model 490EV |
Performance Data | |
Operating Temperature | -20°C to +55°C |
Speed (mm/s) | 160 mm/s |
Torque (Nm) | 12Nm |
Work Cycle | 5 cycles per hour, 20 cycles per day |
Technical | |
Noise Level (dB) | 70dB |
