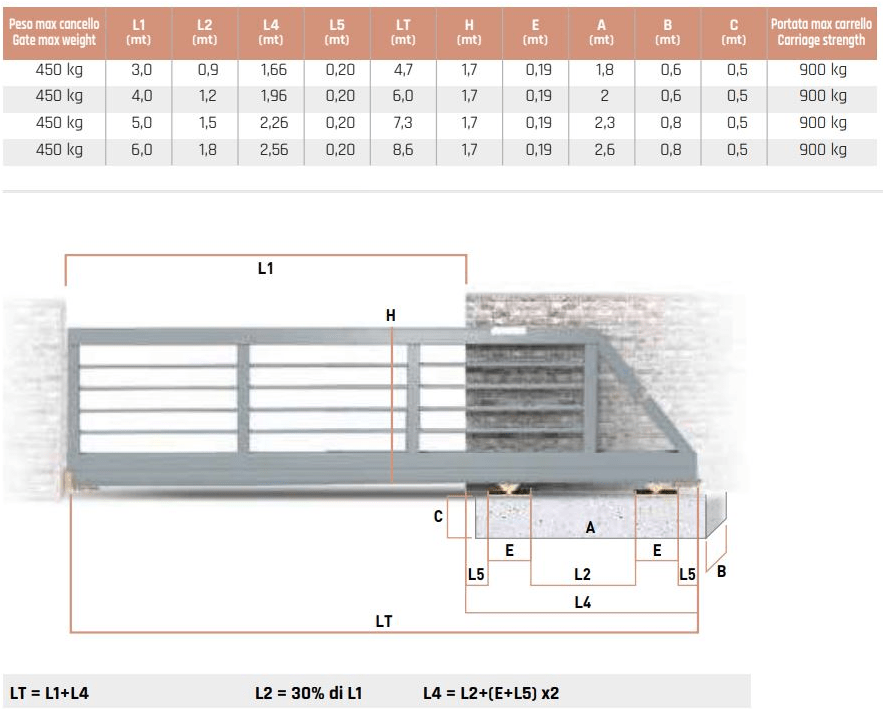

Cantilever kit for clear gate openings up to 6m and up to 450kg in weight.

Supplied with 1 x 6m galvanised track.

Cantilever gate systems are widely used in commercial, public sector and residential environments.

Features

• No need to install a track in the ground

• Very little groundwork is necessary
• Lower labour costs
• Lower upkeep
• Ideal for frequent use
• Elegant in appearance
• Designed to support cantilevered gates with an opening of up to 4m and a maximum weight of 450KG


Kit Contents

• 1 x 6m GIPI 4 RPZ6 Galvanised Track.

• S280GD structural grade steel

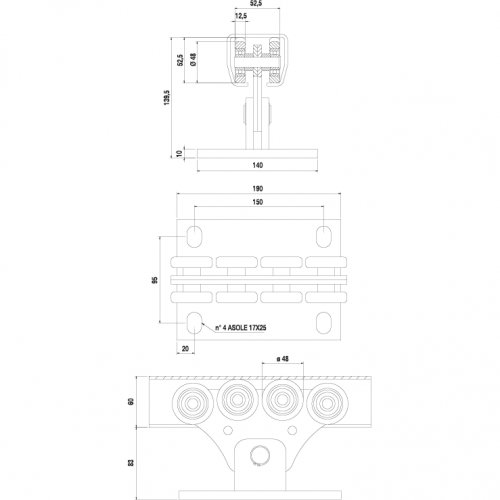

• 2 x CA4RPS Mini 8-wheeled cantilever carriages.
• S235 structural grade steel body with C45 case-hardened carbon steel bearings.
• 2 x 41B/S Mini support wheels with a plate.
• S235 structural grade steel body and case-hardened C45 carbon steel roller bearing, galvanised finish.
• 2 x 50B Meeting Points
• 235 structural grade steel, galvanised finish.
