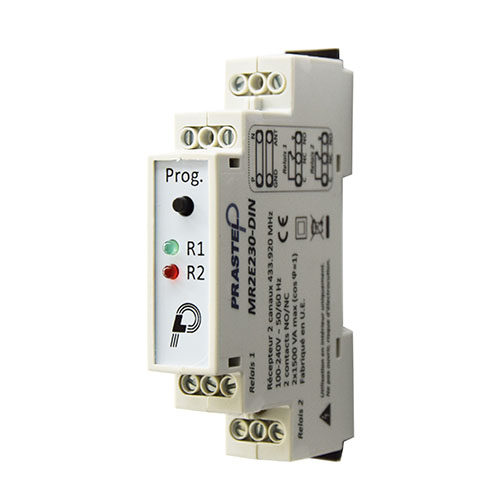

The MR2E230-DIN is a Prastel 433.92 MHz radio receiver, complete with DIN rail mount box - making it suitable for any electric panel available on the market.
Utilises 2 channel 220V, integrated 1000-code memory and 2 output relays.
Suitable for all 433.92 MHz Prastel transmitters.
Features Include:
- Easy programming with one button.
- 2 relays: monostable (1 s., 6 s.), bistable or bistable with automatic power off after one hour.
- Modular casing with DIN rail mount fixing (suitable for all electric panels).
- Possible external antenna.
| Dimensions | |
| Dimensions (L x W x H) | 90 x 58 x 17.5 mm |
| Weight (g) | 80 |
| Electrical Data | |
| Consumption (mA) | 15 (max) |
| Contact Capacity | 1500 Va (cos φ=1) |
| Output Load | Up to 1500 Watts per relay (cos φ=1) |
| Output Types | Monostable (1 s., 6 s.), bistable or bistable - power off after one hour |
| Power Supply | 100-240v AC (50/60 MHz) |
| Performance Data | |
| Operating Temperature | -20°C / +55°C |
| Storage Temperature | -40°C / +85°C |
| Radio | |
| Frequency (MHz) | 433.92 MHz |
| Safety Relay Data | |
| Output | Relay NO/NC |
| Technical | |
| Relay Outputs | 2 |
