This control board is discontinued and replaced by the LiftMaster CB124EV control board, however please note that series 4xxxE & 9xxxE remote controls DO NOT WORK with the newer CB124EV model.

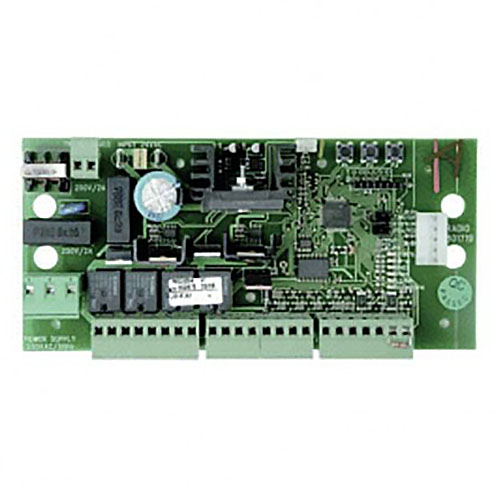

Replacement LiftMaster CB124 24v control panel for use with LiftMaster swing gate operators.
Please Note: This listing for a replacement control board ONLY, and does not include an enclosure or any other additional extras.
| Technical Data | |
| Voltage | 230V~ ±10% 50Hz |
| Transformer | 230V/24V, 150VA |
| Output Motor | 24V/DC |
| Consumption max. | max. 400W (in operation) |
| Consumption Standby | max. 4 Watt (without accessories) |
| Supply Accessories | 24VDc / 600mA max. |
| Operating Temperature | -25°C ÷ 55°C |
| Modes | Standard, Automatic |
| Measurements | 250x75mm (without box) |
| Fuse | 2 x 2A |
| Remote Control | max. 180 x Rolling Code |
| Feasible Frequencies | 433MHz, 868MHz |
| Performance Data | |
| Operating Temperature | -25ºC to +55ºC |
| Radio | |
| Coding Type | Rolling Code |
| Frequency (MHz) | 433MHz / 868MHz |
| Technical | |
| Protection Level (IP) | IP45 |
Liftmaster CB124 Control Panel (24v)
- Brand: LiftMaster
- Product Code: CB124
- Availability: Discontinued
