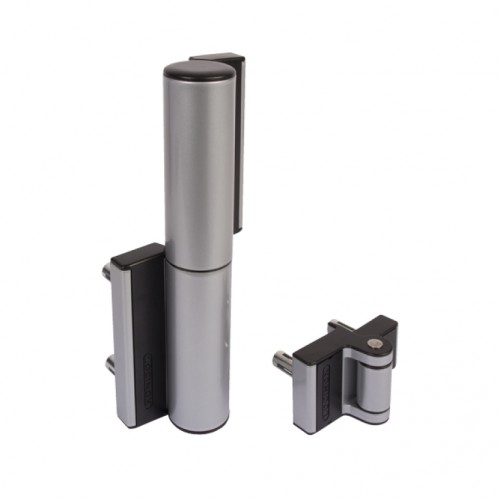

The Locinox TIGER is a compact, self-closing hydraulic gate hinge designed to provide smooth and controlled closing for pedestrian gates. Combining the hinge and gate closer in a single unit, it offers adjustable closing speed and final snap while maintaining a clean, discreet installation.
Key Features
- Closing speed unaffected by humidity and temperature changes
- Fast and easy fixing with Quick-Fix
- Powder-coated aluminium housing
- Aesthetic design
- For left and right turning gates

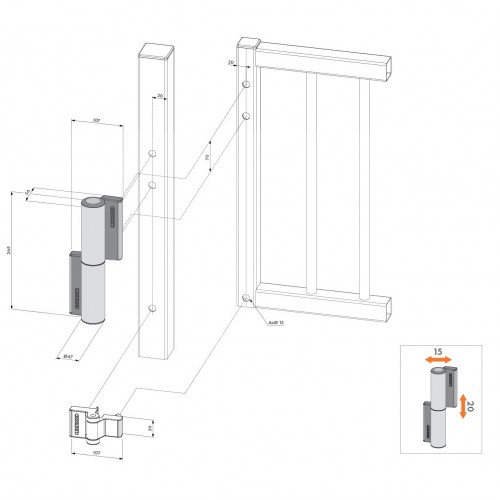

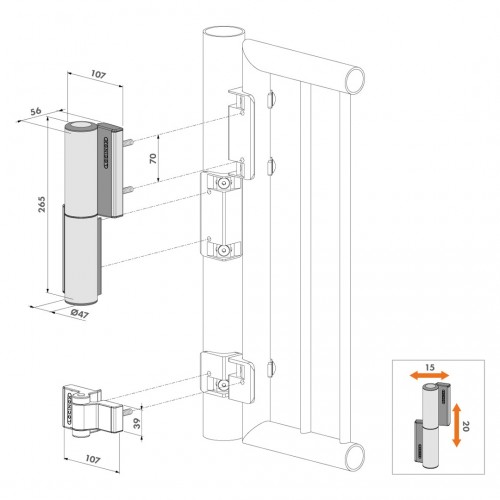

- 20 mm vertical adjustability
- Automatic 180° closure with adjustable closing speed and final snap
- 15 mm horizontal adjustability
- Easy to open: Max. 14 Nm
Manuals & Datasheets
Technical
| Specifications | |
|---|---|
| Left-Right Adjustability | Yes |
| Gate Width | 0 - 1100mm |
| Gate Weight | 0 - 75kg |
| Force | 14Nm |
| Maximum Opening Angle | 180° |
| Final Snap Adjustability | Yes |
| Speed Adjustability | Yes |
| Horizontal Adjustability | 15mm |
| Vertical Adjustability | 20mm |
| Hydraulic Gate Closer | Yes |
| Materials Main Part(s) | Powder Coated Aluminium |
| Temperature Range | -30°C ~ 70°C |
| Norms | ADA PMR ROSPA |
| Hours of Salt Spray Testing | 500 |
| Test Frequency | 500000 |
| Warranty | 3 Years |
