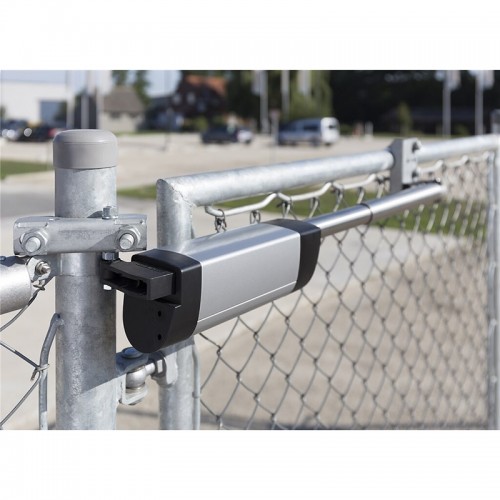

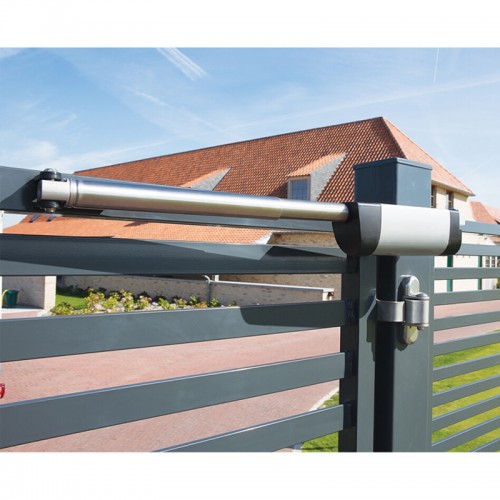

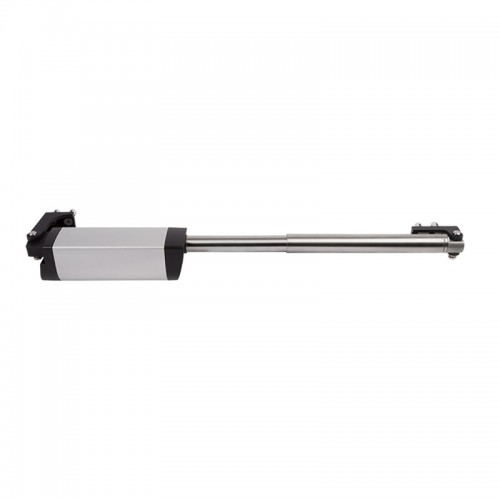

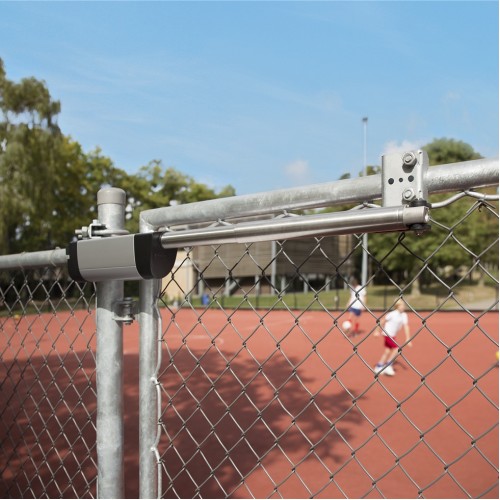

Simple installation and versatility make it the perfect fit for larger gates. Samson-2 is a polyvalent hydraulic gate closer developed with high-quality components for an exceptionally long life span.
Temperature changes do not affect smooth and constant functionality.

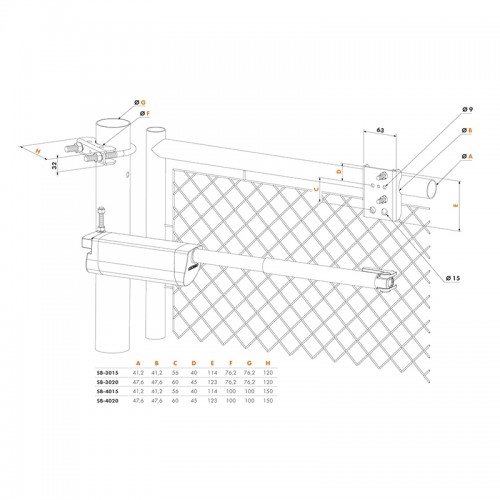

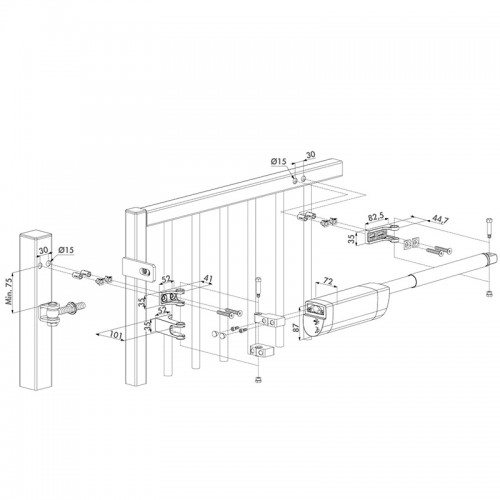

The set of mounting brackets that are delivered with the closer makes Samson-2 fit for any gate.
Key Features
- Fast and easy fixing with Quick-Fix
- Closing speed adjustment unaffected by temperature fluctuations
- For left and right turning gates
- Specially developed for outdoor use: industrial quality
- Opening angle up to 150° depending on the situation
- Scratch resistant and corrosion free anodised aluminium housing
- Easy to open: Max. 25 Nm
Manuals & Datasheets
Technical
| Specifications | |
|---|---|
| Left-Right Adjustability | Yes |
| Installation Method | Quick-Fix |
| Profile Type | Flat Square |
| Gate Width | 1100 - 2000 mm |
| Gate Weight | 0 - 150 kg |
| Force | 25 Nm |
| Maximum Opening Angle | 150° |
| Final Snap Adjustability | Yes |
| Force Adjustability | No |
| Speed Adjustability | Yes |
| Horizontal Adjustability | 20 mm |
| Hydraulic Gate Closer | Yes |
| Temperature Range | -30°C ~ 70°C |
| Hours of Salt Spray Testing | 1000 |
| Test Frequency | 500000 cycles |
| Warranty | 3 Years |
