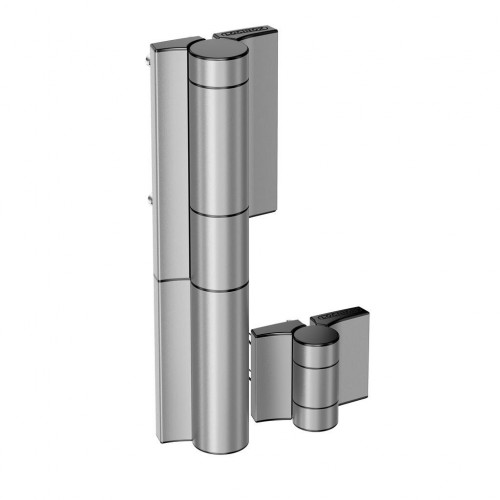

The Locinox MAMMOTH180-2 is a powerful hydraulic self-closing hinge and gate closer designed specifically for 180° gate applications. Suitable for gates up to 150kg and 1500mm wide, it combines exceptional strength with smooth, reliable operation for both residential and commercial installations. Featuring a robust double-bearing mechanism, the MAMMOTH180-2 delivers outstanding performance and long-term durability.
Its advanced Active Thermal System ensures a consistent closing speed throughout the year, automatically compensating for temperature changes and varying weather conditions. Supplied complete with the Locinox Dino-2 hinge, it provides a high-performance, all-in-one solution for heavy-duty gate closing applications.
Key Features
- Hydraulic self-closing hinge for 180° gates
- Suitable for gates up to 150kg and 1500mm wide
- Patented hydraulic damping for smooth closing
- Consistent closing speed in all weather conditions
- Adjustable closing and final latch speed
- Reversible for left and right-opening gates
- Vandal-resistant construction
- Durable silver powder-coated aluminium housing
- Low opening resistance for easy operation
- 20mm height and width adjustment
- Quick-Fix system for fast installation
- Supplied with Locinox Dino-2 hinge
Manuals & Datasheets
Technical
| Specifications | |
|---|---|
| Gate Type | Pedestrian swing gates Maximum Width: 1500mm Maximum Weight: 150kg |
| Profile | Post profiles from 60mm Gate profiles from 40mm |
| Material | Powder coated aluminium housing Stainless steel critical components Engineered hydraulic oil |
| Opening Angle | 180° |
| Mounting | Quick-Fix |
| Installation | Surface mounted Vertical and horizontal Adjustable: 20mm |
| Controlled Closing | Adjustable closing speed Adjustable final snap |
| Weather Conditions | -30°C ~ +70°C |
| Colour | Silver |
| Warranty | 3 Years |
| Tested | 500000 open-close cycles Salt spray test: 500h |
