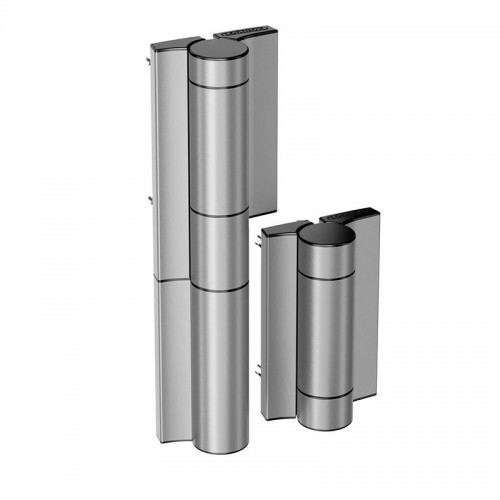

The Locinox MAMMOTH-HD-2 is a second-generation, heavy-duty hydraulic gate closer and hinge designed for large and demanding gates. Combining the hydraulically damped Mammoth closer with the included self-closing Raptor hinge, it provides smooth, controlled closing for gates weighing up to 200 kg and measuring up to 2,000 mm wide.
Its Active Thermal System maintains a consistent closing speed despite changes in temperature, while double-bearing hinges ensure smooth operation.
Key Features
- Vandal-resistant
- Easy mounting with Quick-Fix
- Powder-coated aluminium housing
- 2-dimensional adjustment: 2 x 20 mm, width and height
- Closing speed adjustment unaffected by temperature fluctuations
- Aesthetic design
- Reversible: suitable for left- and right-opening gates
- Self-closing hinge with patented hydraulic damping
- Easy to open: Max. 32 Nm
Manuals & Datasheets
Technical
| Specifications | |
|---|---|
| Gate Type | Pedestrian swing gates Maximum Width: 2000mm Maximum Weight: 200kg |
| Profile | Post profiles from 60mm Gate profiles from 40mm |
| Material | Powder coated aluminium housing Stainless steel critical components Engineered hydraulic oil |
| Opening Angle | 180° |
| Mounting | Quick-Fix |
| Installation | Surface mounted Vertical and horizontal Adjustable: 20mm |
| Controlled Closing | Adjustable closing speed Adjustable final snap |
| Weather Conditions | -30°C ~ +70°C |
| Colour | Silver |
| Warranty | 3 Years |
| Tested | 500000 open-close cycles Salt spray test: 500h |
