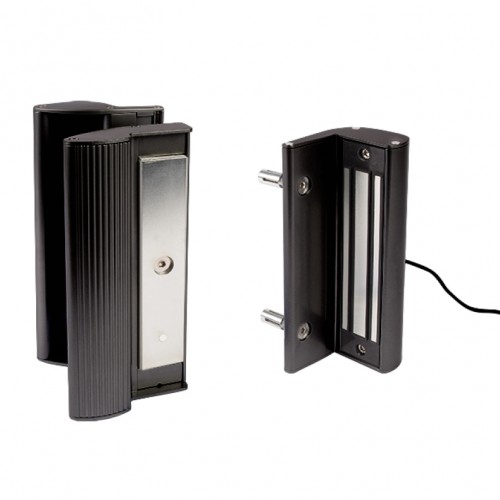

Surface mounted magnetic lock with integrated handles.
For square posts and gate profiles of 40 mm to 80 mm.
600 kg pulling force with 3006PULL.
Key Features
- Fail open
- Voltage: 12V / 24V DC
- Powder-coated aluminium housing
- Fast and easy fixing by means of 5 holes with Quick-Fix
- 500h salt spray resistant! SGS certified (ISO 9227)
- Anti-residual magnetism kick-off system
- Raised edge on the magnet housing makes it impossible to put a crowbar between the magnet and the armature plate
- Special two-layer protective coating developed for outdoor use
- Tested according to ISO 9227
- Guaranteed holding force tested on every magnetic lock
- IP68 rated - Extremely resistant to water and dust
- MAG6000: Minimal pulling force: 6000N (600 kg)
- Current MAG6000: 460 mA /12 V or 230 mA / 24 V
Manuals & Datasheets
Technical
| Specifications | |
|---|---|
| Left-Right Adjustability | Yes |
| Installation Method | Quick-Fix |
| Profile Type | Flat Square |
| Operating Voltage | 12V DC - 24V AC |
| Operating Current | 460 mA (12 V) or 230 mA (24 V) |
| IP Rating | 68 |
| Length Provided Cable | 1100 mm |
| Materials Main Part(s) | Powder Coated Aluminium Special Two Layer Protective Coating |
| Norms | ISO 9227 |
| Hours of Salt Spray Testing | 500 |
| Test Frequency | 500000 cycles |
| Warranty | 2 Years |
