LiftMaster LM70EVFFC myQ Enabled Smart Garage Door Opener Kit (110KG)

Featuring smartphone app control, incredibly smooth/ultra-quiet operation and economical energy efficiency, the LiftMaster LM70EVFFC is a myQ enabled smart garage door opener kit that is designed with the future in mind and is packed full of features.

This all-in-one kit includes an array of accessories as standard at no additional cost. This kit comes complete with the 828EV myQ gateway, TX4EVF 4-channel remote controls, 771E safety photocells, and a quick-release mechanism for secured access in the event of a power failure.

A contemporary, bright LED lighting system is built-in which makes navigation in the dark a breeze. The ultra-quiet operation makes this garage door opener perfect for residential settings.


Key Features

  • All-in-one kit includes an array of accessories as standard at no additional cost
  • Smartphone app control anywhere, any time via the free myQ app
  • Smooth and ultra-quiet operation, perfect for residential use
  • Economical energy efficiency, this opener uses only 0.8 W on standby power
  • Built-in LED lighting system for convenient use in the dark


myQ Smart Technology

  • myQ enabled garage door opener, integrate your garage door into your smart home ecosystem
  • Open/close and monitor your gates or garage doors from anywhere in the world via the free myQ app
  • Control via Apple iOS / Android smartphones and Apple Watch
  • Real-time notifications will instantly alert you to any goings-on
  • Set schedules/routines to streamline day-to-day life
  • Share access with family and friends, each with their own individual settings


Download On The App Store


Get It On Google Play


Other Features

  • Efficient and reliable 24V DC motor
  • Setup and programming are quick and simple
  • Multi-frequency radio with 7 bands (433 MHz / 868 MHz)
  • Soft start/stop, no harsh banging or clattering of garage door
  • Automatic safety stop during opening/closing when photocell beam is tripped


Garage Door Compatibility

This opener is suitable for use with retractable "one-piece" and sectional "roller" type garage doors only.

Retractable "One-Piece" Garage Doors

  • Max width: 5000 mm
  • Max height: 2500 mm
  • Max weight: 110 kg

Sectional "Roller" Type Garage Doors

  • Max width: 5000 mm
  • Max height: 2500 mm
  • Max weight: 110 kg

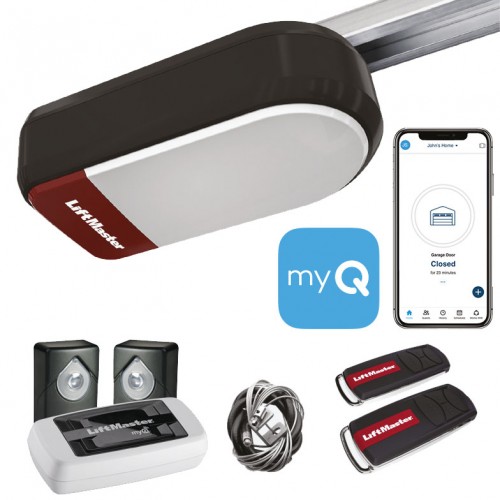

Kit Contents

  • 1 x Drive head (LM70EVFFC)
  • 2 x 4 Channel remote control (TX4EVF)
  • 1 x myQ Gateway (828EV)
  • 1 x Pair of Infrared safety photocells (771E)
  • 1 x Quick-release Mechanism (EQL01EV)
  • 1 x Rail & assembly accessories


Manuals & Datasheet

Details
Door LinkageAdjustable door arm. Pull cord trolley release.
Soft-Start / Soft-StopYes
Dimensions
Hanging Weight (kg)~ 12 kg
Headroom Required (mm)min. 35 mm
Length of Travel2682 mm
Overall Length3367 mm
Drive
Drive MechanismBelt
Max Door Height (m)2.5 m
Max Door Weight (kg)110 kg
Max Door Width (m)5.0 m
Max Pull Force (N)700 N
Motor TypeDC gear motor permanent lubrication
Electrical Data
LampOn when door starts, off 2-1/2 minutes after stop.
Limit DeviceMechanical RPM/Passpoint detector
Stand-by Power0.8 W
TransformerTransformer overload protector and low voltage push button wiring.
Input Voltage220-240 VAC, 50/60 Hz
Memory
Memory180 registers
Performance Data
Speed (mm/s)160 mm/s
Radio
Radio Frequency7-Band (433 MHz / 868 MHz)
Technical
Force AdjustmentAutomatic force adjustment
Limit AdjustmentElectronic
Noise Level (dB)54 dB

LiftMaster LM70EVFFC myQ Enabled Smart Garage Door Opener Kit (110KG)

Tags: myQ compatible
