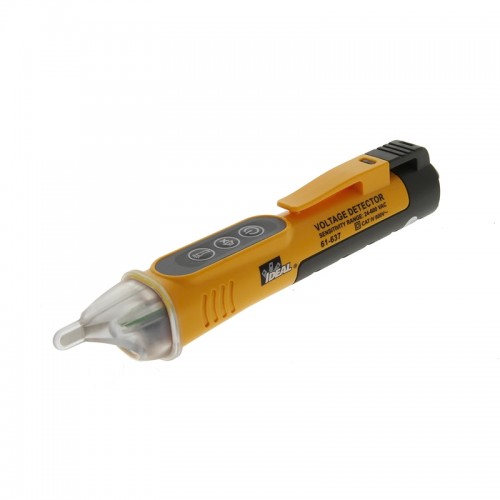

The IDEAL 61-637 non-contact voltage tester detects AC voltage from 24 to 600V and incorporates a built-in flashlight for working in poorly lit areas. Its extended low-voltage range makes it a practical tool for electrical installation, maintenance and fault-finding applications.
Key Features
- UL Certified CAT IV 1000V AC, 24 to 600 V AC
- LED Flashlight in the tip operates independently of the tester functions and can be used to illuminate the work area
- Audible notification disable with the simple press of speaker button - tester can be operated with a visual only indication of voltage when working in noise sensitive or restricted areas
- Auto power off after 10 minutes of inactivity - the tester will emit one long beep (0.5s) and then shut off
- Low battery indication
Manuals & Datasheets
Technical
| Specifications | |
|---|---|
| Jaw Size | N/A |
| Warranty | Limited 2 Year |
| Data Hold | No |
| GFCI Test | No |
| Diode Test | No |
| Auto Ranging | No |
| Battery Size | 2 x AAA |
| Auto Power Off | Yes |
| Backlit Display | No |
| Drop Protection | 3.3 ft |
| Dual LCD Display | No |
| CAT Safety Rating | CAT IV 600 V |
