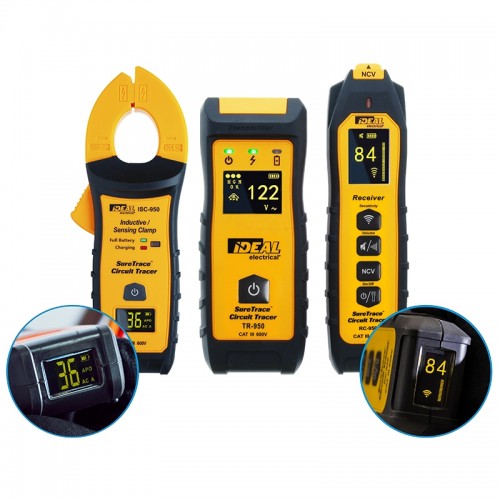

The IDEAL 61-950EU SureTrace Pro is an advanced circuit tracing system for locating breakers, fuses, conductors and wiring faults on energised or de-energised systems up to 600V AC/DC. Designed for demanding professional diagnostics, it can assist with tracing hidden conductors, identifying open and short circuits and working with three-phase systems.

Key Features

• The IDEAL 61-950EU SureTrace™ Circuit Tracer is the most accurate tool for fast and accurate electrical troubleshooting.
• ETL Certified CAT III 600V, for use on circuits 0-600 volts AC (50 & 60 HZ) /DC, including 3-phase systems.
• Use to quickly and reliably locate breakers, fuses and conductors hidden in walls, ceilings and floors.
• Easily identify common wiring faults such as dead shorts, open circuits and splice errors.
• Suitable for use on both energised and de-energised circuits.
• Integrated work light improves visibility in low-light working environments.

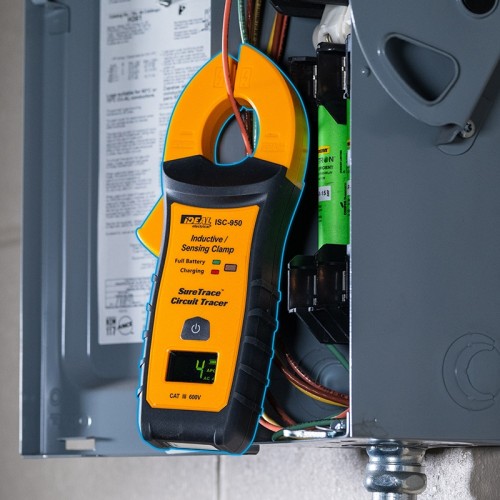

• Measures AC current up to 600A and enables signal induction using the included inductive/sensing clamp.
• Advanced transmitter functions include continuity testing, voltage measurement, DC polarity indication and receptacle testing.
• Eliminates the need for a second tester, streamlining fault finding and reducing time on site.
• Ideals CertainCircuit™ technology enables rapid breaker and fuse confirmation with live circuit identification.

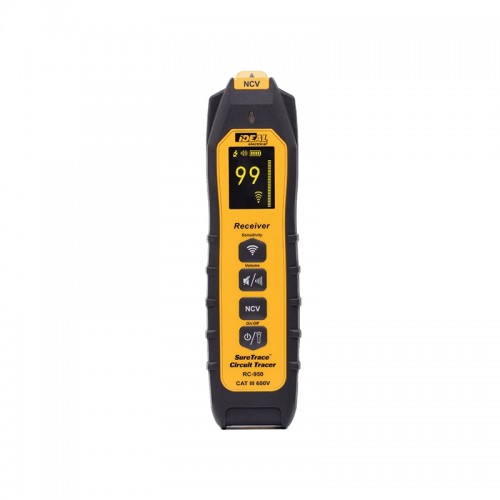

• Built-in work light, non-contact voltage sensor (40V to 600V AC), mute function & four sensitivity settings.

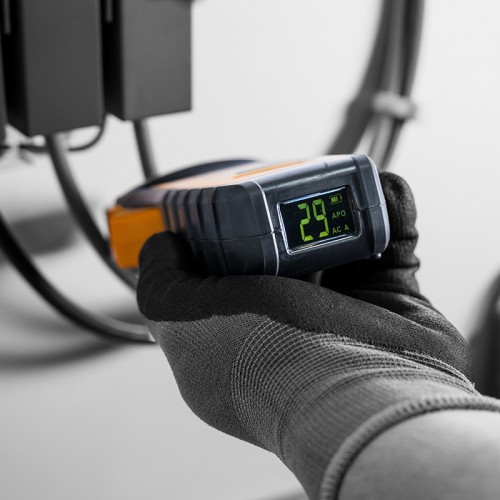

• Dual high-visibility displays with 90° rotation, including TightSight®, for easy reading in tight spaces and awkward angles.
• Patent-pending built-in continuity test in transmitter, eliminates the need for a second tester when searching for wiring faults (shorts).
• Indicates eight voltage levels between 24 - 600 V AC & 12 - 600 V DC as well as DC polarity.
• Durable, jobsite ready design with over moulded grip and 2m drop protection.
• Transmitter features integrated kickstand and hanging clip compatibility (strap sold separately).

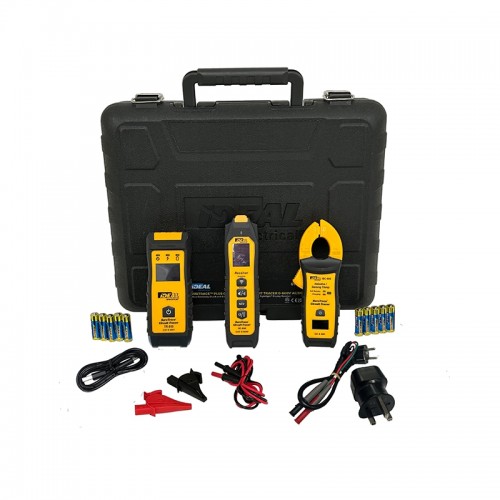

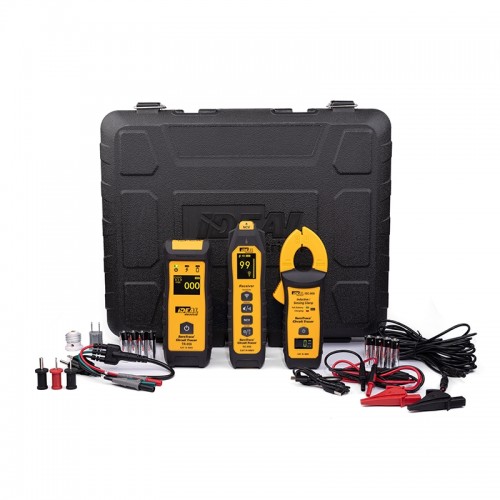

• Supplied with: SureTrace Pro transmitter and receiver; SureTrace Inductive/Sensing Clamp; Lead Set; USB A-USB C Charging Cable, moulded hard case, instruction manual, and 10 AA batteries.
