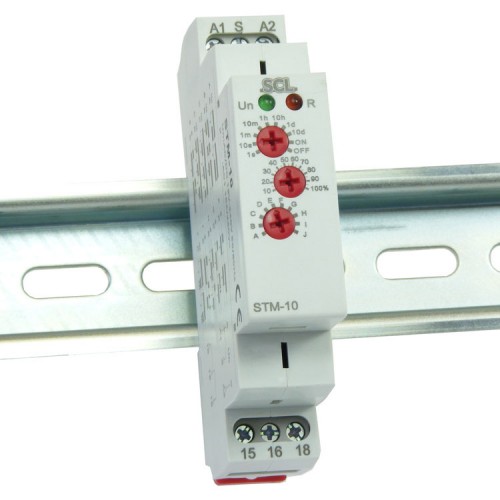

Multi-function DIN rail timer relay with 10 functions, 10 time ranges and a slim 17.5mm / 1 module width. 12-240 VAC/DC universal supply voltage.

Features

• 12-240 VAC/DC universal supply voltage
• Includes 10 functions:
• 5 time functions controlled by supply voltage
• 4 time functions controlled by control input
• 1 function of memory (latching) relay
• Time scale divided in to 10 ranges from 0.1s to 10 days
• Output contact 1 changeover 16A
• Output indication, multi-function red LED
• 1 module DIN rail mounting

Technical Specifications

• Cable Size, Solid (mm2): 2.5mm/ CRIMPED TERMINALS 1.5mm
• Mechanical Life: 3x10^7
• Ingress Protection: IP40
• Dimensions (mm): 90 x 17.6 x 64
• Voltage: 12-240 VAC/DC
• Cable Size, Flexible (mm2): 2.5mm/ CRIMPED TERMINALS 1.5mm
• Approvals: EN61812-1, EN61010-1, CE, cULus
• Operating Temperature: -20°C to +55°C
• Amperage: Rated Current - 16A
• Colour: Grey
• Contact Arangement: 1 x CHANGEOVER (AgNi)
