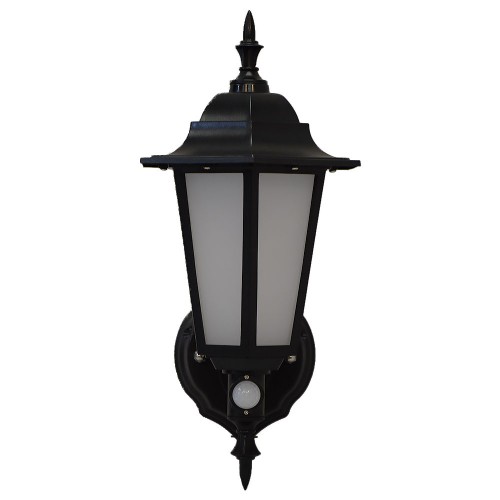

Meridian LAN7LED/PIR - 7W LED Lantern + Integrated PIR Sensor (Black Polycarbonate)

The LAN7LED/PIR is a Meridian 7W LED lantern composed of black polycarbonate, complete with an average lamp life of 30,000 hours.

This product is suitable for commercial & domestic environments and has an IP44 protection rating.

This model (LAN7LED/PIR) comes with an integrated PIR sensor for motion detection.


Technical Features Include -

  • Protection Level (IP) - IP44
  • Operating Voltage (V) - 240V AC - 50Hz
  • Wattage (W) - 7W
  • Lumens - 500
  • LED Type / Chip - Epistar 3528 (SMD 14 pcs)
  • Constant Current LED Driver - Primary 240V AC/Sec 350mA Max DC 26V


Other Features Include -

  • Dimensions - 383mm x 200mm x 214mm
  • Materials / Finish - Polycarbonate / Black Body
  • Average Lamp Life - 30,000 Hours
  • BS EN 60-598-1
  • Class II
  • CE, SELV, RohS, ENC WEEE Etc
  • 2 Years Guarantee!


Details
Materials / FinishPolycarbonate / Black Body
Dimensions
Dimensions383mm x 200mm x 214mm
Electrical Data
Energy Efficiency RatingA
Operating Voltage240V
Lighting Specifications
Beam / Angle (°)120°
Colour (k)4000k
Colour Rendering Index (CRI)70
LED Type / ChipSMD
Lighting TypeLantern
Lumens500
Wattage (W)7.0
Technical
Protection Level (IP)IP44
