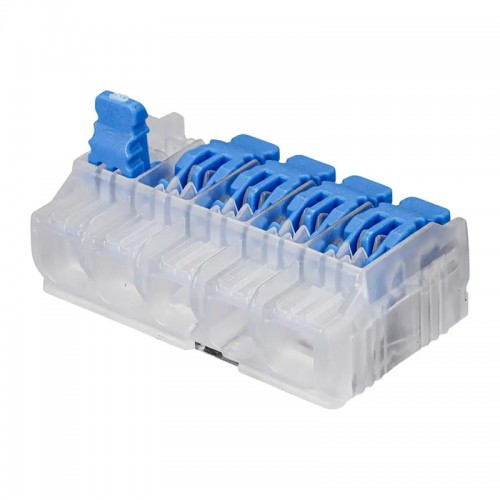

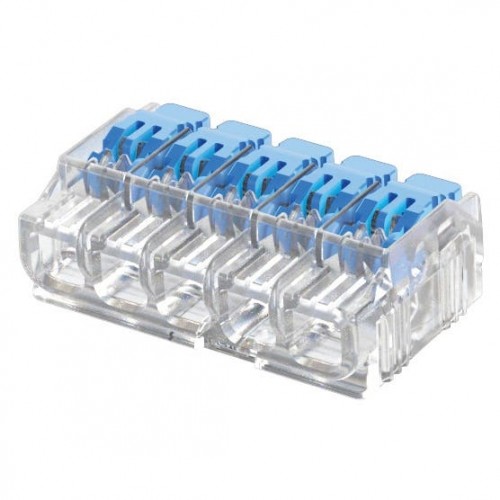

The IDEAL 30-0095 L5 provides five connection ports within a compact housing, offering a convenient solution for multi-wire electrical terminations. Suitable for solid, stranded and flexible conductors up to 4mm², the connector features reusable operating levers and a transparent body for straightforward installation and visual inspection.
Key Features
- The IDEAL lever wire connector can quickly and securely join solid, stranded, and flexible wires.
- Wire Range: solid and rigid stranded wires (7 strands) - 0.2 mm2 to 4.0 mm2; flexible wires - 0.14 mm2 to 4.0 mm2 (24 - 12 AWG).
- High quality, secure connections.
- Clear shell allows verification of connection.
- Ergonomic design for easy grip and comfort.
- Reusable for solid and stranded wire.
- Solid wires can be easily inserted without opening lever.
- Continuity test port.
- Colour coded for easy identification.
- Conform to BS 7671:2018 (18th Edition), IEC 60998 and UL 486C compliant.
- CE, UKCA, UL and ENEC approved.
Manuals & Datasheets
Technical
| Specifications | |
|---|---|
| Manufacturer | Ideal Industries |
| Pack Size | 30 |
| Number of Ports | 5 |
| Standards/Certifications | BS 7671:2018 (18th Edition), IEC 60998 and UL 486C compliant |
| Wire Clamping Range | 0.14mm² - 4.0mm² |
| Maximum Operating Temperature | 105 °C |
| Maximum Rated Voltage | 600 V |
| Weight | 0.178 kg |
| Packaged Weight | 0.178 kg |
