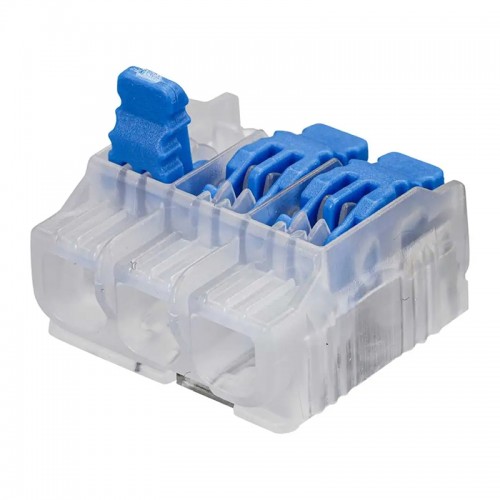

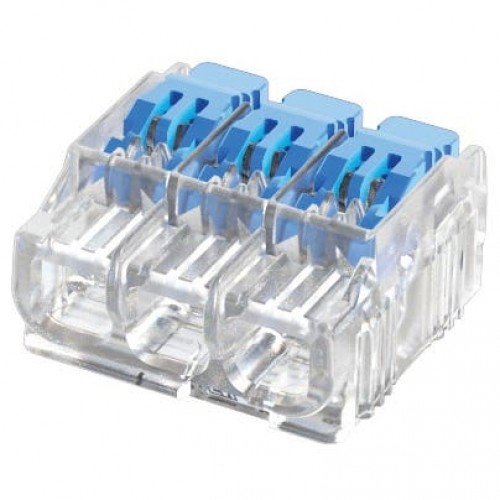

The IDEAL 30-0093 L3 is a versatile 3-port lever connector for joining solid, stranded and flexible conductors in professional electrical installations. Its compact, reusable design supports quick, tool-free termination, with a clear housing and continuity test port helping installers verify and test each connection.

Key Features

• The IDEAL lever wire connector can quickly and securely join solid, stranded, and flexible wires.
• Wire Range: solid and rigid stranded wires (7 strands) - 0.2 mm2 to 4.0 mm2; flexible wires - 0.14 mm2 to 4.0 mm2 (24 - 12 AWG).
• High quality, secure connections.
• Clear shell allows verification of connection.
• Ergonomic design for easy grip and comfort.
• Reusable for solid and stranded wire.
• Solid wires can be easily inserted without opening lever.
• Continuity test port.
• Colour coded for easy identification.
• Conform to BS 7671:2018 (18th Edition), IEC 60998 and UL 486C compliant.
• CE, UKCA, UL and ENEC approved.

Manuals & Datasheets

• Datasheet

Technical
