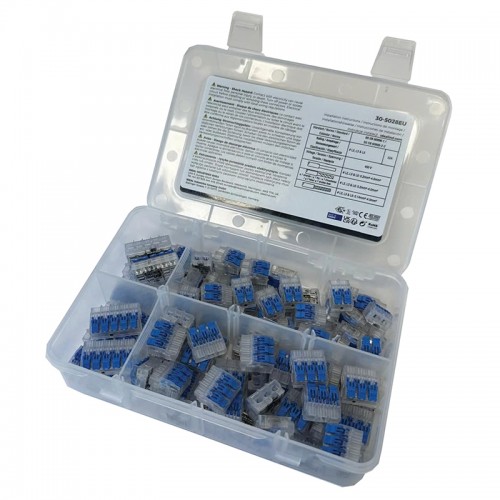

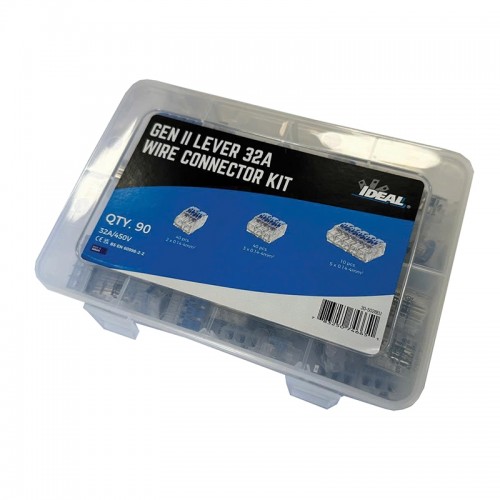

The IDEAL 30-5028EU is a practical 90-piece lever connector kit designed for electricians, installers and maintenance professionals. Its selection of reusable connectors supports quick and consistent wire termination, while the compartmented storage case keeps each connector type organised and ready for use.

Key Features

• Easy to use: no need to lift the levers when using on solid wire
• Secure your cables in seconds: no screwdriwer, no crimping, just strip, push, connect
• Releasable connector: for solid, stranded and flexible wires
• Innovative levers: opens in the opposite direction of insertion points to avoid accidental loosening or pull out
• Compact design: suits tight spaces
• Continuity check port: for testing
• Clear window: allows for verification of connection
• Strip Length: 11-12 mm | 0.45″ Wire clamping range: 0.2 mm2 to 4.0 mm2 (24 - 12 AWG) for solid and rigid stranded wires (7 strands) 0.14 mm2 to 4.0 mm2 (24 - 12 AWG) for flexible wires Ratings: IEC 60998: 32A | 450V | 85° C (ambient) UL 486C: 20A |600V | 105° C (working)
• BS 7671:2018 (18th Edition), IEC 60998 and UL 486C compliant
• CE, UKCA, UL and ENEC approved

Kit Contents

• 40 x 32A 2-port Lever Wire Connectors
• 40 x 32A 3-port Lever Wire Connectors
• 10 x 32A 5-port Lever Wire Connectors
